(11) Setting Support Function
It helps to confirm in what number of PIO pattern the mode that was set in the Gateway Parameter Setting Tool should
be set on the used controller.

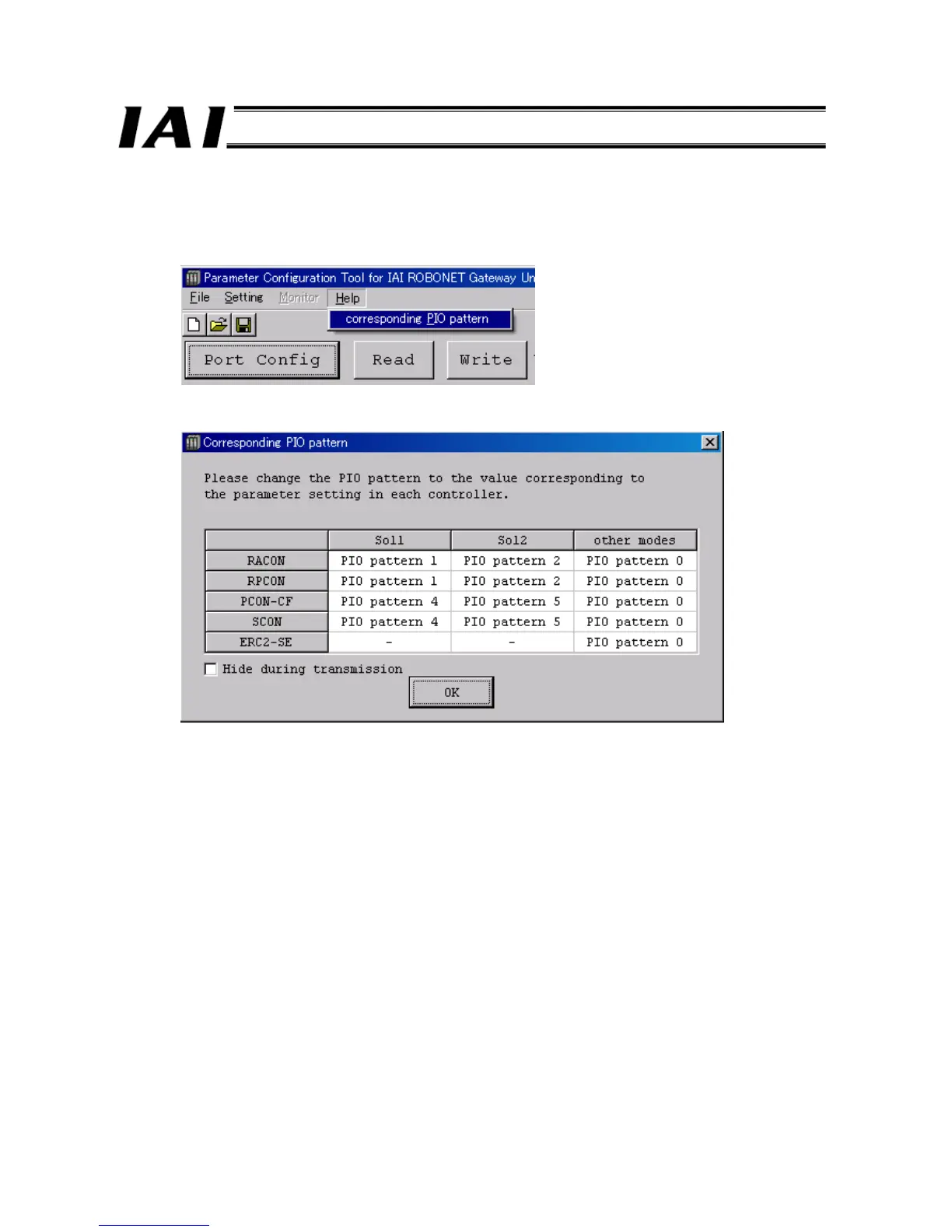

[1] Select “help” from the menu in the main window of the ROBONET Gateway Parameter Setting Tool, then select
“PIO pattern for each mode”.
[2] Match the PIO pattern (set by parameters) of the used controller to the mode that was already set.
This window will show up also when a transfer operation is executed.
If “Do not display this window at the transfer” box at the bottom left is checked, the window will not show up any
more.
