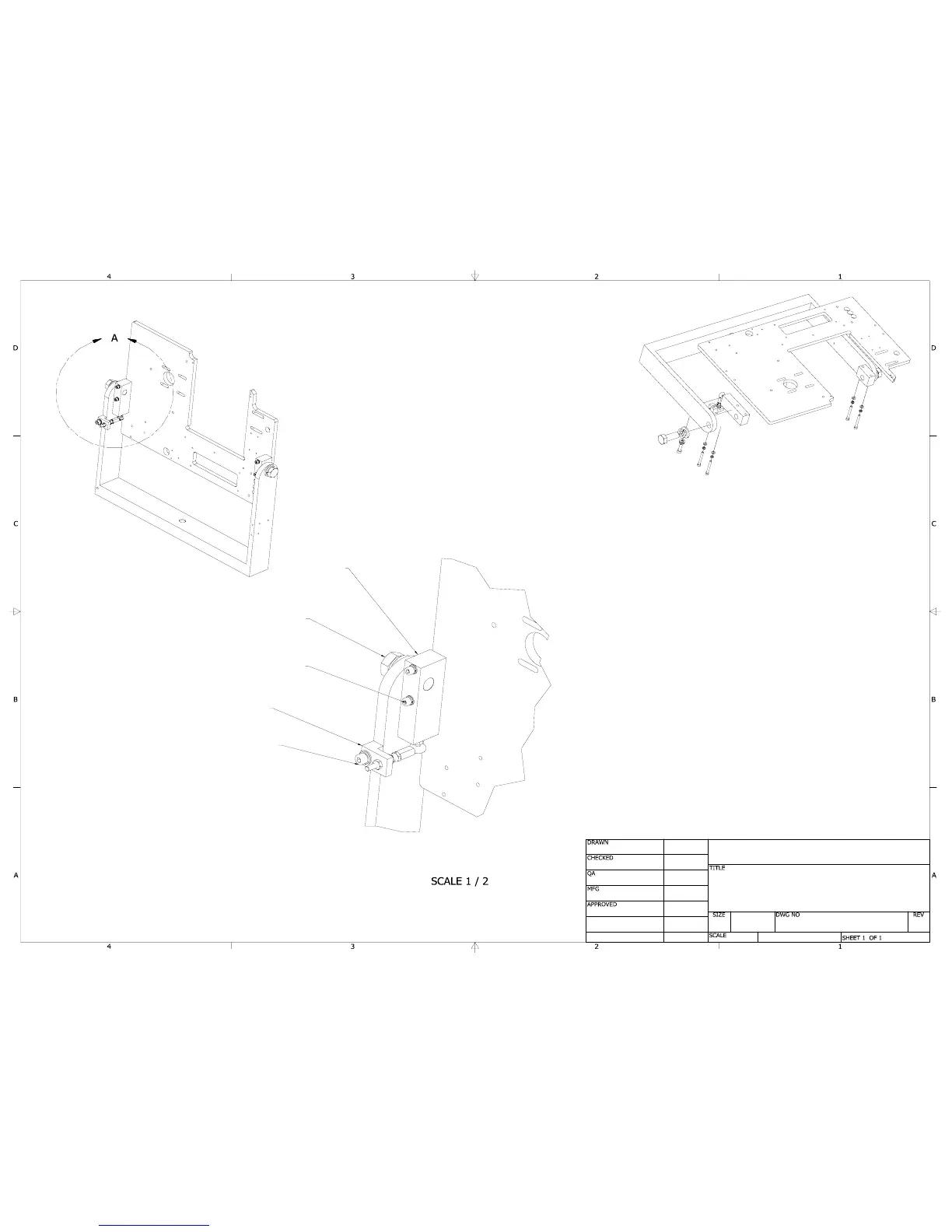

TS9100 Installation
C
DETAIL A
ID TECHNOLOGY
PRECISION LEVELING
ASSEMBLY
TS9100
M20 HEX HEAD BOLT
M6 SOCKET HEAD CAP SCREW
M8 SOCKET HEAD CAP SCREW
INSTALLATION INSTRUCTIONS
1. REMOVE THE M20 HEX HEAD BOLT.
2. REMOVE THE TWO M6 SOCKET HEAD CAP SCREWS.
3. PLACE THE TS9100 IN POSITION USING THE M20
HEX HEAD BOLT AND THE TWO M6 SOCKET HEAD CAP SCREWS.
4. FASTEN THE LEVELING BRACKET TO THE U-ARM WITH M8
SOCKET HEAD CAP SCREW.
LEVELING BRACKET
