Model 250
Printer Applicator
Operators/Technical Manual Section Six
Section 6 Page 3 of 20

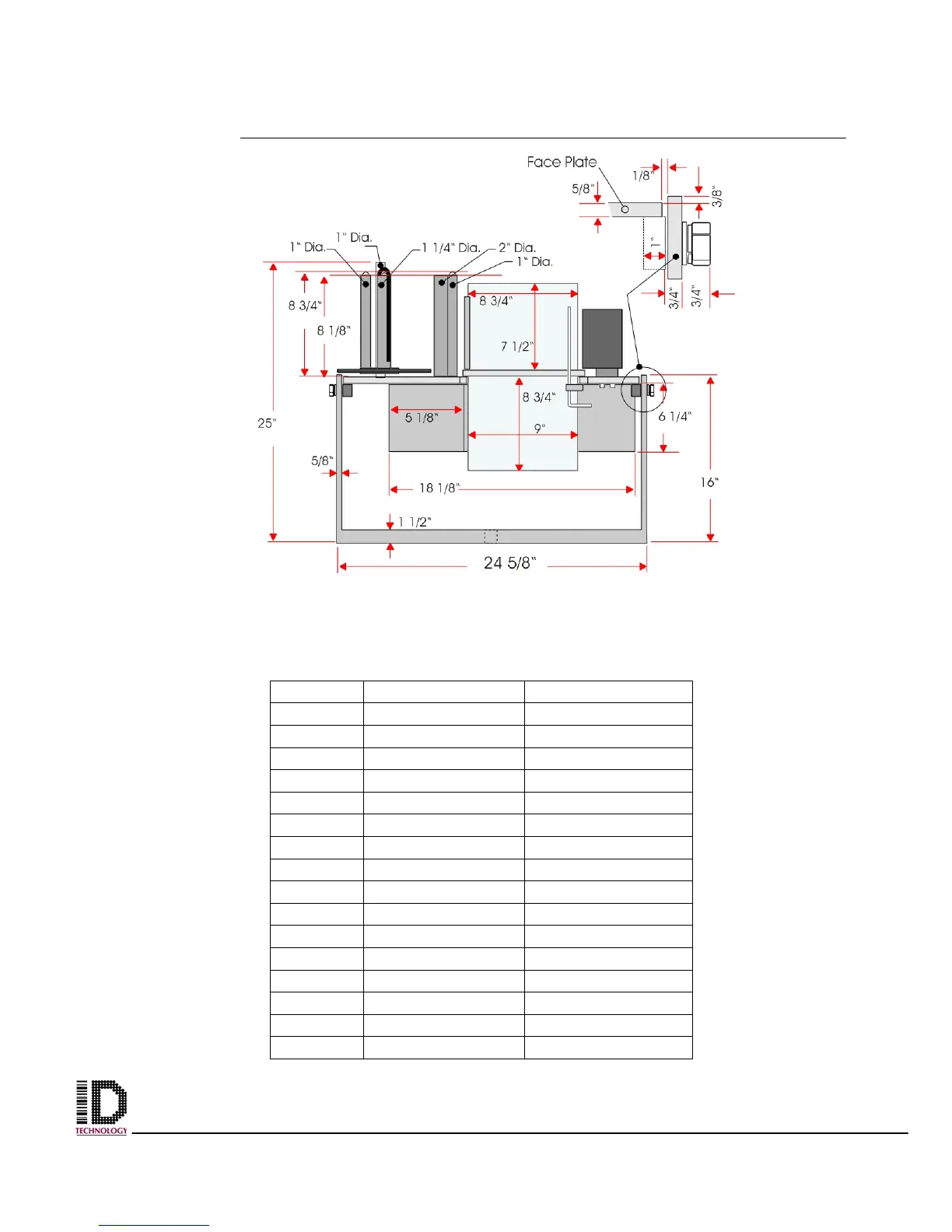

Bottom View with SATO 8485SE Installed
250 Pin out for the 16-Pin Status Output connector
Pin Nomenclature Normal Status
1 Output 2 Open
2 Output 2 Closed
3 Output 2 Common
4 Output 3 Open
5 Output 3 Closed
6 Output 3 Common
10 Output 4 Open
11 Output 4 Closed
12 Output 4 Common
7 Output 1 Open
8 Output 1 Closed
9 No connection Future Upgrades
13 No connection Future Upgrades
14 No connection Future Upgrades
15 No connection Future Upgrades
16 No connection Future Upgrades
