Model 250
Printer Applicator
Operators/Technical Manual Section 3A
Section 3A Page 6 of 9

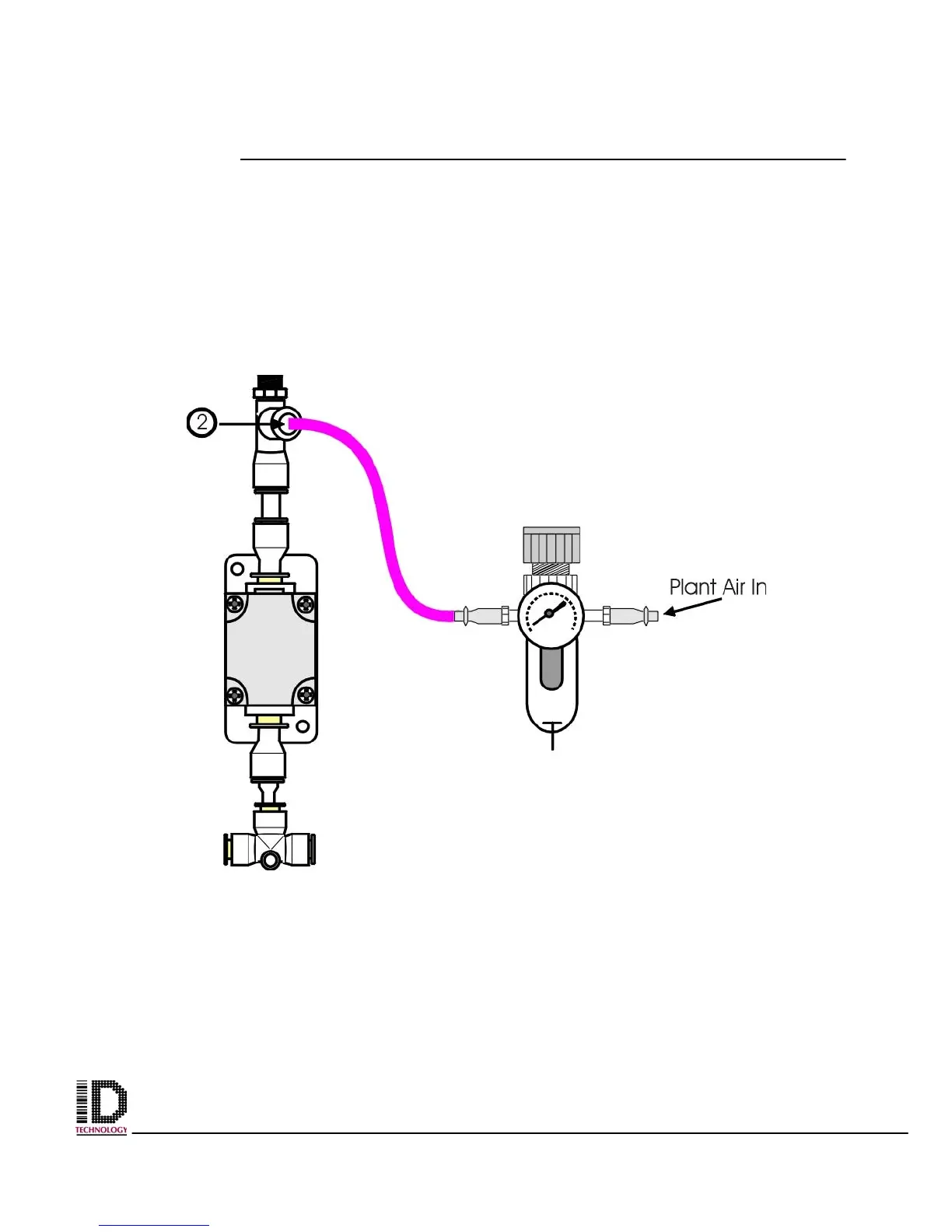

Figure 3A-10 Plant air to Air Filter to tamp-jet module plumbing
Connect the air tubing from the out feed side of the air filter to the Male run Tee fitting on
the tamp-jet module. As shown in Figure 3A-10. These are one touch air fittings,
therefore all you have to do is insert the tube into the fitting until you feel it stop. The
tubing is locked into place. To remove the tubing you depress the collar around the
opening of the fitting and pull tube out.
