ID Technology 250 - Rewind Module; Rewind Module Parts Identification

Model 250
Printer Applicator
Operators/Technical Manual Section Two
Section 2 Page 7 of 14
Rewind Module
Table 2-5 Rewind Module Parts Identification
Reference
Number Part Name / Function
Reference
Number Part Name / Function
1 Rewind Motor 2 Rewind Motor Pulley Shaft
3 Rewind Shaft Mounting Block 4 Rewind Motor Mounting Bolts
5 Face Plate 6 Rewind Flange Shaft Mnting Bolt
7 Rewind Flange 8 Rewind Shaft
9 Waste Take Up Retention Pin 10 Rewind Pulley Belt
11 Rewind Motor Pulley 12 Rewind Flange Pulley
13 Unwind Idler Roller 14 Idler Roller to Printer
15 Web Path into Printer 16 Web Path out of printer to Waste
Rewind Flange
17 Rewind Motor Pulley Adjustment Holes

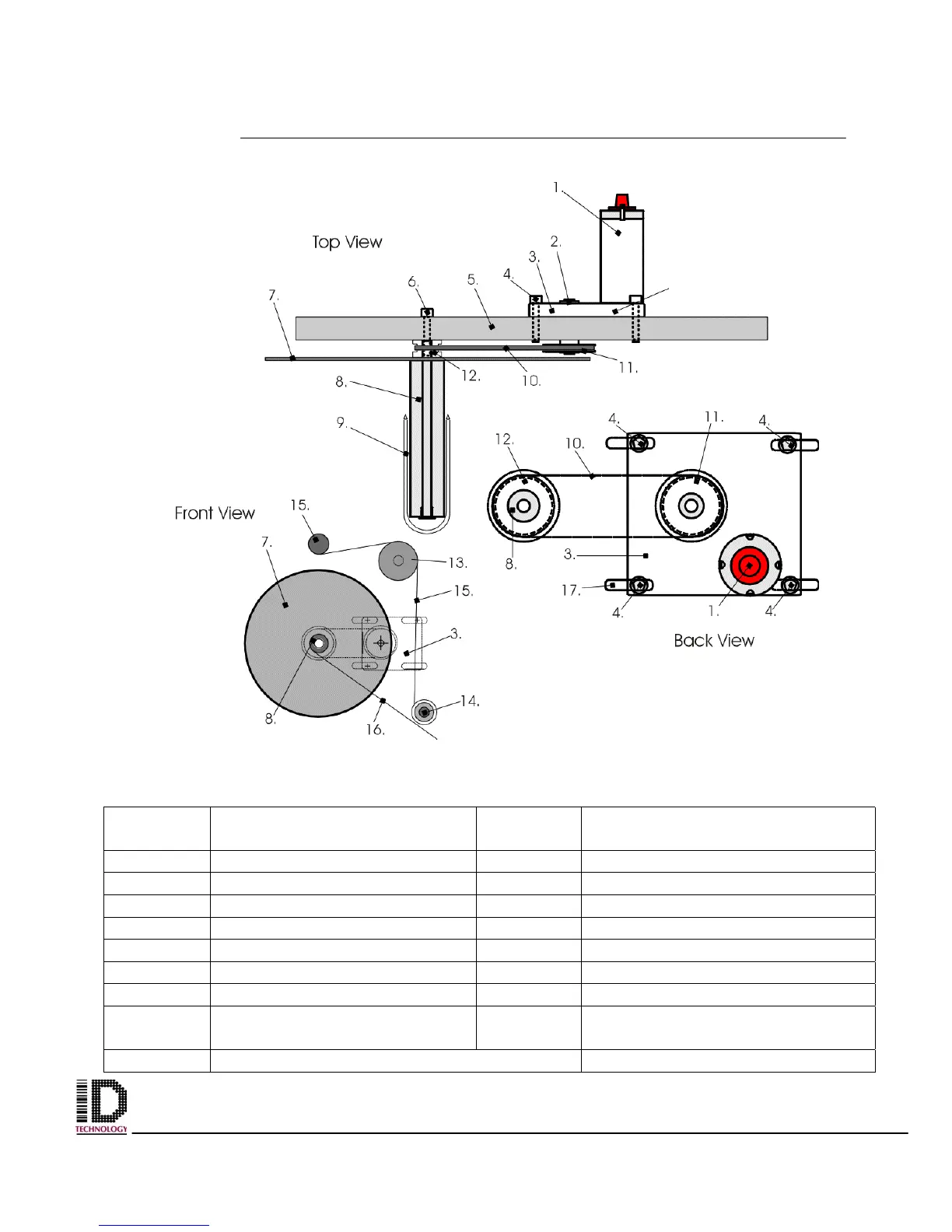

Figure 2-6 Rewind Module
