ID Technology 250 - Plumbing from Tamp Module to Pneumatic Block and Tamp Pad

Model 250
Printer Applicator
Operators/Technical Manual Section 3A
Section 3A Page 7 of 9

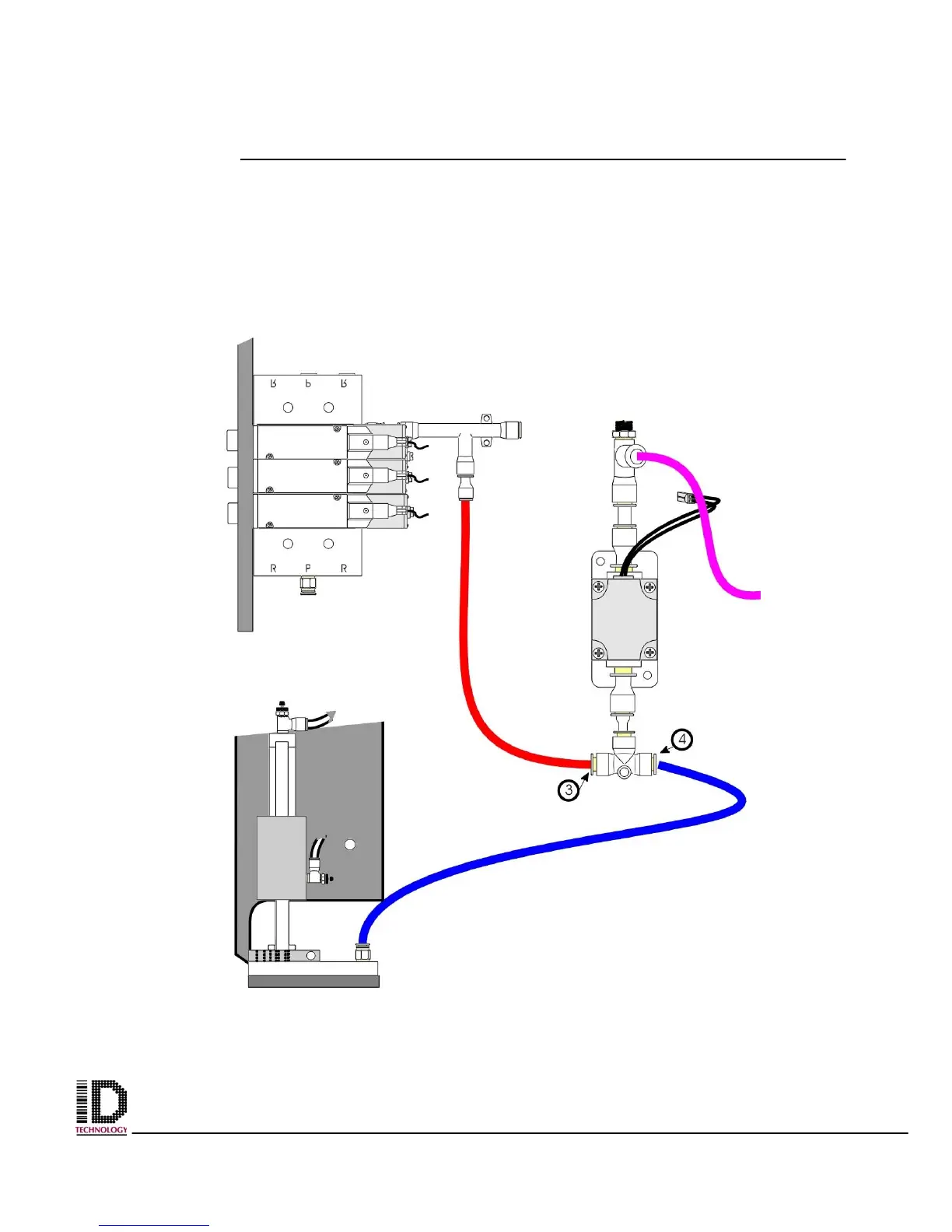

Figure 3A-11 Plumbing from Tamp Module to pneumatic block and tamp pad.
Connect the air tubing from the tampjet module Union Tee (#3) to the Venturi transducer
Tee fitting coming out of the pneumatic manifold block Illustrated in Figure 3A-11 below.
Connect the air tubing from the union Tee fitting of the tamp-jet module (#4) to the top of
the tamp pad. Shown in Figure 3A-11 below. Ensure you run the air tubing through the
same hole in the face plate as the orginal tubing was run.
