Model 250
Printer Applicator
Operators/Technical Manual Section 3A
Section 3A Page 8 of 9

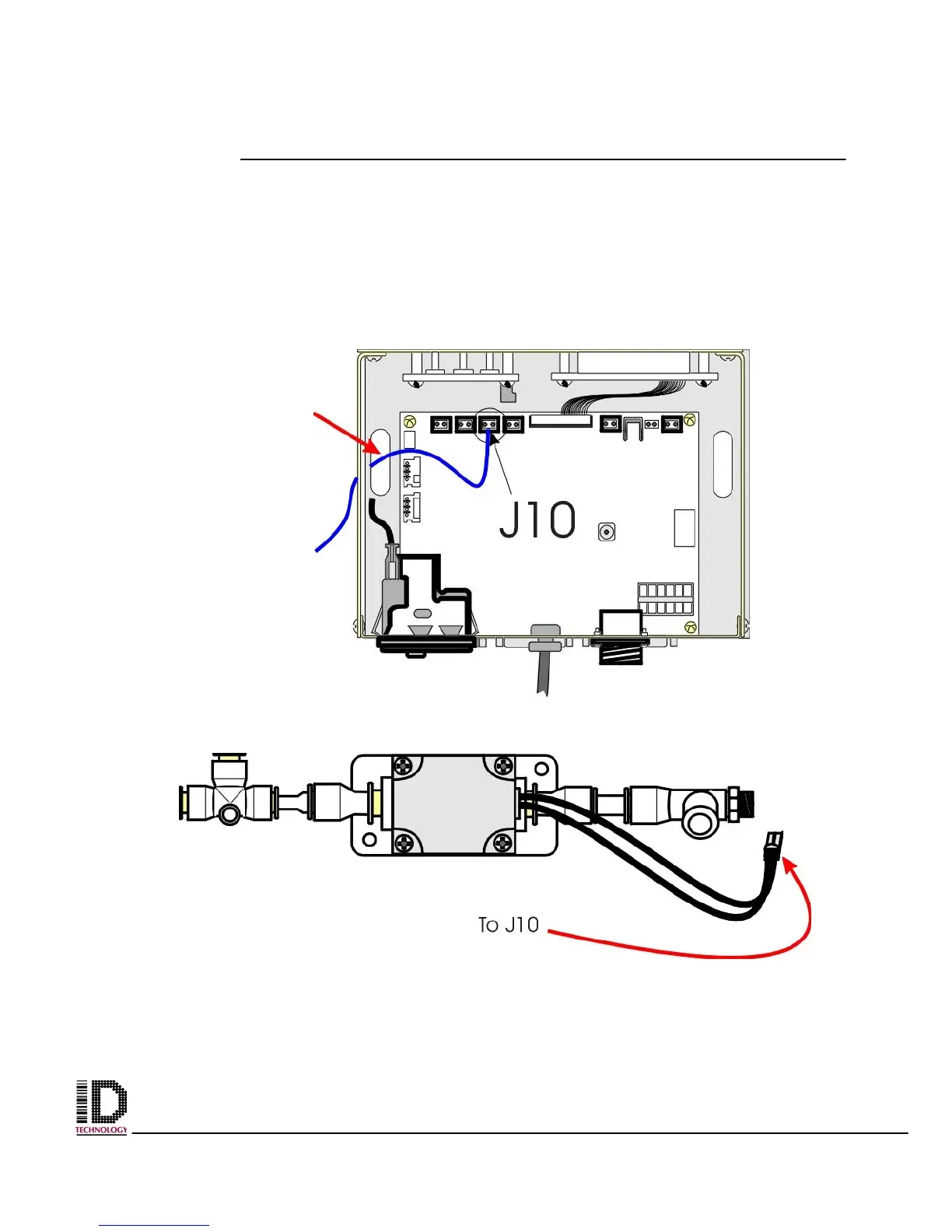

Figure 3A-12 Electrical connection of tamp-jet module to
electronics module on the applicator.
Connect the electrical plug from the tamp module to the electronic module of the
applicator. Run the wire up through the bottom of the electronics module as shown in the
figure below. (Arrow shows the knock out on the elctronics module that can be used to
thread the wire through.) The connector goes on pin J10. As illustrated by the blue wire
in figure 3A-12 below.
