ID Technology 250 - T-Base Stand Parts Identification

Model 250
Printer Applicator
Operators/Technical Manual Section Two
Section 2 Page 12 of 14
Table 2-7 T-Base Parts Identification
Reference
Number Part Name / Function
Reference
Number Part Name / Function
1 Raising Crank Handle 2 Vertical Post
3 Applicator Mounting Block 4 Mounting Block Lock Handle
5 Lead Screw Vertical Adjustment 6 Mounting Bolt for U arm
7 Vertical Post Mounting Plate 8 Placement for Plate Bolts
9 Casters 10 Leveling Pads
11 Vertical Adjustment Plate 12 Accessory Bolt Holes

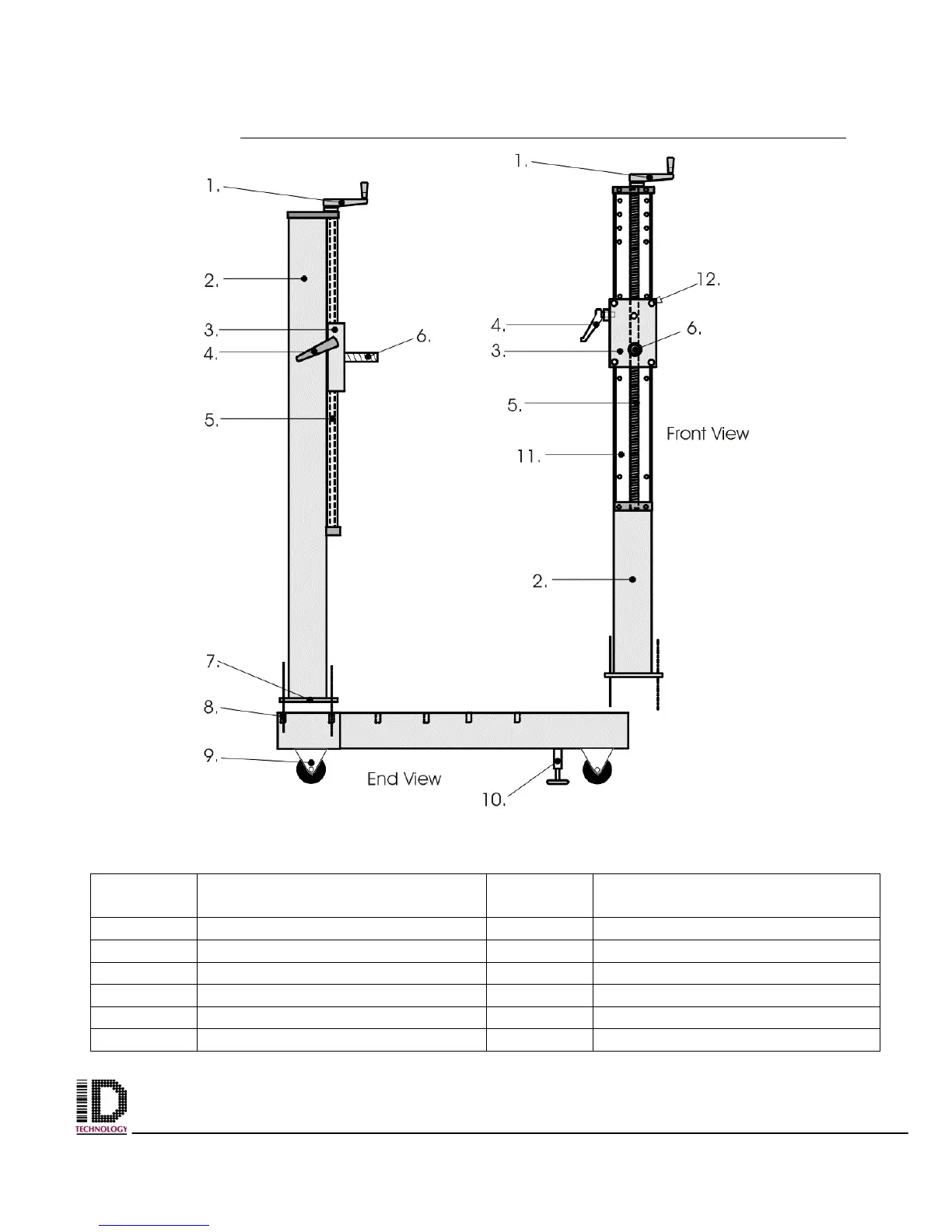

Figure 2-12 T-Base Stand Parts Identification
