ID Technology 250 - T-Base Accessories Identification of Parts

Model 250
Printer Applicator
Operators/Technical Manual Section Two
Section 2 Page 13 of 14
T-Base Accessories Identification of parts
Table 2-8 T Base Accessory Parts Identification
Reference
Number
Part Name or Function
1 Mounts to Vertical
Post, Yard Arm
Mounting Plate
2 Mounting Bolt Holes
3 Yard Arm Weldment
4 U-Arm mounting Bolt
5 Traversing Yard Arm
Crank Handle
6 Mounting Plate
Locking Bolt Handle
7 Traversing Slide
Mounting Plate
8 Traversing Slide Lead
Screw
9 U-Arm Mounting Plate
10 Stationary Weldment
Swivel Mount
11 Vertical Post
Mounting Plate,
Bottom of Vertical
Post Mounts to here
12 Adjustable Column for
Swiveling Height
Adapter
13 Mounting Plate, Bolts
to T-Base Bottom
Weldment
14 Mounting Bolt Holes
for Mounting to T-
Base Bottom
Weldment
15 Precision Slide Base
Lead Screw, for
Horizontal Adjustment
of Vertical Post

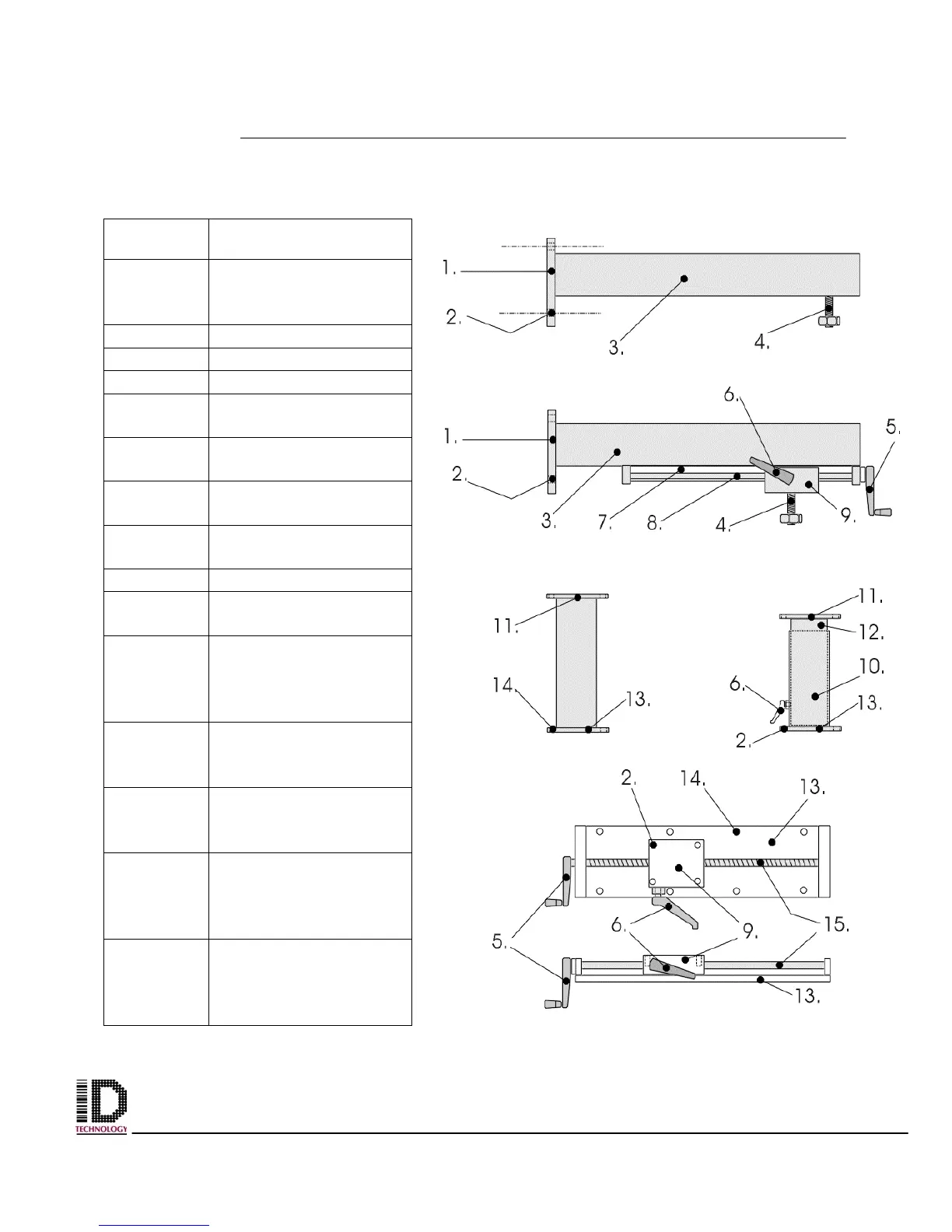

Figure 2-13 T-Base Stand Modules Parts Identification
