ID Technology 250 - Unwind Assembly

Model 250
Printer Applicator
Operators/Technical Manual Section Two
Section 2 Page 6 of 14
Unwind Assembly
Table 2-4 Unwind Assembly
Reference
Number Part Name / Function
Reference
Number Part Name / Function
1 Unwind Shaft 2 Unwind Shaft End View
3 Unwind Shaft Mounting Block 4 Brake Band
5 Spring Mounting Collar 6 Tension Spring Adjustment Arm
7 Tension Spring 8 Dancer Arm Shaft
9 Tension Spring Shaft 10 Unwind Mounting Block Bolts
11 Unwind Hub Decal 12 Face Plate
13 Dancer Arm Mounting Arm 14 Dancer Roller
15 Rewind Motor Mount 16 Rewind Motor
17 Rewind Pulley Sprocket 18 Rewind Pulley Shaft

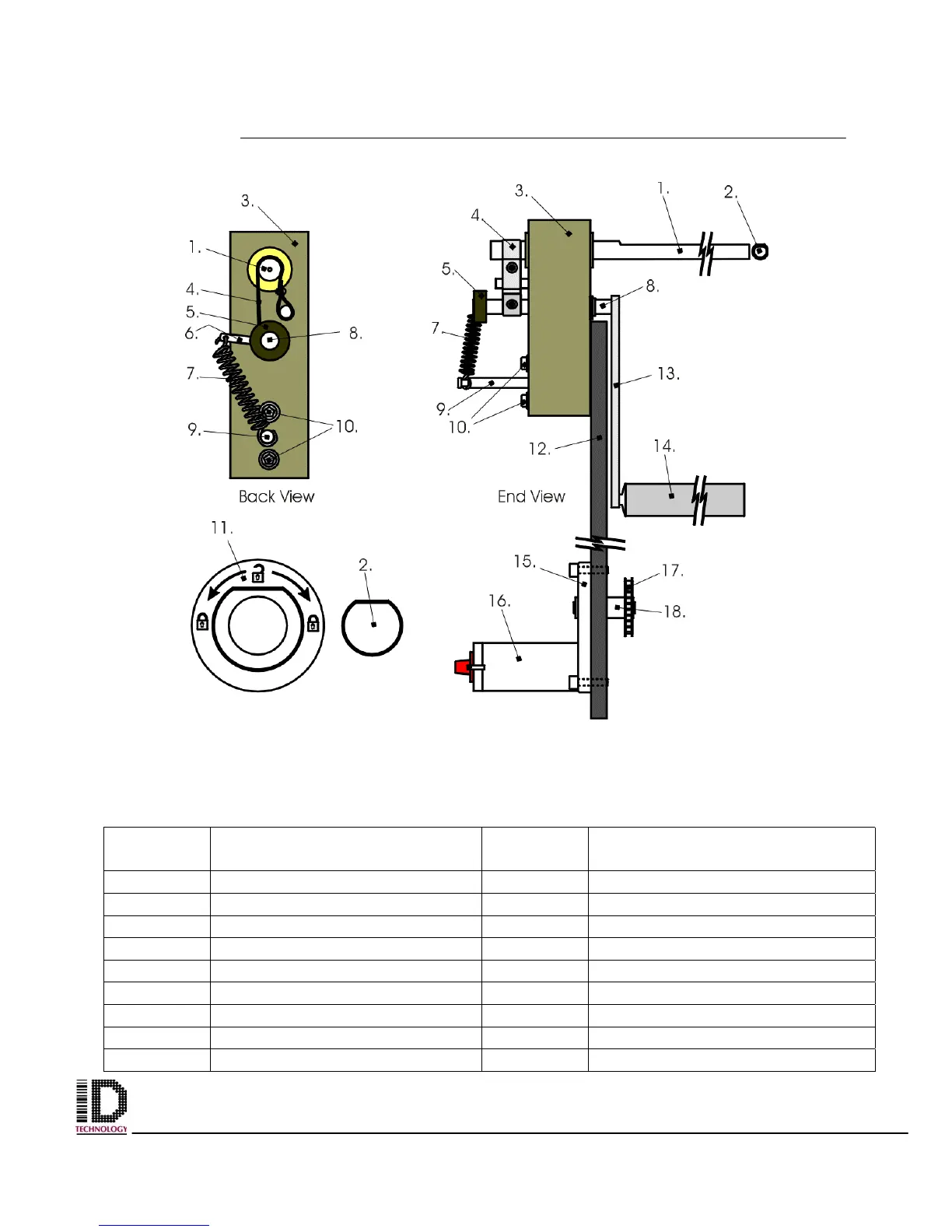

Figure 2-5 Unwind Block Assembly
