ID Technology 250 - 16-Pin Connector on Electronics Module

Model 250
Printer Applicator
Operators/Technical Manual Section Six

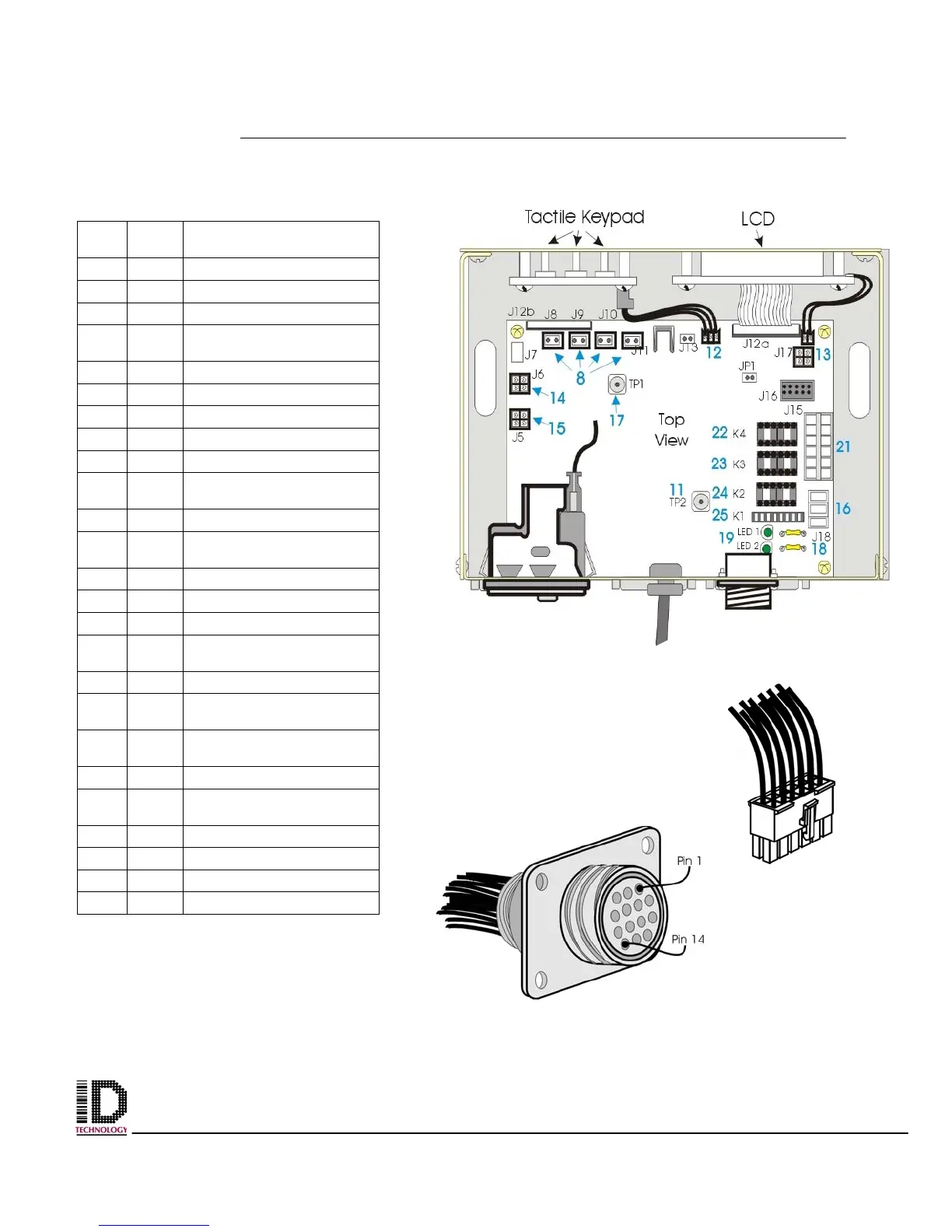

Section 6 Page 4 of 20
J15 Plug
Electronic Module
Ref#
Loc Part Name / Function
1
Power Input Module
2
Power In Cable
3
16-pin Status Output
4
Electronic Module
housing
8
J8 Air (blow on)
8
J9 Tamp (tamp on)
8
J10 Tamp-Jet
8
J11 Vacuum
9
J12 LCD Window
10
Operator Input Function
Keys
11
TP2 GND Connector
12
J13 Connection to Display
Buttons
13
J17 Low Label Conn.
14
J6 Smart Tamp Conn.
15
J5 Tamp Home Conn.
16
J18 5V, GN, 24V input from
Power Supply
17
TP1 GND Connector
18
F1
F2
Plug in fuses
19
LED1
LED2
Fuse blow indicator
20
J14 Rewind Motor
21
J15 Input from 14-pin Status
Output Conn.
22
K4 Relay
23
K3 Relay
24
K2 Relay
25
K1 Solid State Relay
16
-
Pin Connector on electronics module
