Model 250
Printer Applicator
Operators/Technical Manual Section Three
Section 3 Page 4 of 19
The Low Label Sensor, if purchased initially, will be factory installed on the applicator
prior to shipping. If the sensor is purchased as an after-market item, follow the table and
figure below to install the sensor. (also refer to Parts Identification section for placemen
and location of low label sensor on applicators face plate.)
Ref # Part Name or Function
1 Low Label Sensor Body
2 Low Label Sensor wand.
Lays against unwind
reel/labels.
3 Wand mounting bracket
Hex head screw take Allen
Wrench Size 3 mm.
Holds wand in place on
sensor. Loosen to adjust
length of wand.
4 Low Label Sensor wand
mounting bracket. Swivels
to allow wand to ride on
label roll. Micro switch
provides output when level
of label decreases to a
specified diameter.
5 Slot head screw provides
adjustment.
6 Low Label Sensor Mounting
holes. Hex head screws
provided to mount body of
sensor to face plate.
7 Set screw; Allen Wrench
size 2 mm. Mounts wand
bracket to sensor and
allows for adjustment of
micro-switch trigger of label
level.
8 Connections to electrical
module.

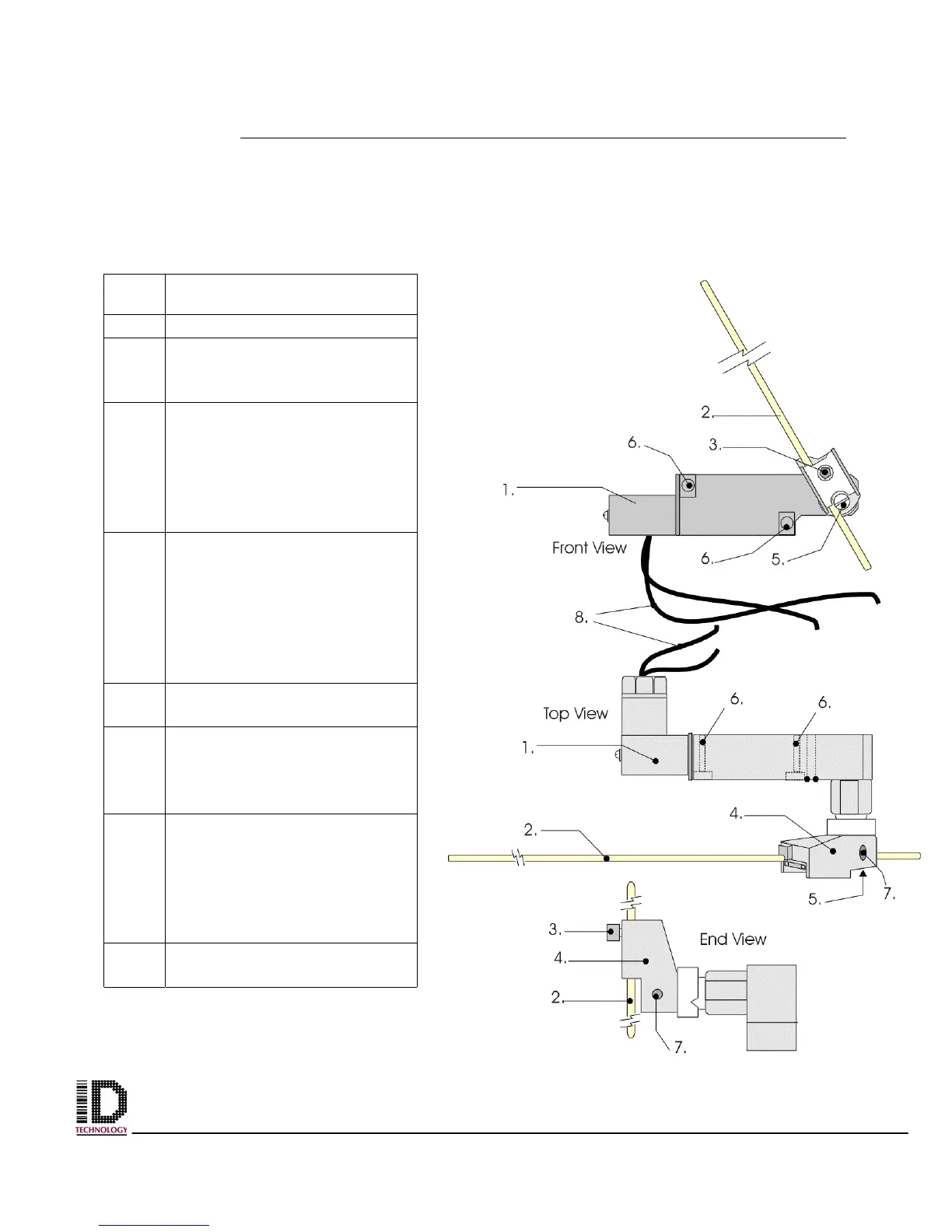

Figure 3-7 Low Label Sensor. Front view at top,
Top view, center, End view at bottom
