Model 250
Printer Applicator
Operators/Technical Manual Section One
Section 1 Page 4 of 5

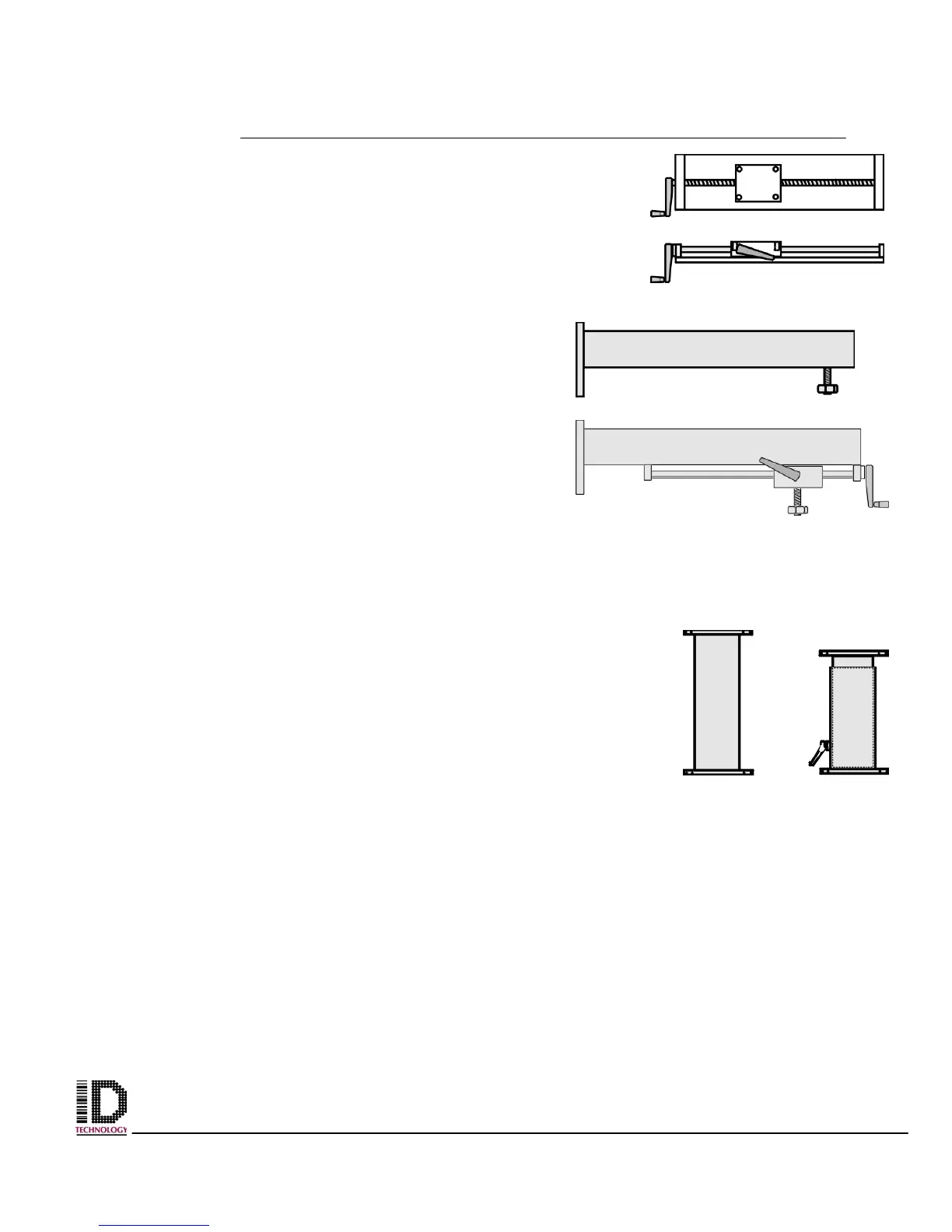

Precision Slide Base: Allows for precise placement of machine
after stand has been locked into location. By rotating the
handle on the lead screw, the applicator and upright mount
slide forward or backwards in smaller increments.
Yard Arm: Comes in a standard length of 36”. The mounting
plate of the yardarm is bolted to the raising mechanism of the
upright mounting column of the stand. The U-arm is bolted to the vertical mounting bolt.
This allows the machine to be suspended over a
production line and/or around an obstruction.
(A precision slide base would be needed to make any
minor adjustments in the horizontal plane.)
The Traversing Yard arm: Comes in a standard length
of 36”. The mounting plate of the yardarm is bolted to
the raising mechanism of the upright mounting column
of the stand. The U-arm is bolted to the vertical
mounting bolt. This allows the machine to be
suspended over a production line and/or around an obstruction.
The traversing yardarm comes with a crank handle that allows the operator to position
the applicator over a production line in any required or desired position. As the crank
handle is rotated, the applicator will adjust in or out on the horizontal plane, relative to the
position of the T-base stand.
If height is a requirement, two optional stands are offered to solve
the different needs.
12” Height Adapter: Increases the overall height of the unit by 12”.
This allows for labeling on production lines that may be set at a
height higher than the normal working level height. More than likely
this is a line that operators are not stationed at to perform a
function. Another reason for the necessity of the height adapter is a production line where
the product is tall and a top apply or high side label is needed.
And…
10” Swivel Adapter: This adapter is very useful when the operator can not feasibly get to
the front of the applicator to make adjustments, printer changes, tamp pad change over
or reload labels. The swivel adapter, along with adding ten inches to the overall height,
allows the operator to loosen the locking bolt and swing the applicator around, away from
the production line. This option makes label loading or other changes easier for the
operators and in many cases safer. (moving production lines)
