Model 250
Printer Applicator
Operators/Technical Manual Section Two
Section 2 Page 10 of 14
Tamp-Jet Module is used to adapt the tamp application mode to a non-contact method of
application. In this mode the cylinder is extended and a blast of air through the tamp pad
propels the label to the surface of the product.
Please see Section 3 A, Installation, to see how the tamp-jet module is installed.

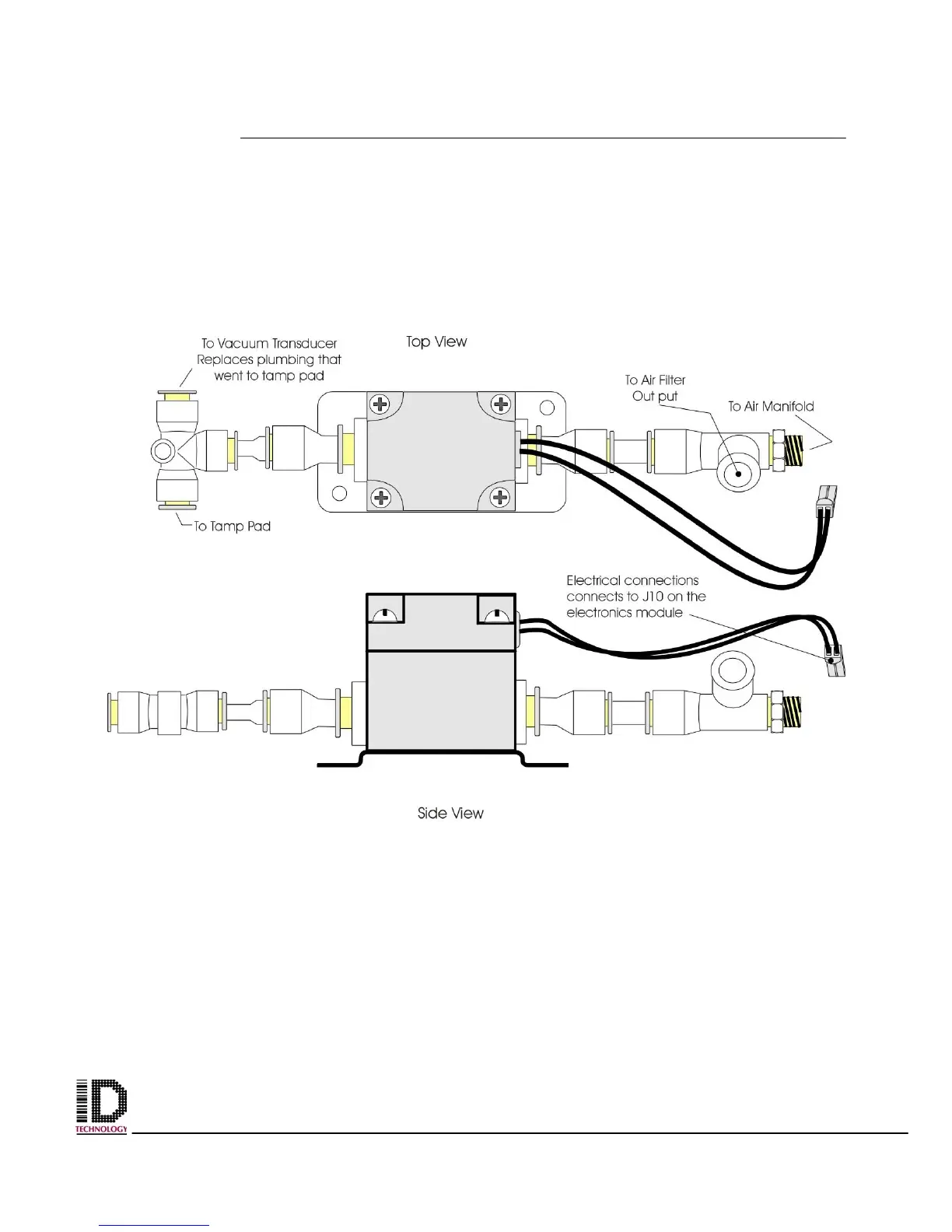

Figure 2-10 Optional Tamp-Jet Module
