ID Technology 250 - Annotated Parts of the Zebra Print Engine. 3 D View; Media Threading through the Print Engine

Model 250
Printer Applicator
Operators/Technical Manual Section Three
Section 3 Page 9 of 19
Media Threading through the Print Engine
After accomplishing the loading of labels on the applicator you can now thread the labels
on the web through the print engine. This is an abbreviated explanation, for a more in
depth procedural description please refer to the print engine manual.

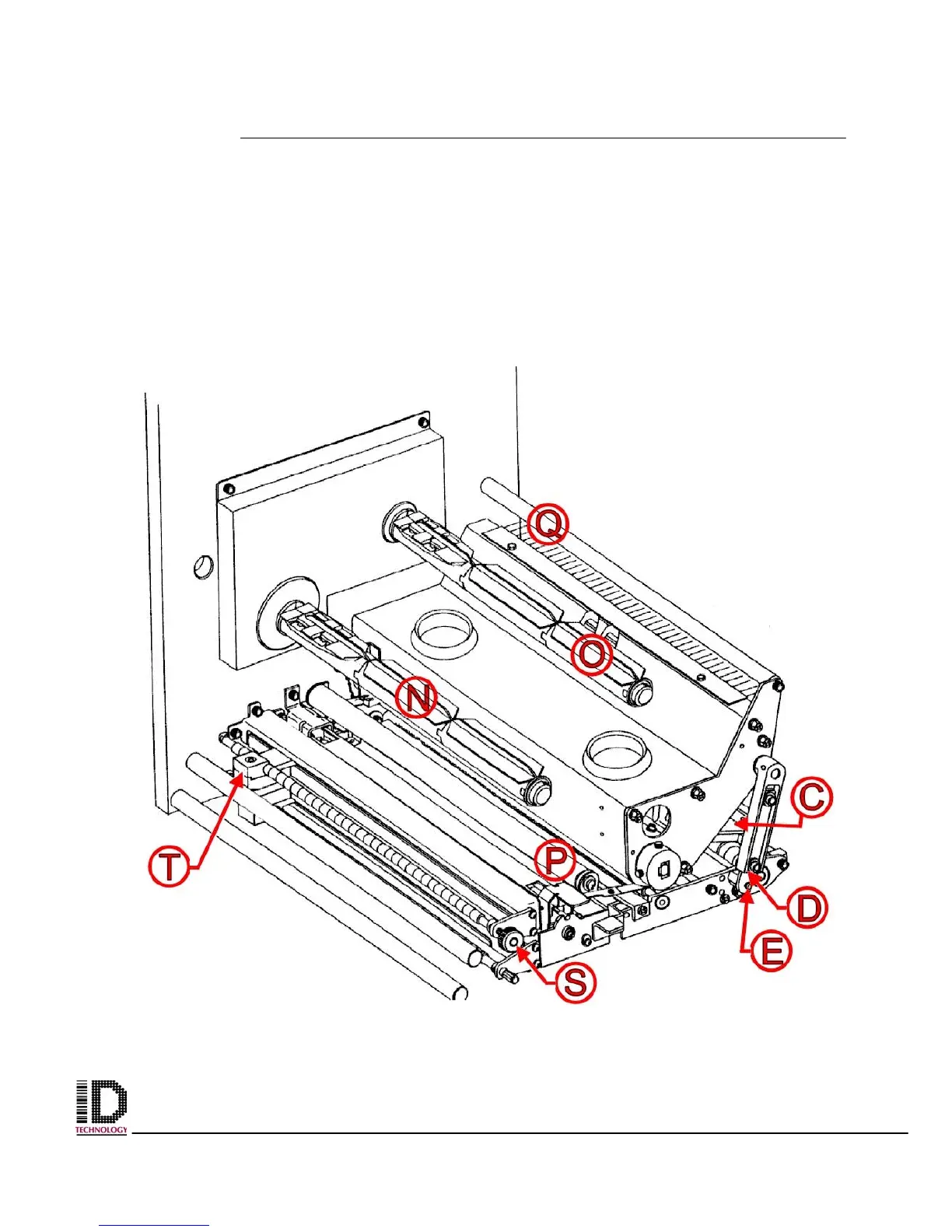

Figure 3-16 Annotated parts of the Zebra Print Engine. 3D view
