ID Technology 250 - Assist Module with Air Assist Tube; Low Label Sensor (Front and Top View)

Model 250
Printer Applicator
Operators/Technical Manual Section Two
Section 2 Page 9 of 14
Air Assist
Bracket
Air Assist
Bracket
Bolt
¼ urethane tubing
Metal Fluted
Tube
Low Label Wand
Wand Bracket Plate
Connection Wires
to J13 in electronics
module.
Front View
Top View
Face Plate
Mounting Holes
Air Assist Tube Module
attaches to the
faceplate and can be
adjusted to each label
size and material.
Low Label Sensor used for operator notification of low material condition.

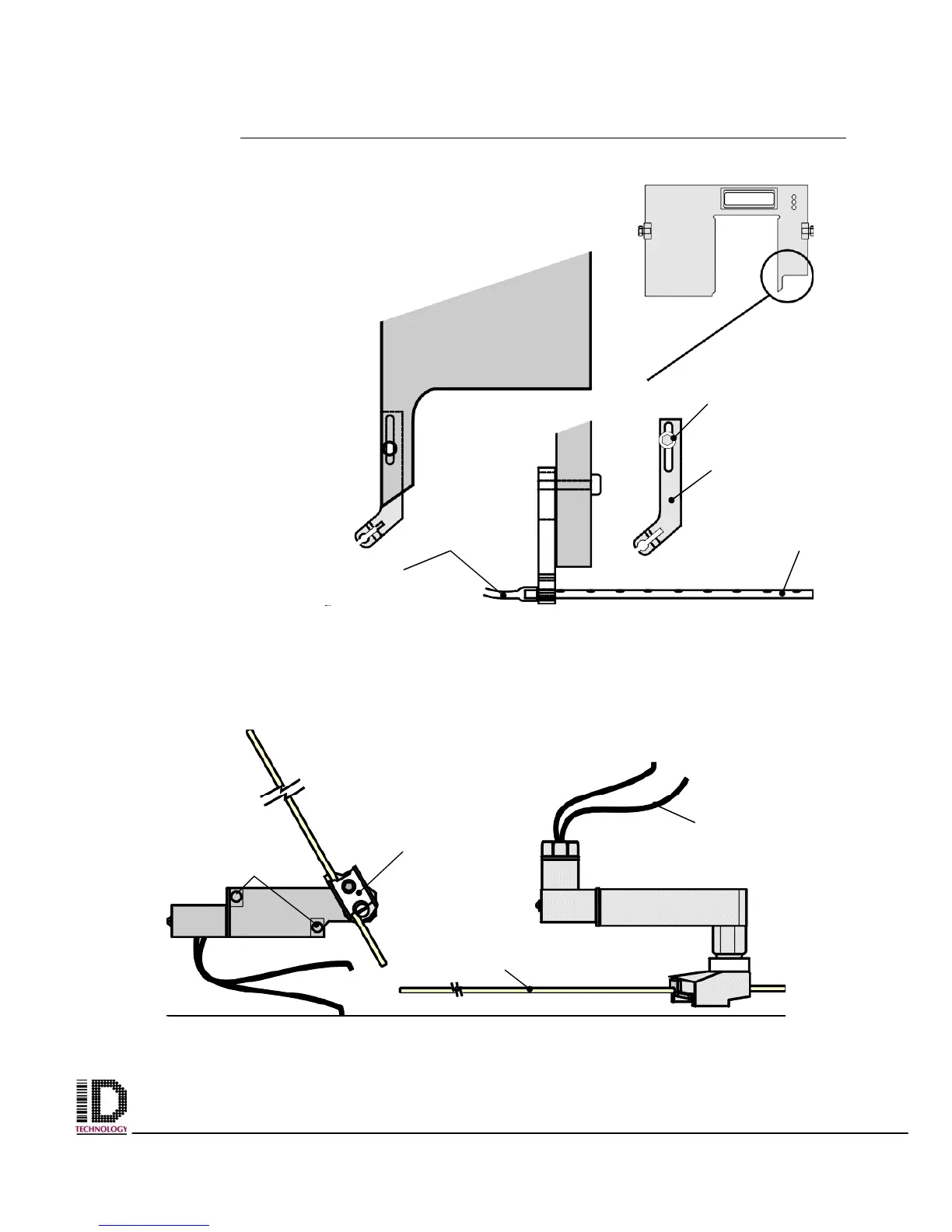

Figure 2-8 Assist Module with Air Assist Tube
Figure 2-9 Low Label Sensor (Front and Top View)
