Model 250
Printer Applicator
Operators/Technical Manual Section One
Section 1 Page 2 of 5
1.3 Weight
75 lbs.
1.4 Electrical
110 to240 VAC, 50-60 Hz input power
5 Vdc for control level, 24Vdc for power
functions(i.e.; solenoids, externals lamps)

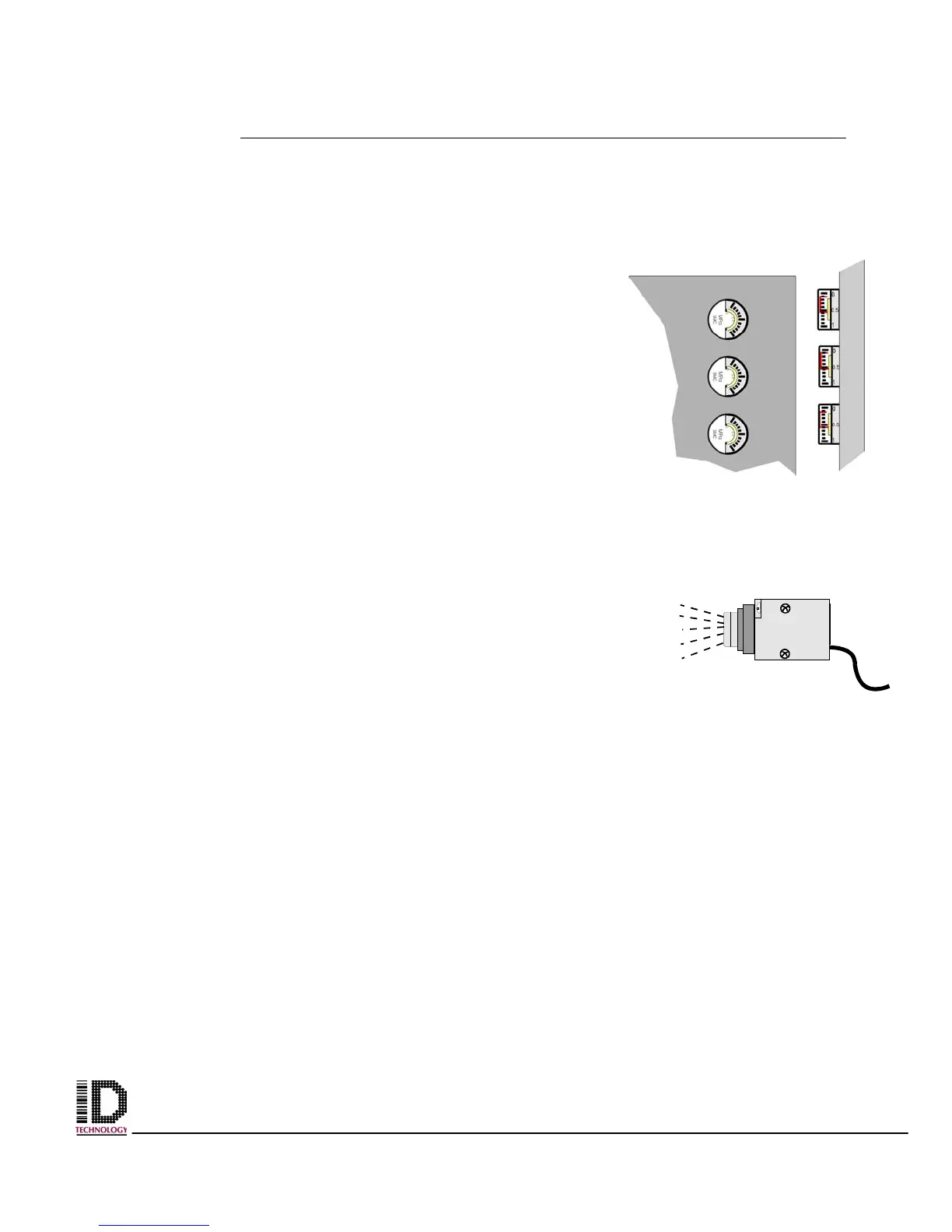

1.5 Air Requirements
Clean dry air at 80 psi minimum to 120 psi
dependent upon the application method and
rate. (approximately 6.1 bar)
• The supply pressure must always be
greater than the highest pressure being
used on the applicator
• The applicator has a filter drain on the plant infeed supply. To ensure
reduced maintenance time, a pre filter upstream is recommended.
1.6 Product Sensing
Product Detectors sense the product and send a
signal to the applicator to commence the labeling
cycle. The detector is generally mounted in the
desired location on the conveyor to trigger the
applicator. To assist in the detection and labeling process, delays can be
introduced in fine tuning label placement
1.7 Label Roll Size
12.5” (OD) X 3” (ID)
1.8 Label Style
Die cut, waste removed, outside wound, with 1/8” minimum gap in the
running direction.
1.9 Standard Label Size
6.6” X 7.2” Maximum
1” X 2.5” Minimum
1.10 Environmental Requirements
Operating;
Room Temperature Range:
Humidity (non-condensing):
