AFL-xxx-9103 Panel PC
Page 112
LVDS Panel Type
The LVDS Panel Type setting chooses the type of display. Options are shown below.
800 x 600
1024 x 768
1280 x 1024
1600 x 1200
1400 x 1050
H/W JUMP SETTING D
EFAULT

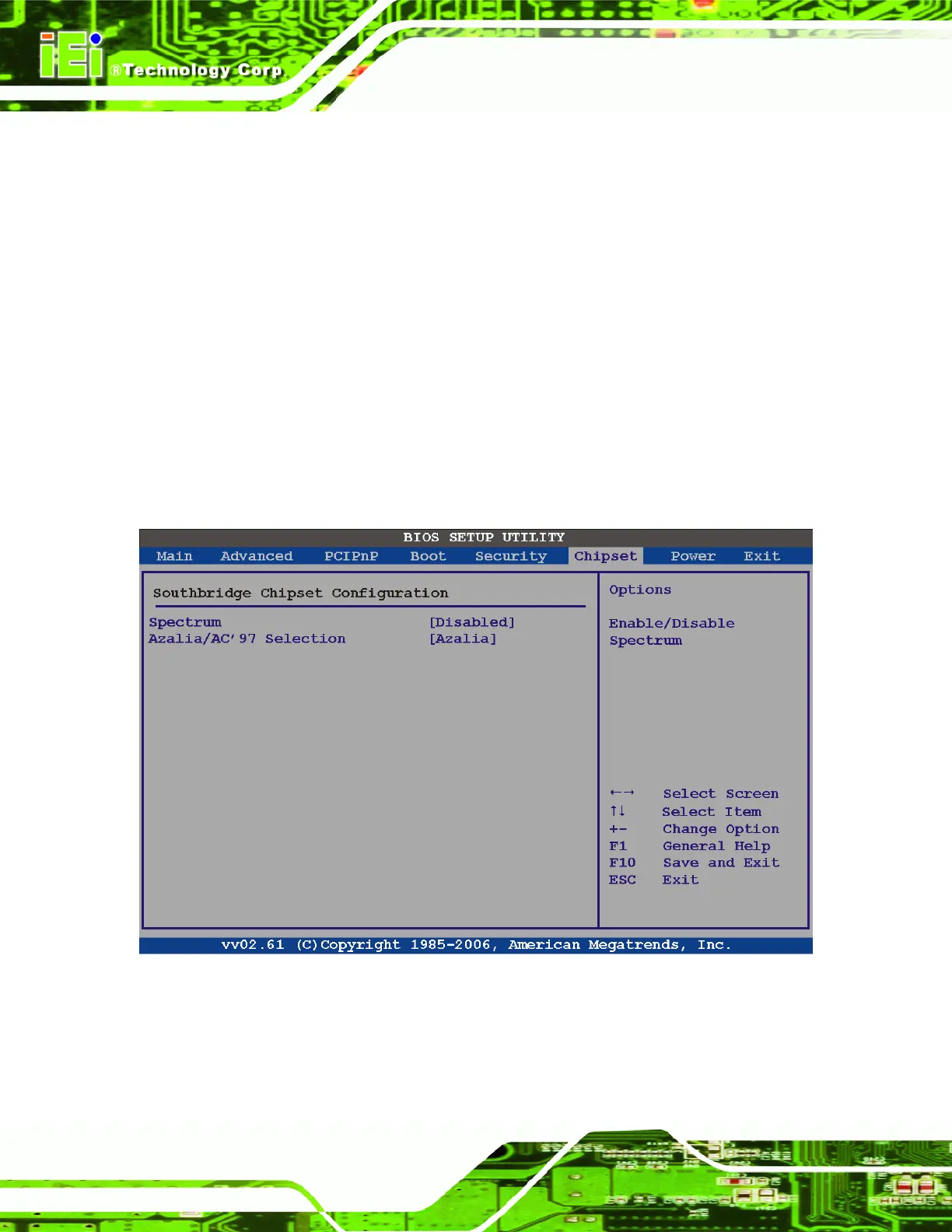

5.7.2 Southbridge Configuration
The Southbridge Configuration menu (BIOS Menu 20) allows the Southbridge chipset to
be configured.
BIOS Menu 20:Southbridge Chipset Configuration
