AFL-xxx-9103 Panel PC
Page 22

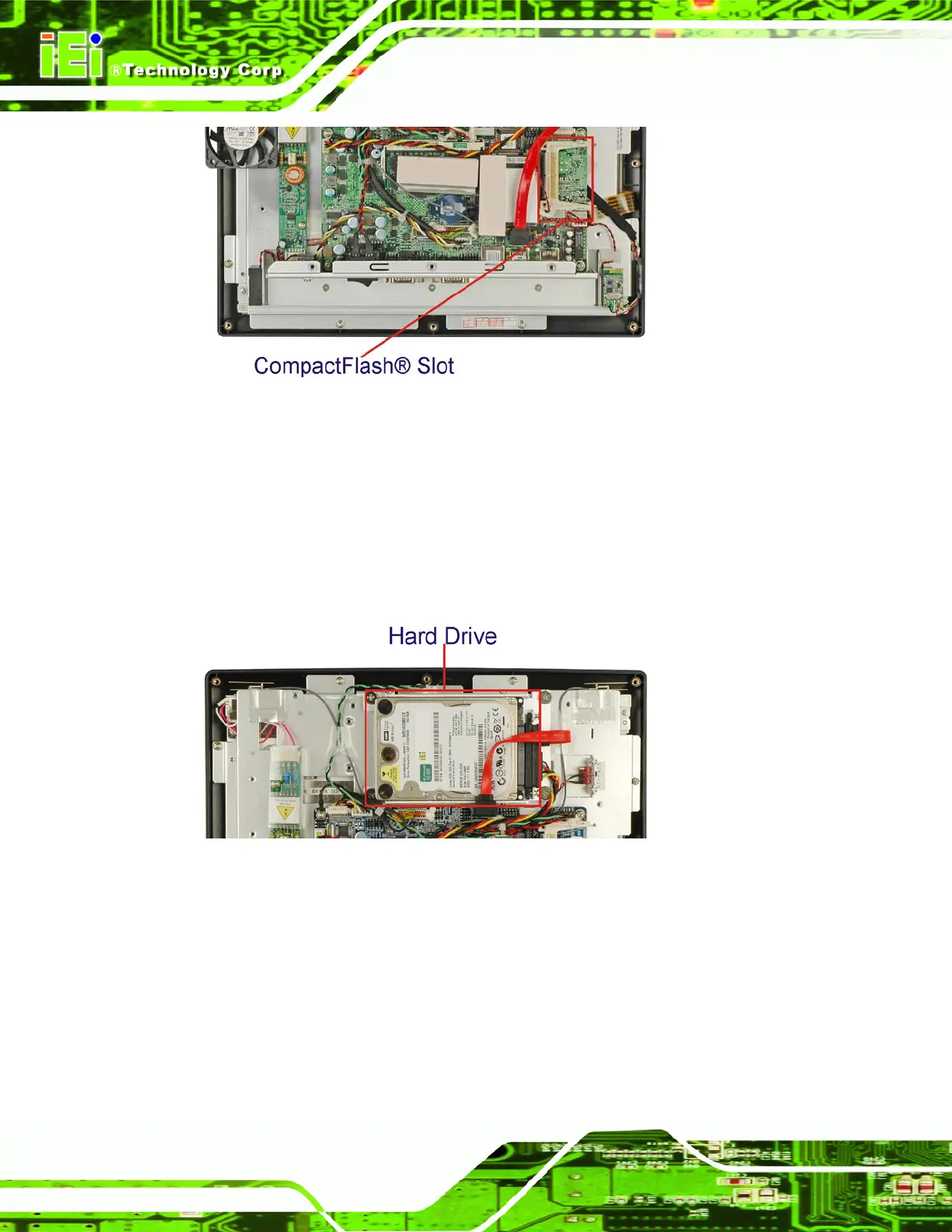

Figure 2-3: CompactFlash® Slot
2.6.2 Hard Drive
The AFL-xxx-9103 supports a single SATA or IDE hard drive. This hard drive is installed
internally and connected to the SATA port or IDE connector on the AFLMB-9103GME
motherboard. A second SATA connector is implemented externally through an eSATA
connector.
Figure 2-4: Hard Drive Slot
