AFL-xxx-9103 Panel PC
Page 58

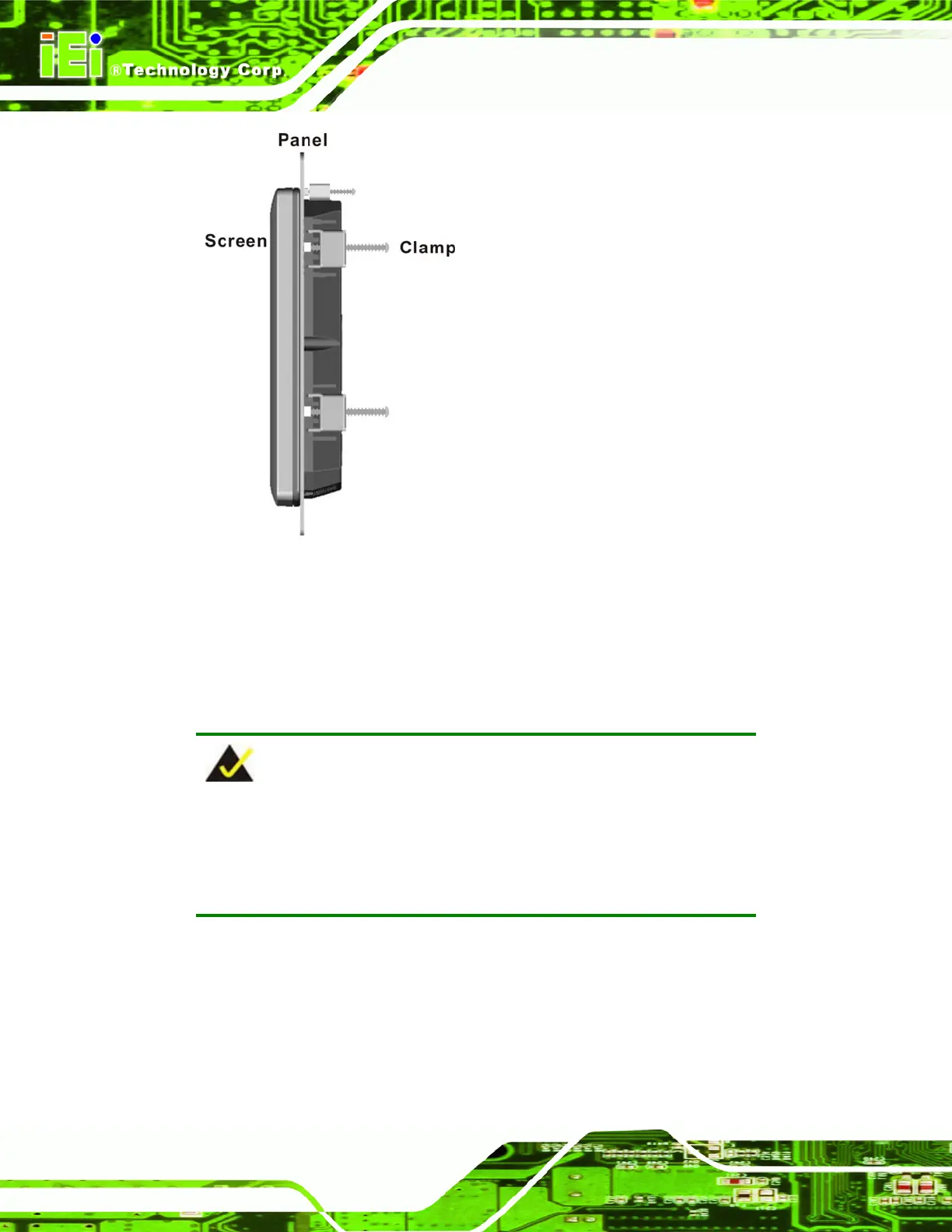

Figure 3-14: Tighten the Panel Mounting Clamp Screws
3.8.4 Cabinet and Rack Installation
The AFL-xxx-9103 can be installed into a cabinet or rack. The installation procedures are
similar to the panel mounting installation. To do this, please follow the steps below:
NOTE:
When purchasing the cabinet/rack installation bracket, make sure it is
compatible with both the AFL-xxx-9103 flat panel PC and the
rack/cabinet into which the AFL-xxx-9103 is installed.
Step 1: Slide the rear chassis of the AFL-xxx-9103 through the rack/cabinet bracket until
the aluminum frame is flush against the front of the bracket (
Figure 3-15).
