AFL-xxx-9103 Panel PC
Page 89
5.3.3 Super IO Configuration
Use the Super IO Configuration menu (BIOS Menu 6) to set or change the
configurations for the FDD controllers, parallel ports and serial ports.

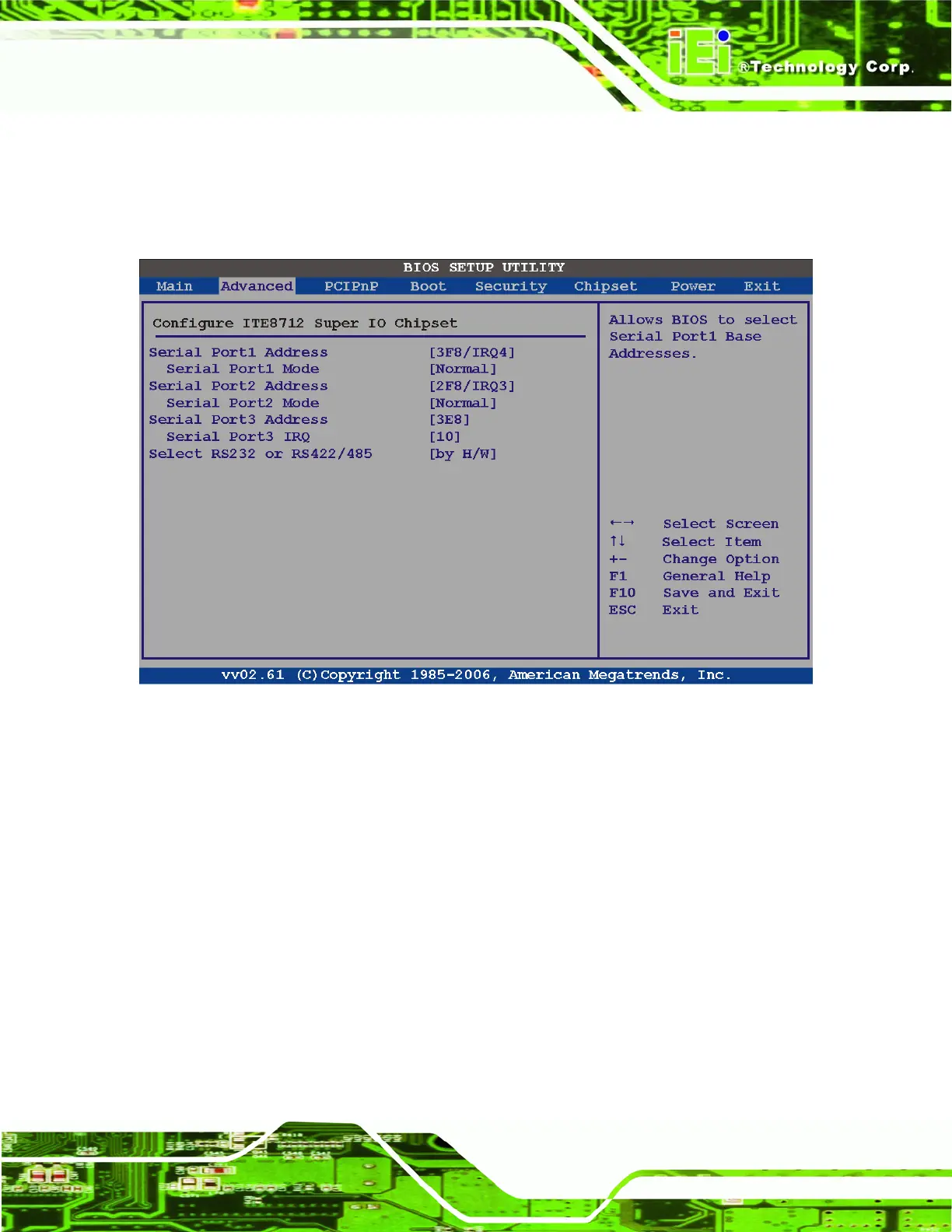

BIOS Menu 6: Super IO Configuration
Serial Port1 Address [3F8/IRQ4]
Use the Serial Port1 Address option to select the I/O port address and interrupt address.
Disabled
No base address is assigned to Serial Port 1
3F8/IRQ4 DEFAULT
I/O port address is 3F8, interrupt address is IRQ4
3E8/IRQ4
I/O port address is 2F8, interrupt address is IRQ4
2E8/IRQ3
I/O port address is 2E8, interrupt address is IRQ3
