AFL-xxx-9103 Panel PC
Page 57

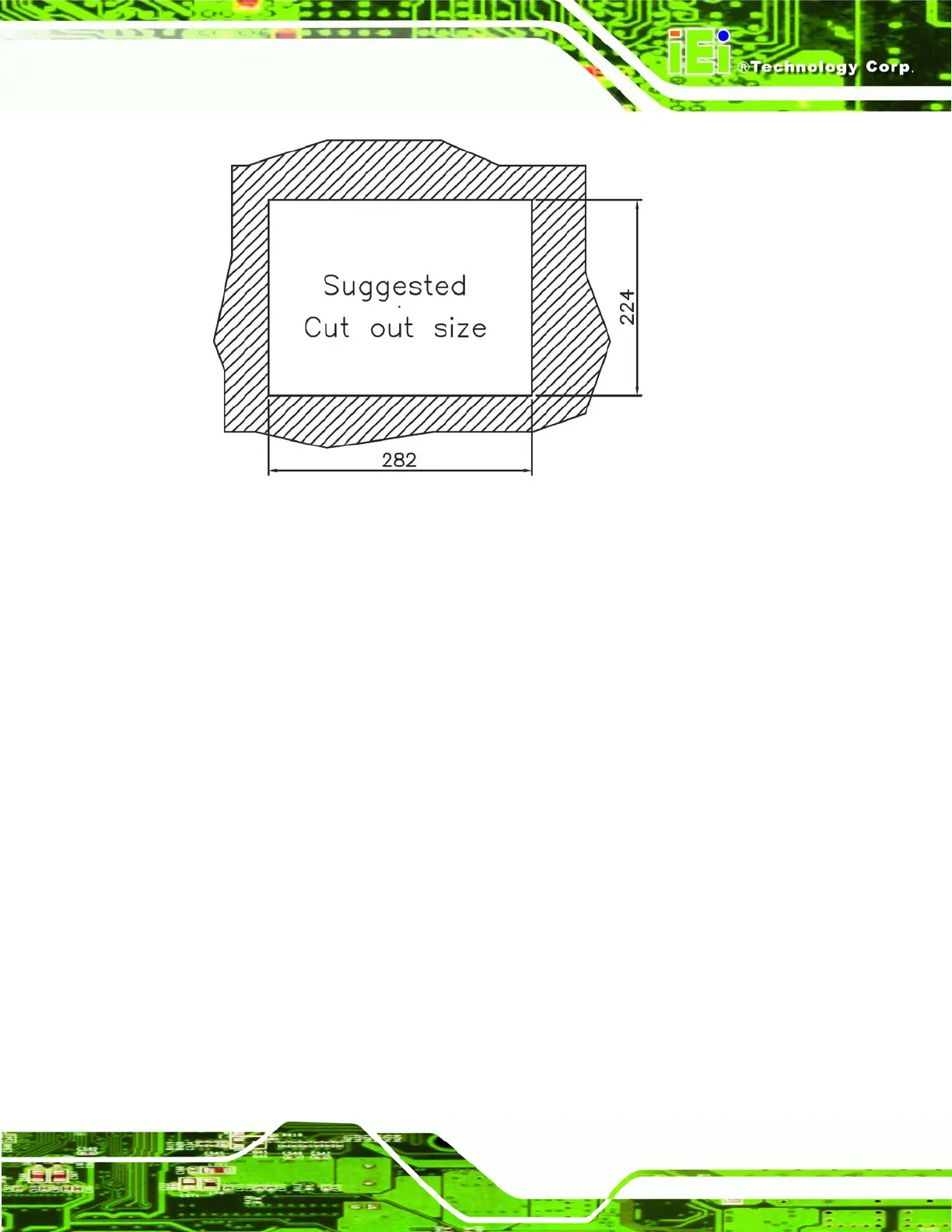

Figure 3-13: AFL-12B-9103-R10 Panel Opening
Step 3: Slide the flat panel PC through the hole until the aluminum frame is flush against
the panel.
Step 4: Insert the panel mounting clamps into the pre-formed holes along the edges of
the chassis, behind the aluminum frame. There are a total of 6 panel mounting
clamps for AFL-xxx-9103.
Step 5: Tighten the screws that pass through the panel mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the panel (
Figure 3-14).
