AFL-xxx-9103 Panel PC
Page 50

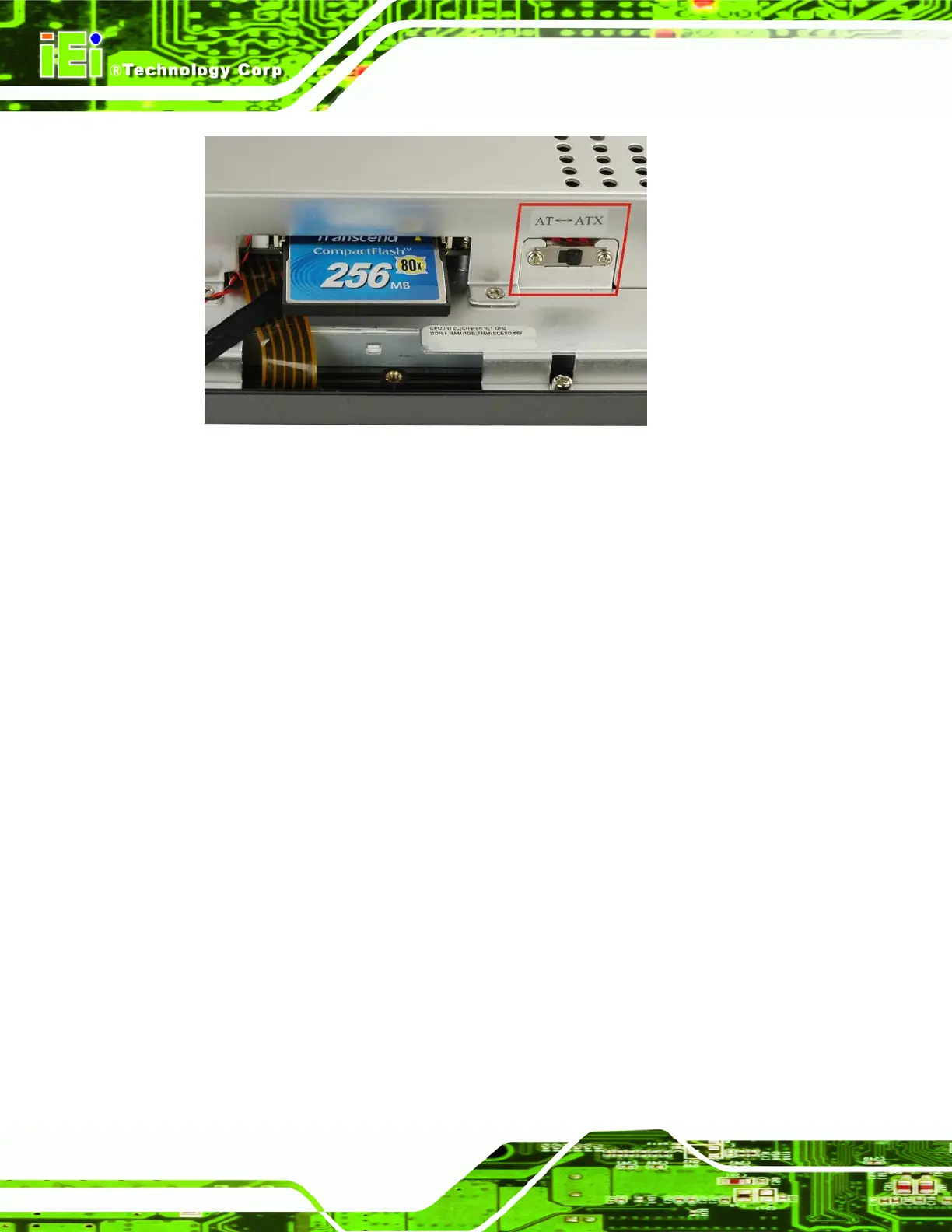

Figure 3-7: AT/ATX Switch Location
Step 3: Adjust the AT/ATX switch. Step 0:
3.7.1 AT Power Mode
With the AT mode selected, the power is controlled by a central power unit rather than a
power switch. The AFL-xxx-9103 turns on automatically when the power is connected.
The AT mode benefits a production line to control multiple panel PCs from a central
management center and other applications including:
ATM
Self-service kiosk
Plant environment monitoring system
Factory automation platform
Manufacturing shop flow
3.7.2 ATX Power Mode
With the ATX mode selected, the AFL-xxx-9103 goes in a standby mode when it is turned
off. The panel PC can be easily turned on via network or a power switch in standby mode.
Remote power control is perfect for advertising applications since the broadcasting time
