AFL-xxx-9103 Panel PC
Page 21
2.5 Memory
The Intel® 910GMLE in the AFL-xxx-9103 contains an internal DDR2 controller. The
DDR2 controller has the following features:
Low-latency, high-bandwidth
400 MHz 128-bit DDR2 SDRAM controller
Supports one un-buffered DDR2 SO-DIMM
Each SO-DIMM has a maximum capacity of 2.0 GB
The DDR2 controller on the Northbridge is interfaced to one SO-DIMM socket on the
AFL-xxx-9103.

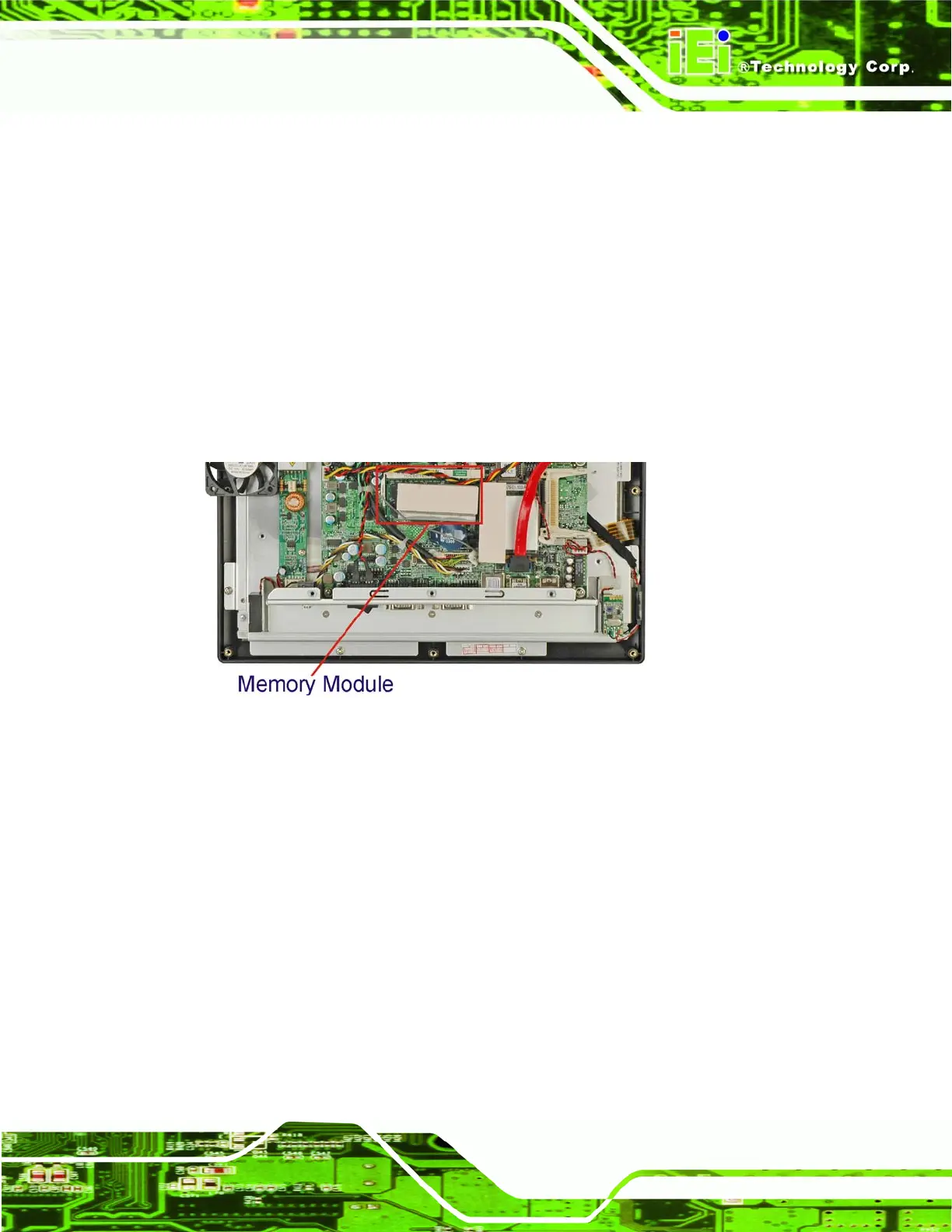

Figure 2-2: SO-DIMM Socket
2.6 Storage
There following storage options are available:
2.6.1 CompactFlash
®
2.6.2 Hard Drive
2.6.1 CompactFlash
®
The CompactFlash® socket supports standard CompactFlash® Type I and
CompactFlash® Type II cards. The chipset flash interface is multiplexed with an IDE
interface and can be connected to an array of industry standard NAND Flash or NOR
Flash devices. The CompactFlash® slot location is shown below.
