IEI Technology AFL-xxx-9103 User Manual

AFL-xxx-9103 Panel PC
Page 27

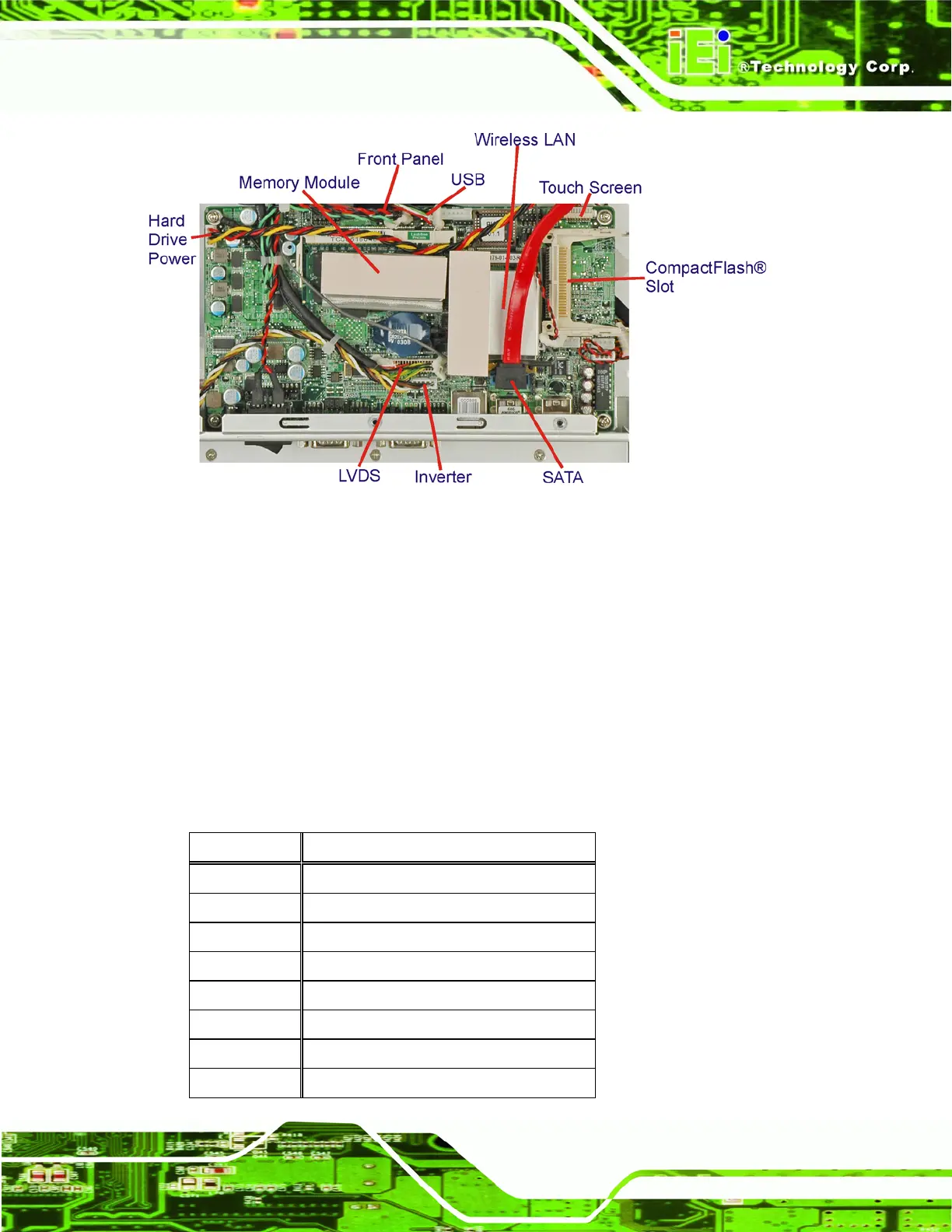

Figure 2-9: AFLMB-9103GME Connector Overview
2.11.1 Touch Screen Connector
CN Label: PANEL
CN Type:
9-pin connector
CN Location:
See
Figure 2-9
CN Pinouts:
See
Table 2-1
The touch screen connector connects to the touch screen on the front panel of the
AFL-xxx-9103.
PIN DESCRIPTION
1 X+
2 X-
3 Y+
4 SENSE
5 X+
6 X-
7 Y+
8 Y-
