AFL-xxx-9103 Panel PC
Page 67

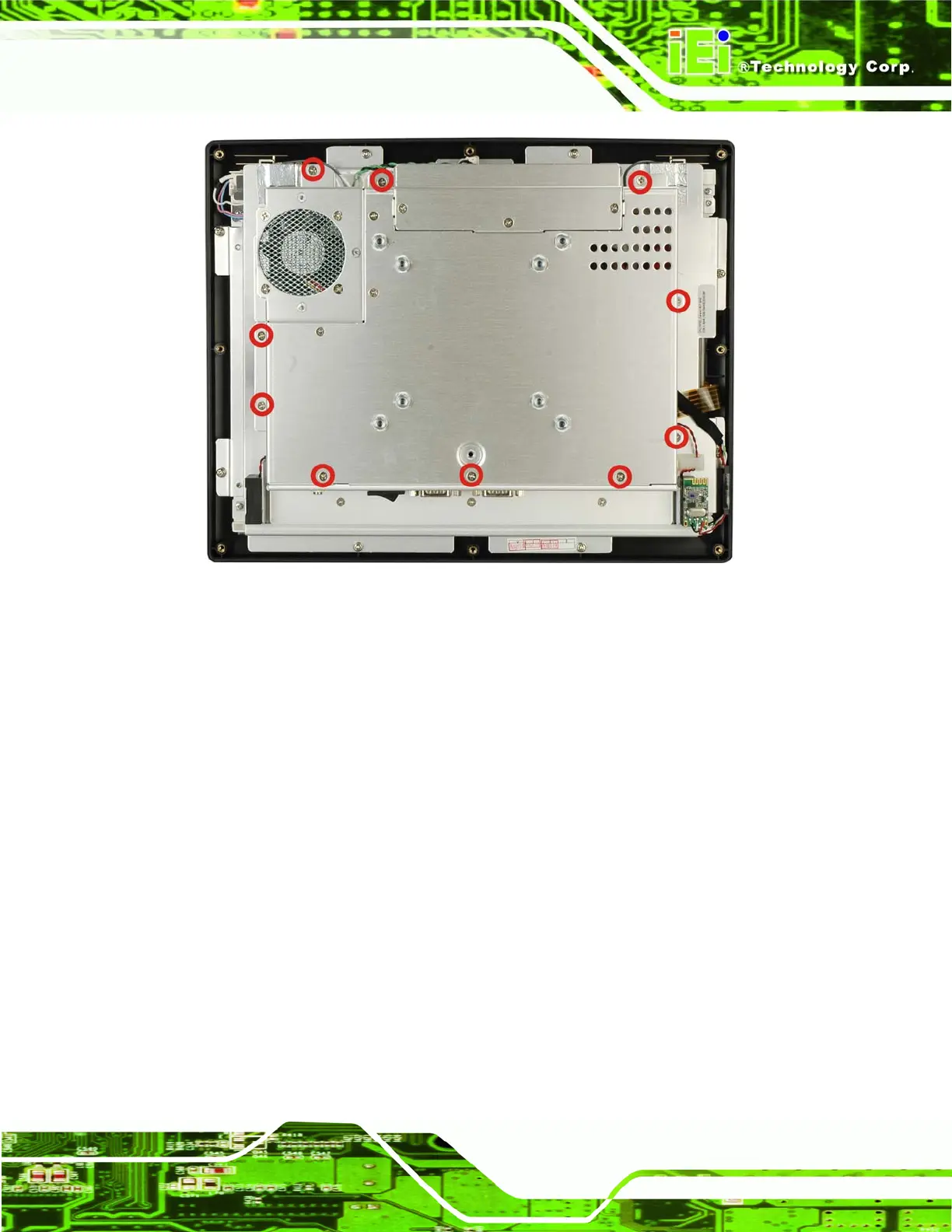

Figure 4-2: AFL-12B-9103-R10 Aluminum Back Cover Retention Screws
Step 2: Lift the aluminum cover off the AFL-xxx-9103. The AT/ATX switch on the
aluminum cover is connected to the motherboard. Be careful when lifting the
cover off. Step 0:
4.4 Memory Module Replacement
The flat panel PC is preinstalled with a 512 MB DDR2 memory module. If the memory
module fails, follow the instructions below to replace the memory module.
Step 1: Remove the back cover. See Section
3.5 above.
Step 2: Remove the internal aluminum back cover. See Section
4.3 above.
Step 3: Locate the DDR2 memory module on the motherboard of the flat panel PC
(
Figure 4-3).
