IEI Technology AFL-xxx-9103 User Manual

AFL-xxx-9103 Panel PC
Page 59

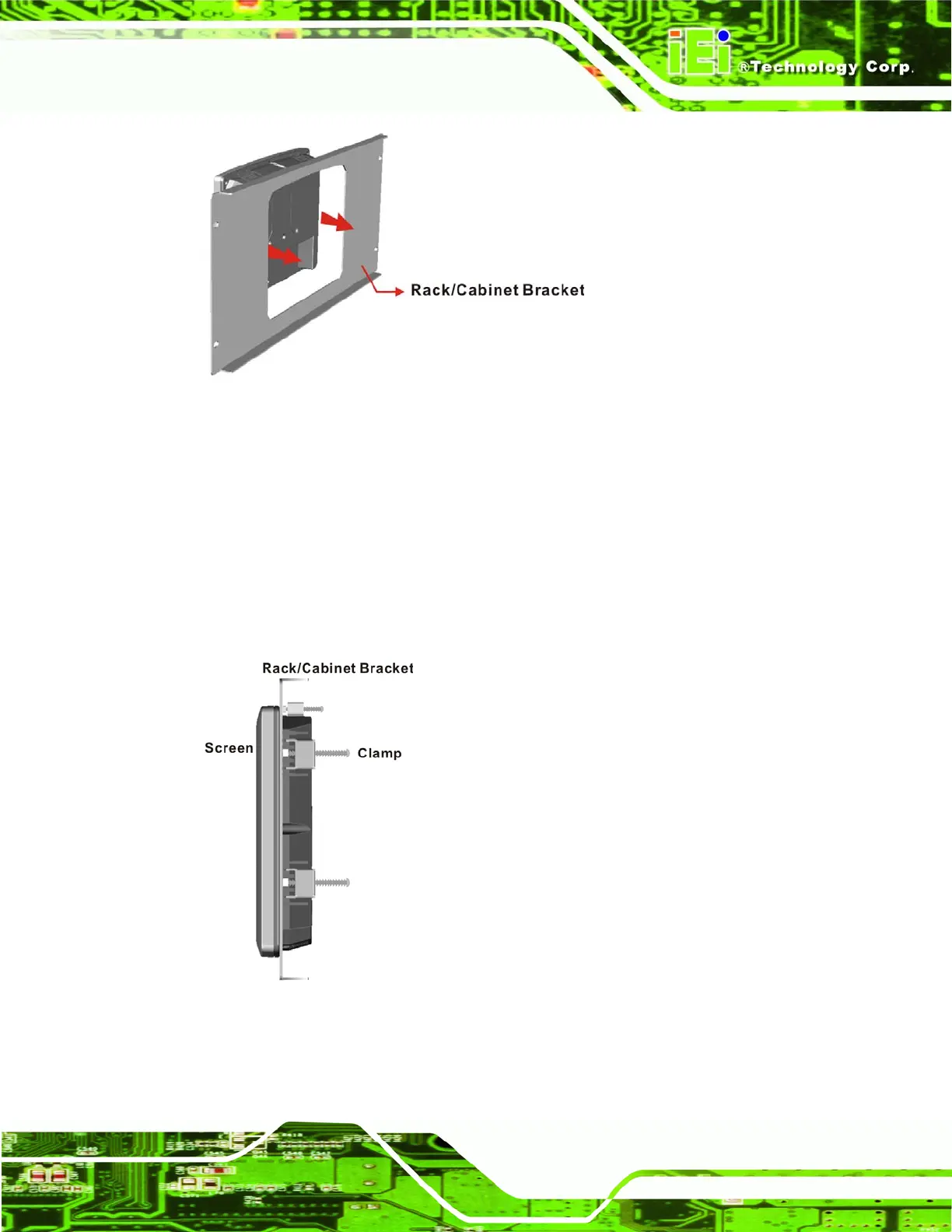

Figure 3-15: The Rack/Cabinet Bracket
Step 2: Insert the rack mounting clamps into the pre-formed holes along the edges of
the flat panel PC, behind the ABS/PC plastic frame. There are a total of 6 rack
mounting clamps for the AFL-xxx-9103.
Step 3: Tighten the screws that pass through the rack mounting clamps until the plastic
caps at the front of all the screws are firmly secured to the bracket
(
Figure 3-16).
Figure 3-16: Secure the Rack/Cabinet Bracket
