AFL-xxx-9103 Panel PC
Page 25
2.9 Wireless LAN
The IEEE 802.11a/b/g compliant wireless module is pre-installed in the system and
provides wireless connectivity at up to 54 Mb/s. The wireless module is interfaced to the
system chipset through the PCIe Mini slot.

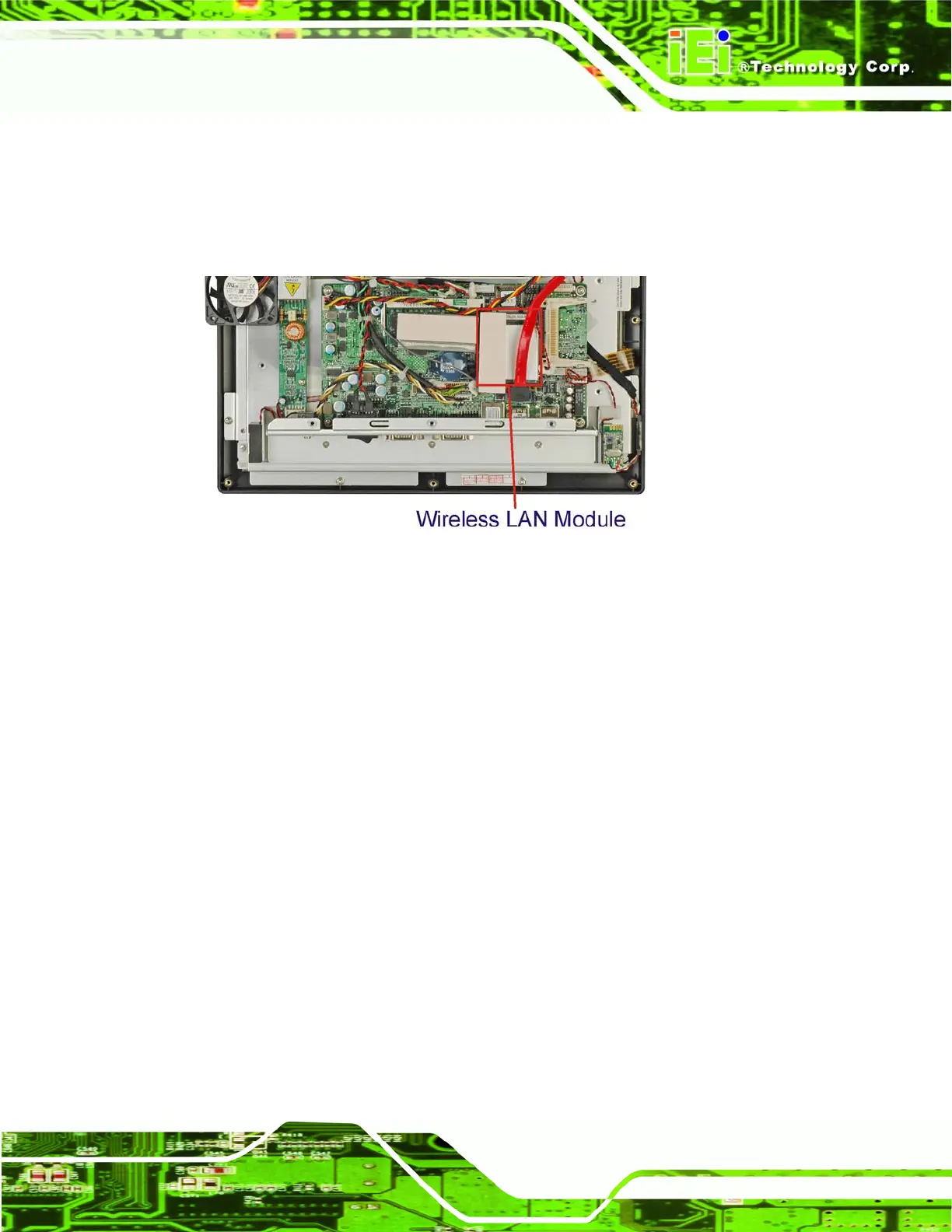

Figure 2-8: Wireless LAN Module
Some of the features of the wireless module are listed below.
Compliant with IEEE 802.11a, 802.11b and 802.11g standards
PCIe Mini interface
VIA® Solomon VT6656 wireless LAN controller
2.10 Front Panel
The front panel of the AFL-xxx-9103 consists of an LCD monitor and a touch screen
panel.
2.10.1 LCD Screen
The AFL-xxx-9103 comes with a TFT LCD monitor. The tough construction of the TFT
monitor allows the AFL-xxx-9103 to withstand the conditions it is likely to be exposed to
during regular use. Some of the specifications of the TFT monitors are shown below:
Pixel pitch of 0.297 mm or less
700:1 contrast ratio or better
300 cd/m
2
or greater
