Specifications of the Sony R10C 20MP
camera:
• Sensor size: CMOS Sensor APS-C
size, 23.2 x 15.4 mm
• Resolution: 20.1 Mpx (5456 x 3632
pixels)
• Lens: Sony Sonnar® T* E 24 mm F1.8
ZA (changeable)
• Focal length: 24 mm
• Image formats: JPEG, Sony ARW
• Video formats: 1920 x 1080 @ 30
fps, MP4 (videos are stored on the
camera SD card)
• Weight incl. lens and gimbal: ~ 750 g
(with 24 mm f/1.8 lens).
• Approximate maximum flight time:
16 min
• Suggested applications: Inspection
and survey
Approved lenses:
• Sony Sonnar® T* E 24 mm F1.8 ZA
(SEL24F18Z) - 225g. For survey mis-
sions requiring maximum image qual-
ity (default lens)
• Sony E PZ 16-50 mm F3.5-5.6 OSS
(SELP1650) - 116g. For inspection
tasks, zoom capability and optical sta-
bilizer assist in live inspection tasks
• Sony Sonnar T* FE 35 mm F2.8 ZA
(SEL35F28Z) - 120 g. For fixed distance
inspection or building survey tasks
• Sony E 20 mm F2.8 (SEL20F28) - 69 g.
Very lightweight all-around lens, suit-
able for survey missions with demand
for large area coverage
Please note that other lenses, while physi-
cally compatible with the camera, may be
too heavy and are not approved.

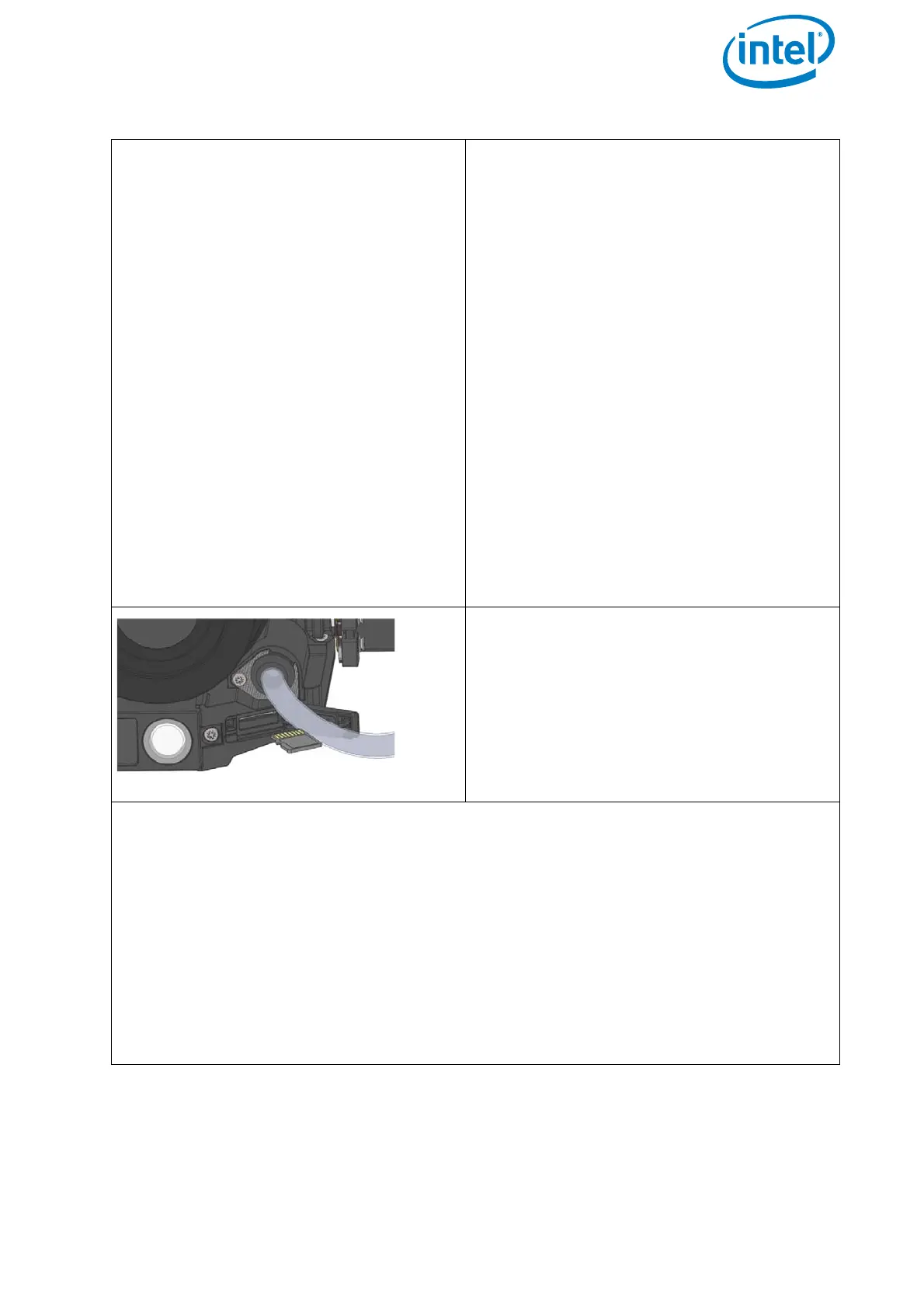

Images are stored on the payload SD card,
which is inserted in the front left hand cor-
ner as shown to the left.
Recorded videos can be transferred to this
payload SD card as well (see below).
To transfer files from the payload card to a
computer, please use an SD card reader
connected to the computer.
Note: The frequency with which images can be captured depends on how quickly the
image data can be written to the target media during a flight. During flights images
are written directly to the user-changeable payload microSDHC card for easy access
to the files post-flight.
The microSDHC bus type and speed class, along with the card manufacturer's real-
world performance specifications, set the limit for how frequently images can be
saved to the media during flights. Using the supplied microSDHC card, Intel has
successfully validated repeated contiguous image captures of up to 500 images with
a frequency of up to 1 image capture every 1.5 seconds. Please note that when using
microSDXC cards in the payload, they will work in SDHC compatibility mode and the
stated read/write speed performance may not be achievable.
Figure 2.24: Intel® Imaging Payload Specifications (continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
