Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 30
2.4. THE 2ND OPERATOR MONITOR
The 2nd operator monitor is an optional part of the UAS and can be delivered as an
additional accessory.
It can be used as a video preview monitor for the 2nd pilot, especially when used with
the ICC (see “THE INDEPENDENT CAMERA CONTROL (ICC)” on page 28). There is no
further (flight) information shown on this monitor.
Thanks to the 2nd monitor, a camera operator can control the video preview of the
camera used. It is connected to the CTR via the HDMI port by a cable. The HDMI port is
in the back of the CTR in the upper left corner (see “Intel® Cockpit Controller (CTR)
Overview” on page 24).
(9) Shutter speed + Zoom - (when RGB camera is
active)
(10) Camera tilt velocity - Camera tilt velocity -
(11) Camera tilt velocity + Camera tilt velocity +

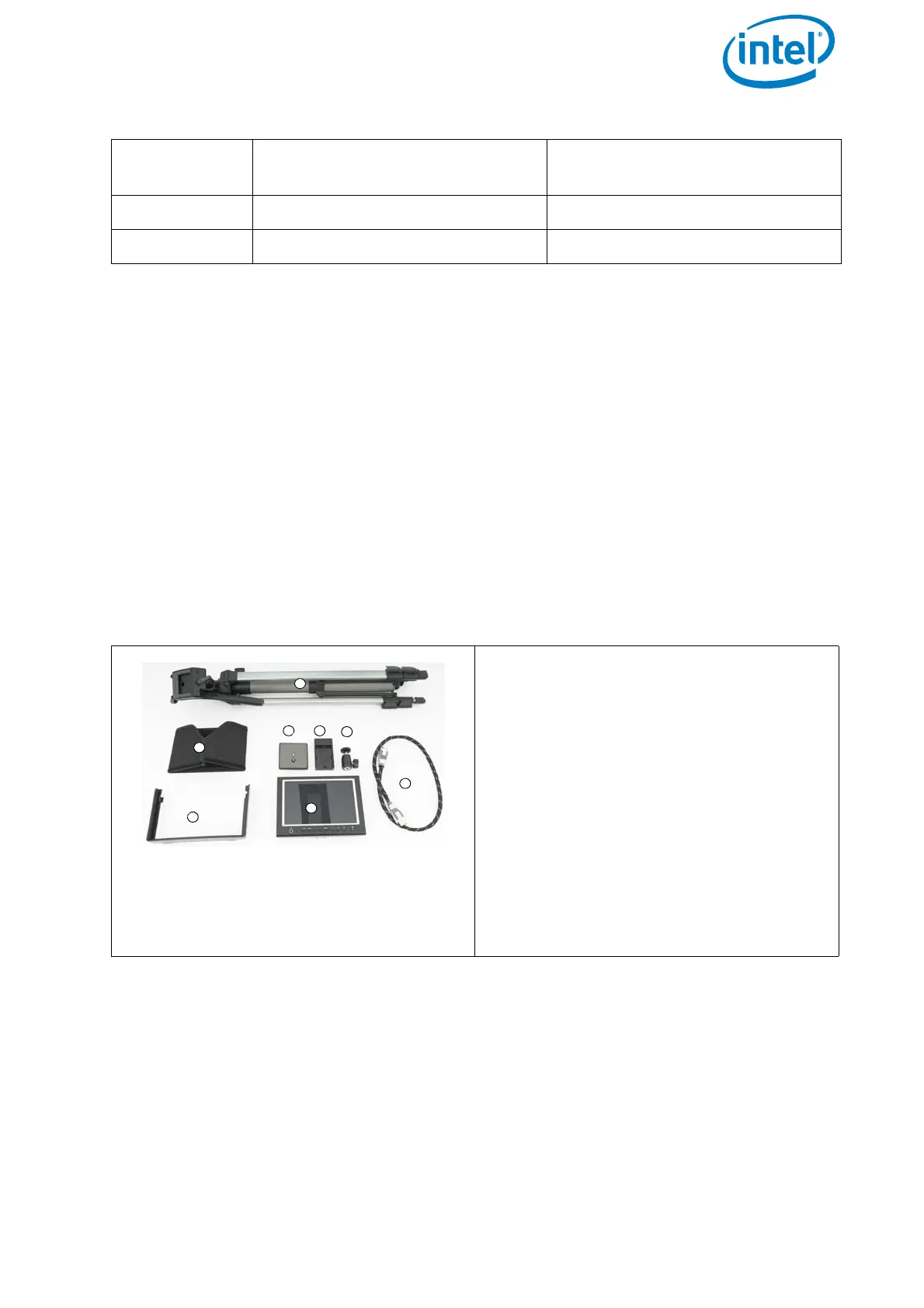

Figure 2.11: 2nd Operator Monitor Package
The elements of the 2nd operator moni-
tor package are:
(1) Tripod
(2) Sunshield
(3) Adapter plate for tripod
(4) Battery adapter
(5) Monitor adapter
(6) Frame for sunshield
(7) Monitor
(8) HDMI cable
Not shown:
• Battery
•Charger
Table 2.1: Operating a Camera by ICC (continued)
1
2
3
4
5
6
7
8

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
