3.2. PREPARING THE INTEL® COCKPIT CONTROLLER (CTR)
The following section describes how to prepare the CTR.

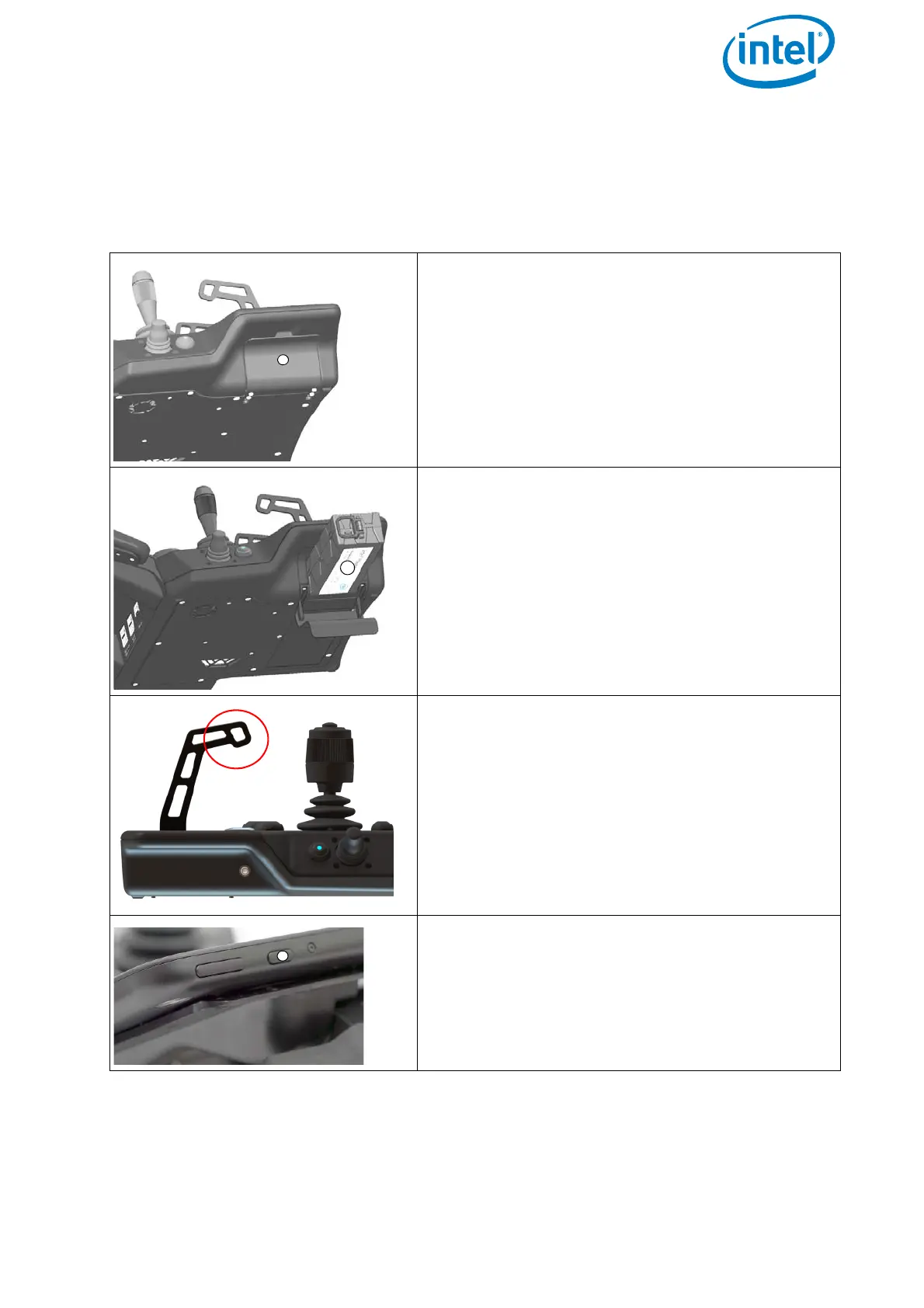

Figure 3.2: Preparing the CTR
1. Open the lid of the battery compartment (1).
It is located at the bottom of the lower left-
hand side of the CTR. The flap of the
compartment is equipped with a magnetic
closure.
The Intel® Powerpack Battery provides power to
the CTR as well as the touchscreen tablet.
2. Slide the battery with the colored “Intel”
label (1) facing downwards into the battery
compartment. Slide it all the way in until it is
stopped and flush with the end of the slot.
The Intel® Powerpack battery provides
power to the CTR as well as the touchscreen
tablet (the battery is the same for the Intel®
Falcon™ 8+; see “THE INTEL® POWERPACK
BATTERIES” on page 71)
3. Install the shoulder harness by connecting
the carabiners of the harness to the first
eyelet of the integrated holder (red circle in
this image) on each side of the CTR.
4. Switch on the touchscreen tablet by pushing
the power button (1) on the top edge, right
side for approximately 2 seconds until a
short vibration is felt.
1
1
1

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
