USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 22
2.1.2. Motor rails of the UAV
The following figure shows the front part of the left motor rail.
The motor rails are connected by a carbon cross which consists of four carbon tubes
connected by a center cross piece.
The antenna cabling is found inside the tubes of the carbon cross.

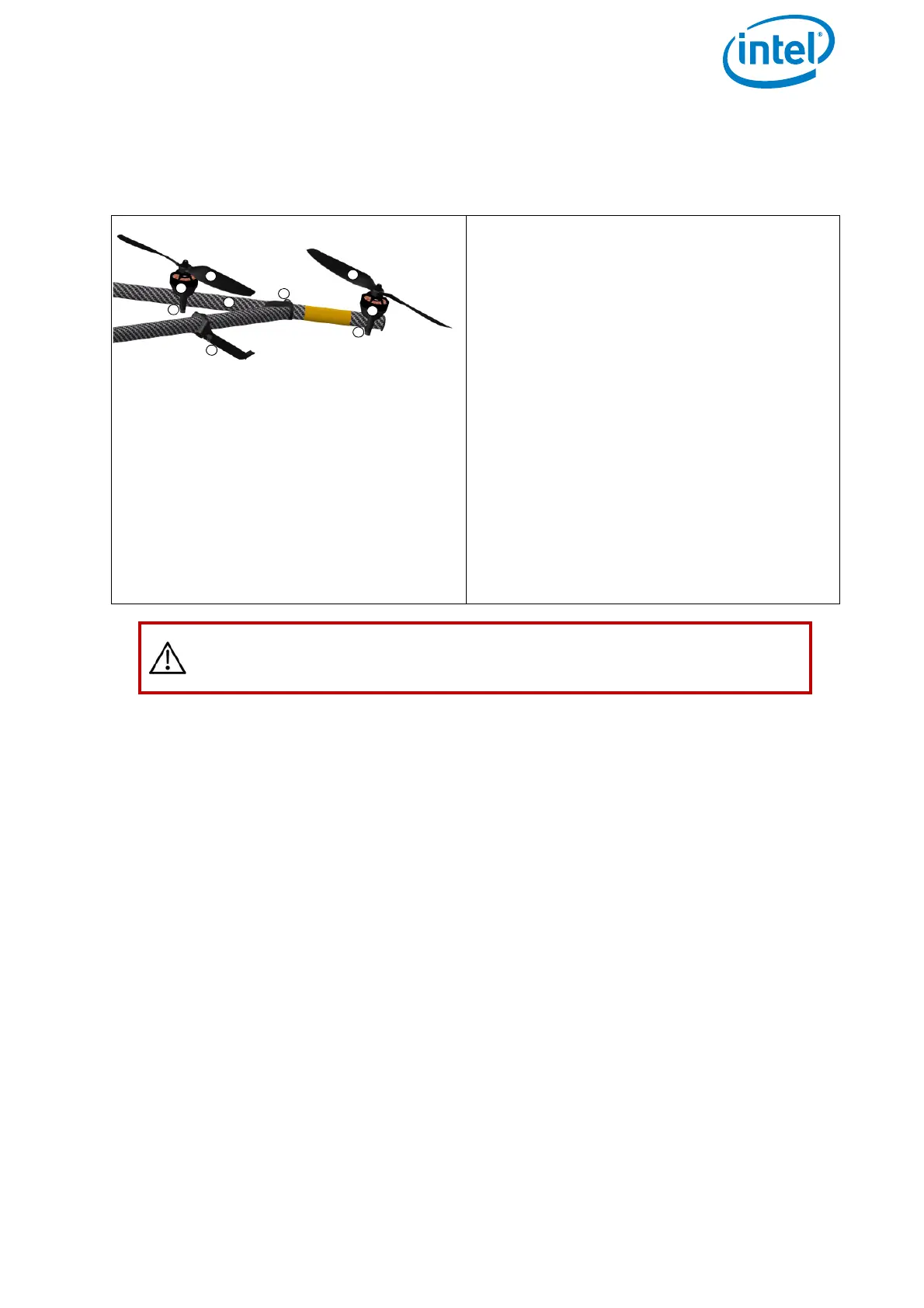

Figure 2.5: Motor Rails and Equipment
The motor rails and the related elements
consist of:
(1) Propellers, mounted directly on the
motors
(2) Brushless motors, mounted directly
onto the motor mounts
(3) Motor mount
(4) Carbon fiber tube
(5) Connector between carbon cross and
motor rails
(6) Landing foot (front left shown): the
video link antenna (or data link
antenna as applicable) is integrated
(see “The Intel® Falcon™ 8+ UAV
Components” on page 18).
Each motor rail consists of four motor
controllers seated within the carbon tube.
CAUTION: HAZARDOUS MOVING PARTS, KEEP FINGERS AND OTHER
BODY PARTS AWAY.
1
1
2
2
3
3
4
5
6

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
