2.2.1. The Status Display
The Status Display shows all relevant information for flying. It is built into the CTR
remote control unit. For further information about the handling of the Status Display
see “STATUS DISPLAY” on page 166).

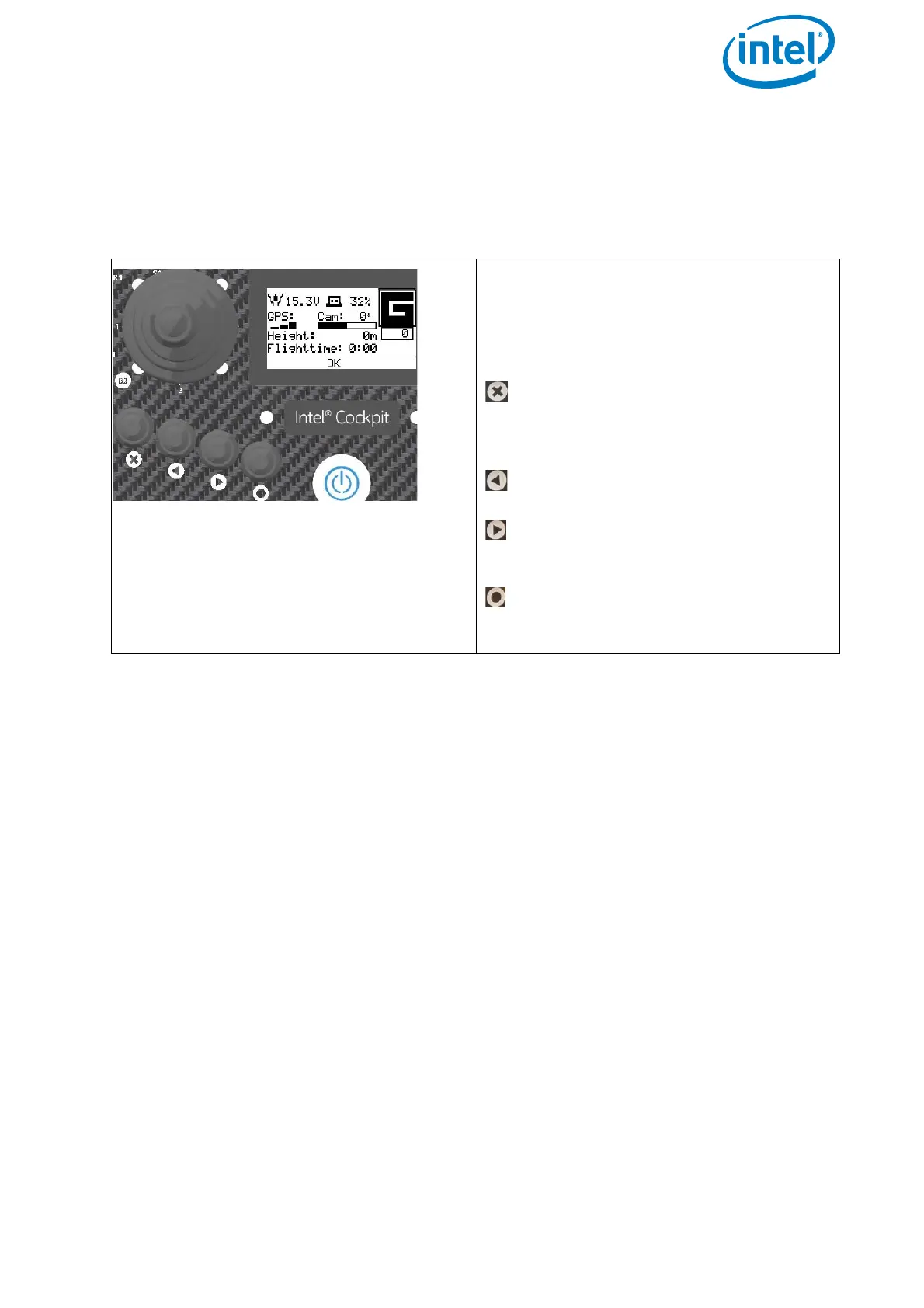

Figure 2.8: Status Display
Via the Status Display you can view the
current settings and adjust specific func-
tions of the UAV. In order to do so, use
the four buttons under the lower left cor-
ner of the Status Display.
Escape (left side) is used to leave
menus / sub-menus and to clear
functions. In the following text, it is
displayed as ESC.
With the arrow LEFT button (middle,
left side)
and the arrow RIGHT button (middle,
right side) you can scroll through
menus or alter parameters.
Enter (right side) is used to enter
menus and activate functions. In the
following text, it is displayed as ENT.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
