2.2.2. The Touchscreen Tablet
The Intel® based Windows® touchscreen tablet has an 8.3-inch screen with a resolution
of 1920 X 1200 pixels. It is directly mounted on the remote control unit of the Intel®
Cockpit Controller (CTR) and cannot be removed.
The tablet is powered by the battery of the CTR and must be switched ON before the
CTR is powered ON.
The touchscreen tablet serves as a video monitor, displays flight information and gives
access to extended functionality (see “THE TOUCHSCREEN TABLET” on page 99).
2.3. THE INDEPENDENT CAMERA CONTROL (ICC)
The Independent Camera Control (ICC) is an optional part of the Inspection Package
(see “SOFTWARE FEATURE PACKAGES” on page 87). Thanks to the ICC, a camera
operator can control the main camera functions from a gamepad, which is connected
to the CTR via a USB port (USB port 2 – 4). The USB ports are in the back of the CTR in
the upper left corner (see “Intel® Cockpit Controller (CTR) Overview” on page 24).

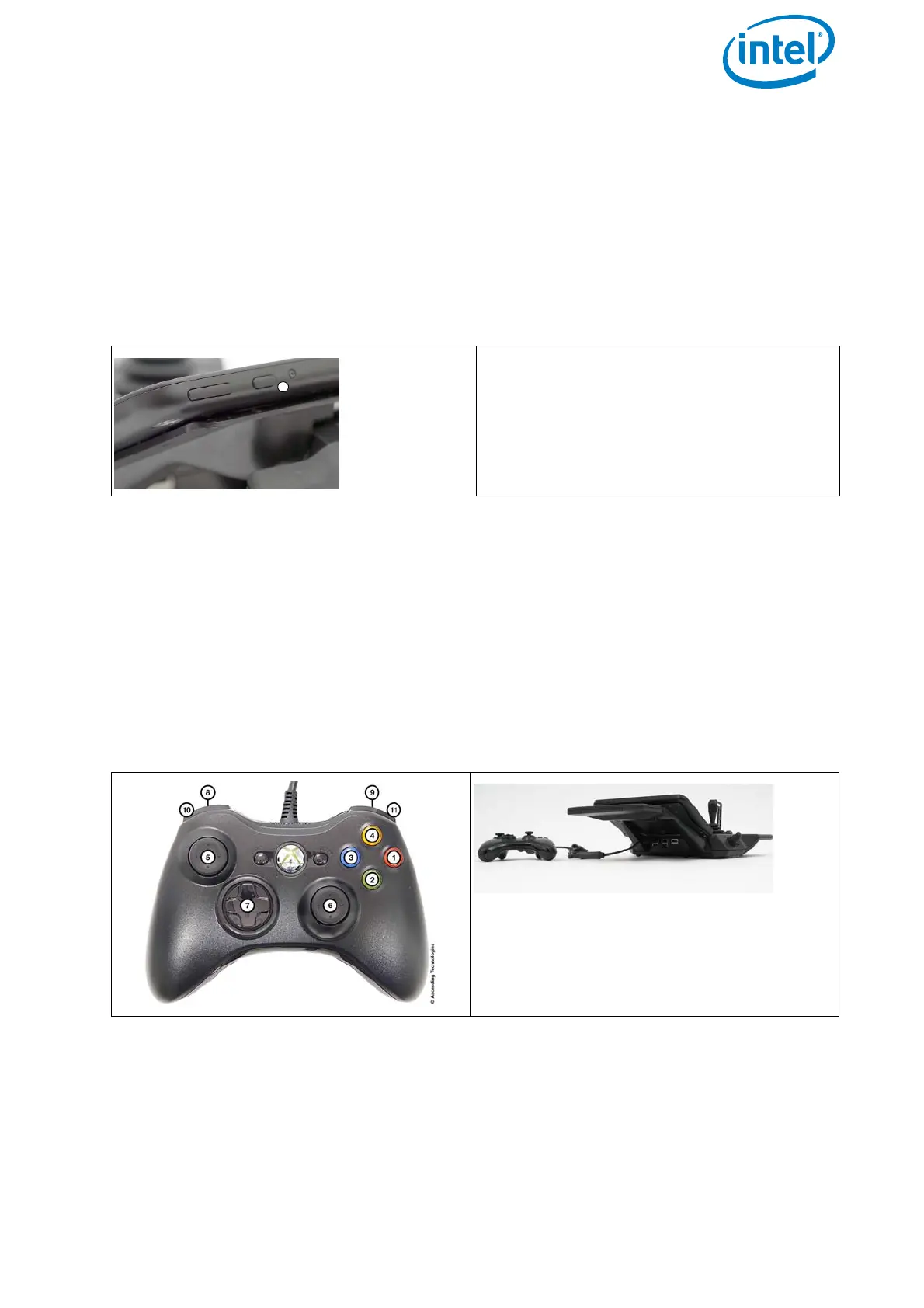

Figure 2.9: The Touchscreen Tablet
Power button on the top edge, right side
(1).
None of the covered 4 ports on the right
side of the tablet (Headphone, USB, SD
card, USB charging) are in use.
Figure 2.10: Independent Camera Control (ICC)
XBOX gamepad
For using the XBOX gamepad as ICC it has
to be connected to the CTR via a USB port
(USB port 2 – 4) like shown.
1

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
