Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 29
The following table presents an overview of the function assignment:

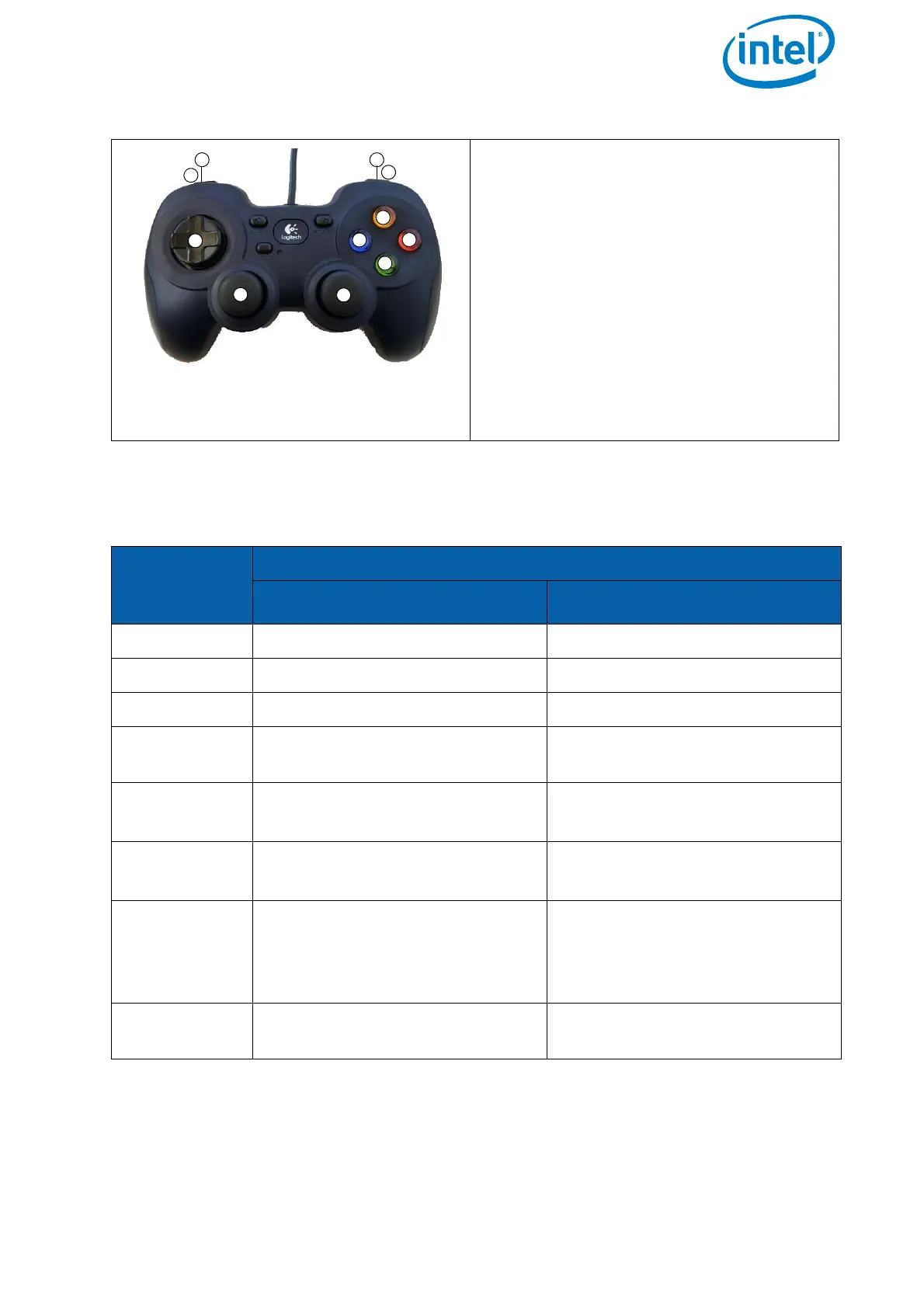

LOGITECH F310 gamepad
For using the LOGITECH F310 gamepad
as ICC it has to be connected to the CTR
via a USB port (USB port 2 – 4) like shown
and described above. The switch at the
bottom of the gamepad (X--D) has to be
set to X.
If the LOGITECH F310 gamepad is used
for the first time with the CTR, a respec-
tive driver will be installed automatically.
During the installation the live preview
might get delayed. After the installation
the tablet must be rebooted.
Table 2.1: Operating a Camera by ICC
BUTTON
REFERENCED
ON ICC
CAMERA
SONY ALPHA 7R INSPECTION-PAYLOAD
(1) Start/Stop video /
(2) Trigger photo Trigger photo (both cameras)
(3) View last image /
(4) / Change color palette (when FLIR
is active)
(5) Camera tilt (up/down)
Yaw (left/right)
Camera tilt (up/down)
Yaw (left/right)
(6) Camera tilt (up/down)
Yaw (left /right)
Camera tilt (up/down)
Yaw (left/right)
(7) Horizontal tilt (adjust camera
horizon) (left/right)
Exposure compensation +/- (up/
down)
Horizontal tilt (adjust camera
horizon) (left/right)
Switch camera (up/down)
(8) Shutter speed - Zoom + (when RGB camera is
active)
Figure 2.10: Independent Camera Control (ICC) (continued)
1
2
3
4
5
6
7
8
9
10
11

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
