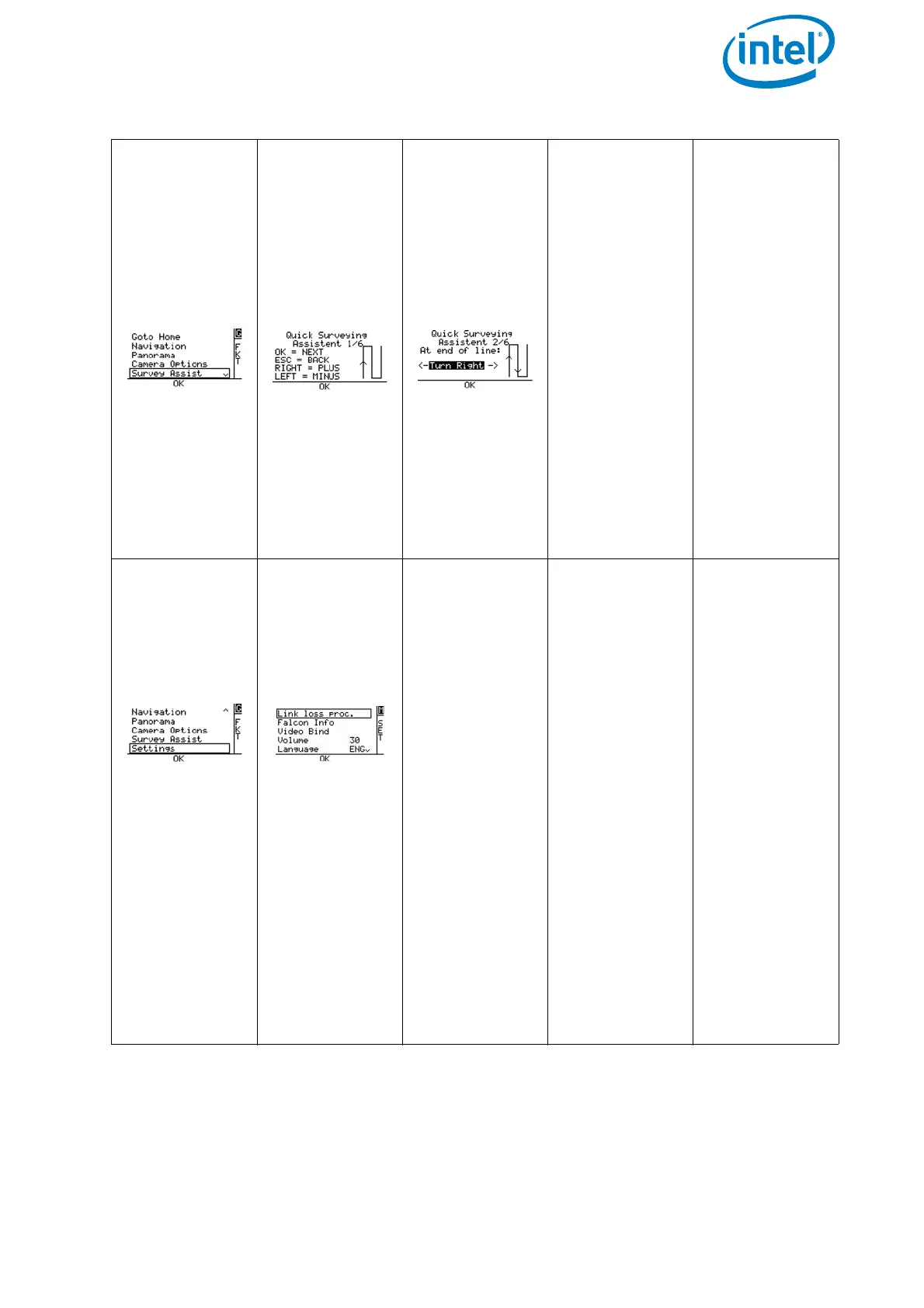

By pushing the
RIGHT/LEFT
arrow buttons
you can select
one of the
menu points.
Selecting
Survey
Assist
and
pushing ENT
opens the fol-
lowing intro-
ductory
screen:
Here you see
the com-
mands for how
to navigate
through this
function.
Pushing ENT
(OK) opens the
next screen.
Here you can
start to deter-
mine parame-
ters for a
mapping flight
for rectangu-
lar areas.
With this func-
tion, you can
determine
parameters for
a mapping
flight for rect-
angular areas.
More informa-
tion about the
function
Survey
Assist
is
found in
“QUICK SUR-
VEYING
ASSISTANT”
on page 188.
By pushing the
RIGHT/LEFT
arrow buttons
you can select
one of the
menu points.
Selecting
Settings
and pushing
ENT opens the
following
menu screen:
By pushing the
RIGHT/LEFT
arrow buttons
you can select
the menu
point you want
to control.
Pushing ENT
when the
selected menu
point is high-
lighted opens
the respective
screen.
There are 12
different menu
points avail-
able in the
Settings
menu:
• Link
loss
proc.
• Falcon
Info
• Video
Bind
• Volume
• Language
• Compass
Calib.
• Payload
Calib.
• Def.
Params
• Service
Fcts.
• Enter
FalconID
• Format
User SD
• Bounding
Box
For Link
Loss proc.
see “LINK
LOSS PROCE-
DURE” on
page 116.
For Compass
Calib.
and
Payload
Calib.
see “Payload
and compass
calibration” on
page 36
Table 4.1: Status Display Menu Structure (Continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
