2.5.3. Sony Alpha 7R Full Frame Camera
The Sony Alpha 7R has two main function dials that can be controlled through the CTR
(see “Camera Control By The CTR” on page 40).
2.5.3.1. General Care
• Always handle the gimbal with care. If you need to tilt the camera manually
(when not connected or while the Intel® Falcon™ 8+ UAV is switched off), please
do so very cautiously. If too much force is applied, the gear wheels of the servo
motors might break.
• The camera is powered by the Intel® Falcon™ 8+ UAV battery to save weight.
When you switch off the system, switch off the camera first and wait for 10
seconds to allow the camera to fully power down and store all images and
settings. Only then should you switch off the Intel® Falcon™ 8+ UAV. If you switch
off the Intel® Falcon™ 8+ UAV too early, you will cut the power supply of the
camera and risk losing data.

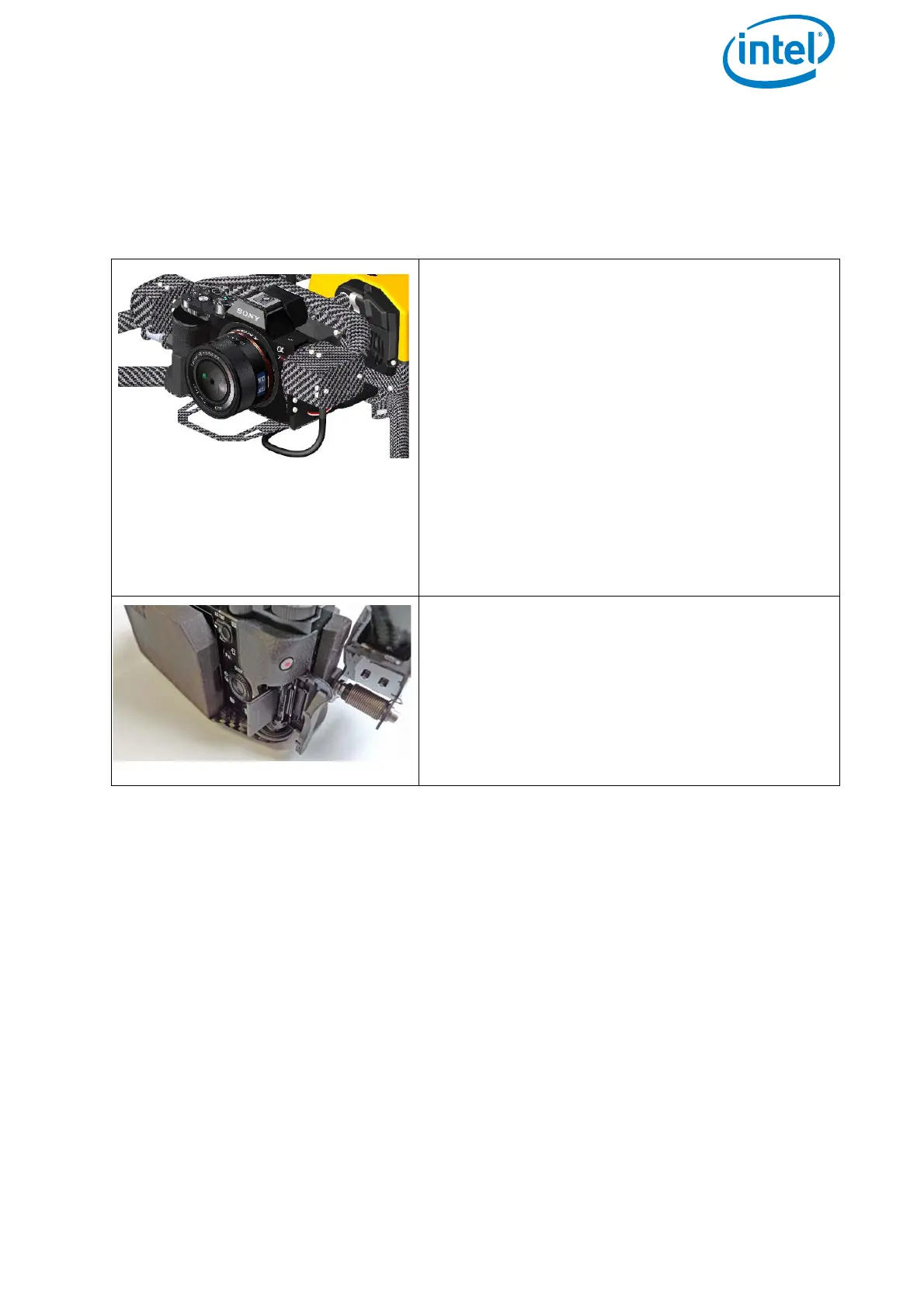

Figure 2.15: Sony Alpha 7R and SD Card Slot
Specifications:
• Sensor size: 35.90 mm x 24.00 mm
• Resolution: 36.4 Mpx (7360 x 4912 pixels)
• Lens: Sonnar® T* FE 35 mm F2.8 ZA
(SEL35F28Z)
• Weight incl. lens and gimbal: ~ 790 g.
• Approximate max. flight time: 16 min
• Suggested applications: Aerial photo-
graphy, inspection and surveying
Approved lenses:
• Sonnar® T* FE 35 mm F2.8 ZA (SEL35F28Z)
Please note that all other available full frame
lenses are too heavy and cannot be approved
Images are stored on an SD card, which is
inserted underneath a lid on the right back side
of the camera. To transfer images to the com-
puter, please use an SD card reader which is
connected to the computer.
For further information: https://esup-
port.sony.com/US/p/model-
home.pl?mdl=ILCE7R&LOC=3#/manualsTab

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
