4. STATUS DISPLAY
In this chapter, you will find a description of all possible messages and operations
using the Status Display.
4.1. STATUS DISPLAY OVERVIEW
The Status Display of the Intel® Cockpit Controller (CTR) shows all relevant information
for flying.

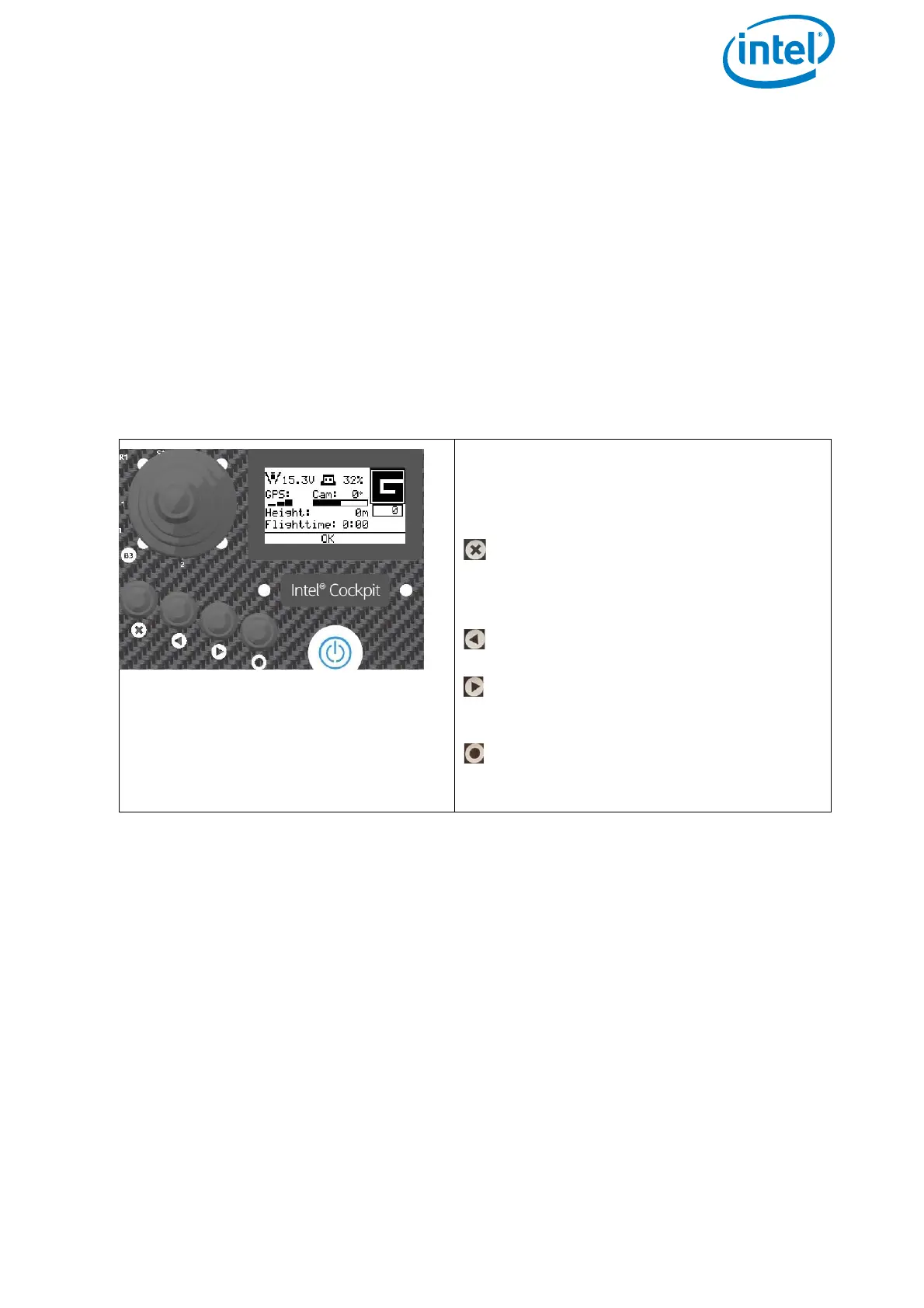

Figure 4.1: Status Display
On the Status Display you can view the
current settings and adjust specific func-
tions of the UAV. To do so, you use the
four buttons.
Escape (left side) is used to leave
menus / sub-menus and to clear func-
tions. In the following text, it is dis-
played as ESC.
With the LEFT arrow button (middle,
left side),
and the RIGHT arrow button (middle,
right side) you can scroll through
menus or alter parameters.
Enter (right side) is used to enter
menus and activate functions. In the
following text, it’s displayed as ENT.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
