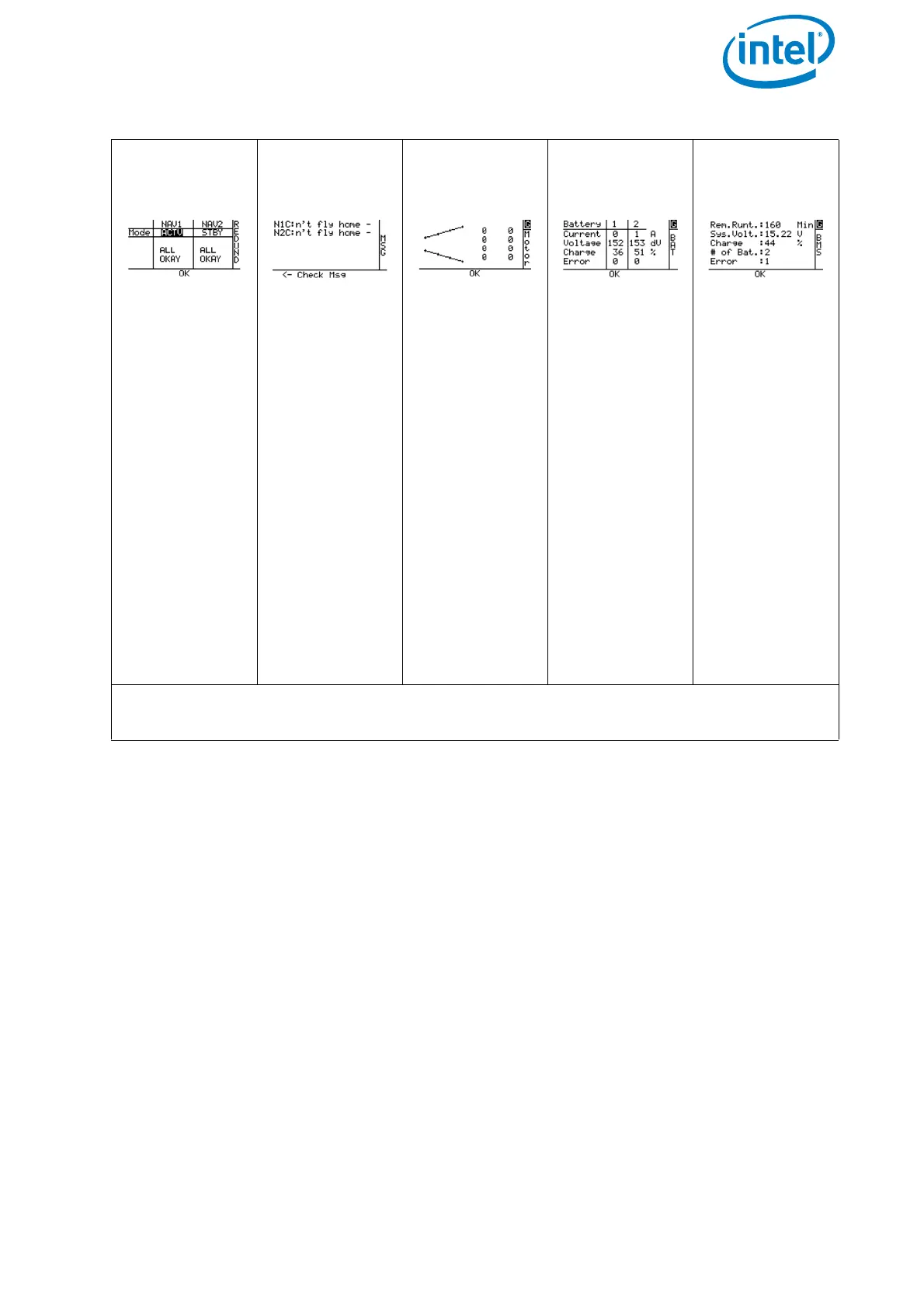

Flight control-
ler Screen
shows:
•NAV1
•NAV2
• Warnings
• Redun-
dancy
• Possible
warnings
Error Message
Screen
(optional)
shows:
• Possible
flight con-
troller (e.g.
N1C/N2C)
For system
warnings see
“AscTec Trin-
ity Control
Unit System
Warnings” on
page 156.
Motor Screen
shows:
• Graphic of
the Intel®
Falcon™ 8+
UAV with
spinning
propellers
• Speed of
each pro-
peller (as a
coefficient)
• Flight
mode
Battery Screen
shows for bat-
tery 1 and 2:
• Actual cur-
rent in
ampere (A)
•Actual sys-
tem volt-
age in
decivolt
(dV)
•Charge
state of
each bat-
tery in per-
cent
• Number of
errors
BMS Screen
shows:
• Remaining
runtime of
the UAV in
minutes
•Actual UAV
voltage
• Charge
state of the
UAV in per-
cent
• Number of
batteries
inserted
• Number of
errors
Pushing the RIGHT/LEFT arrow buttons in these screens brings you back to the Main
Screen.
Table 4.1: Status Display Menu Structure (Continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
