Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 48
2.5.5. Intel® High Resolution Imaging Payload
The Intel® High Resolution Imaging Payload consists of a Sony RX1R II camera with a
Topcon B111 GNSS receiver. When the Intel High Resolution Imaging Payload is
connected, the external Topcon receiver is used as a redundancy backup receiver for
the internal GPS receiver and for geo-referencing the images during post-processing.
The internal GPS receiver has precedence over the Topcon receiver and is used for
positioning the UAV in-flight. If for any reason the internal GPS receiver fails the
external Topcon receiver takes over.
Notes
The use of the Intel Imaging Payload requires Intel Falcon 8+ UAS firmware
version package 1.2 or higher (see “Firmware update” on page 61).

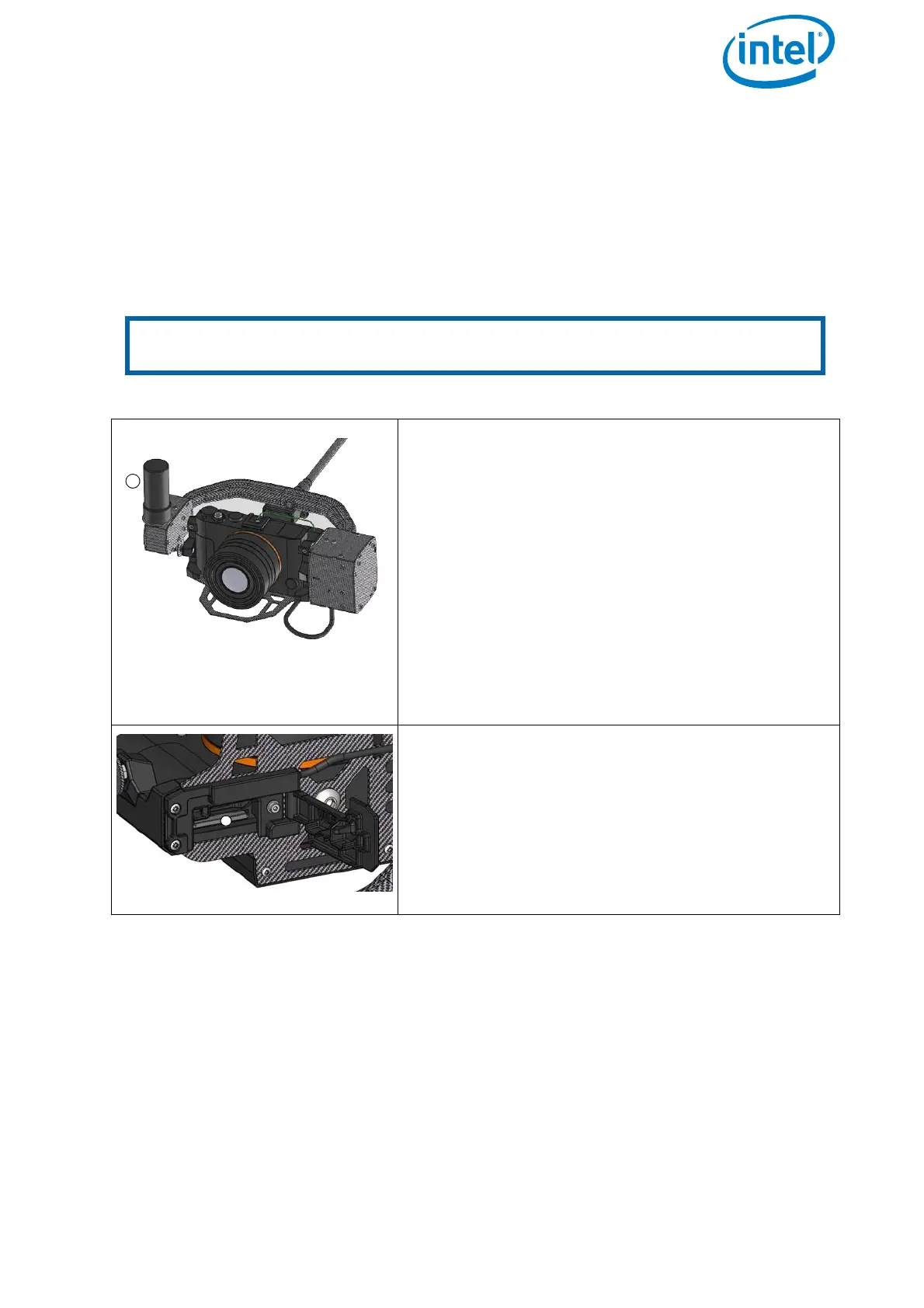

Figure 2.20: Intel® High Resolution Imaging Payload specifications
Specifications of the Sony RX1R II camera:
• Sensor size: 35.90 mm x 24.00 mm
• Resolution: 42.4 Mpx (7952 x 5304 pixels)
• Lens: ZEISS Sonnar T 35mm F2.0 single focus
lens (fixed)
• Weight incl. lens and gimbal: ~ 796 g
• Approximate maximum flight time: 16 min
• Suggested applications: Aerial photography,
inspection and surveying.
The antenna of the Topcon B111 GNSS receiver
(1) is located at the left side of the payload (front
view).
Images are stored on the SD card, which is
inserted underneath the lid on the bottom right
back side of the camera (1). To transfer images to a
computer, please use an SD card reader which is
connected to the computer.
For further information please visit:
https://esupport.sony.com/US/p/model-
home.pl?mdl=DSCRX1RM2&LOC=3#/manualsTab
1
1

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
