2.5.4. Inspection Payload
The Inspection Payload consists of two cameras: Panasonic RGB camera and infrared
(IR) camera FLIR TAU 2 640.

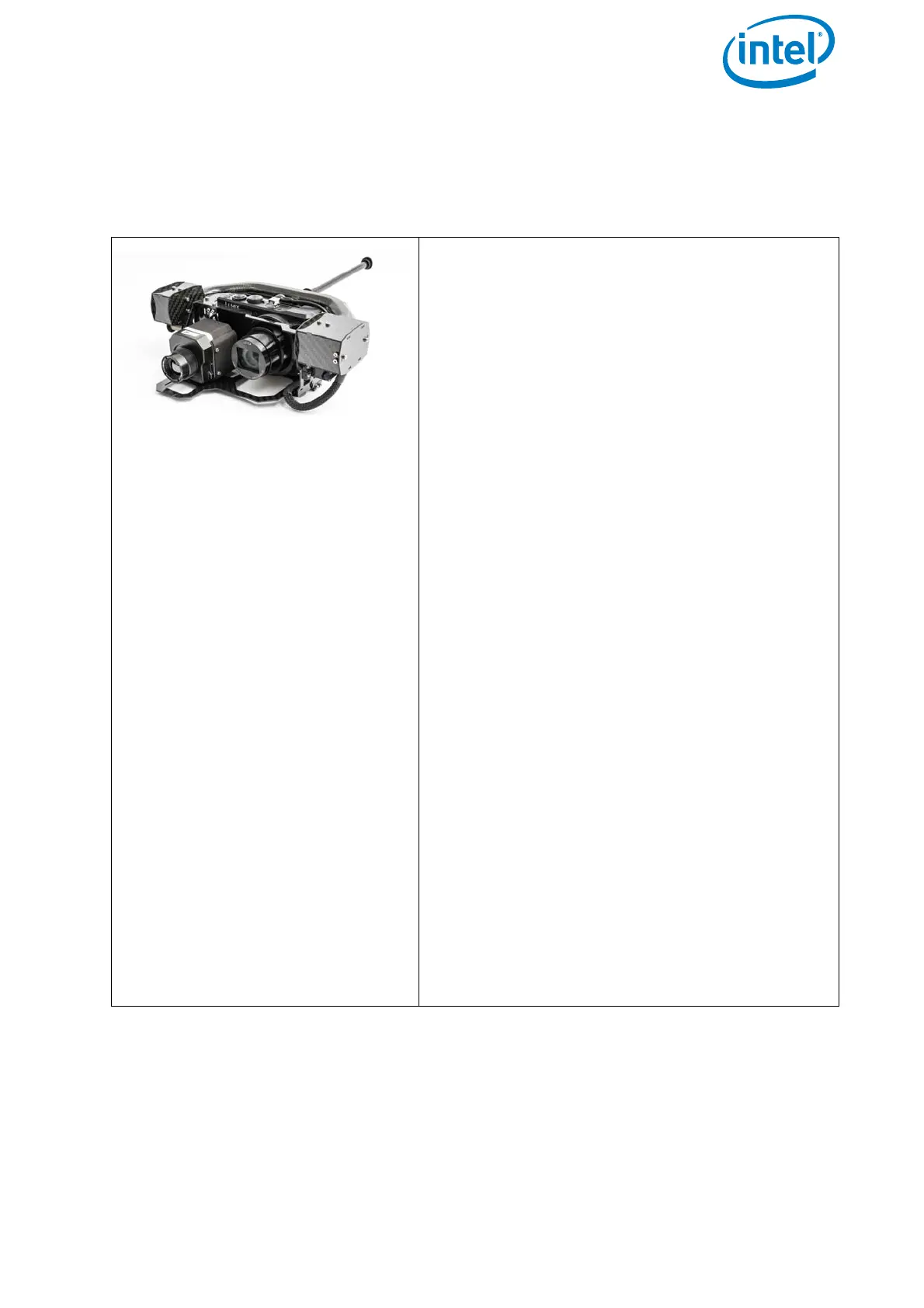

Figure 2.18: Inspection Payload
Specifications of the Panasonic RGB camera:
• Sensor size: CMOS Sensor 1/2.3”, 6.2 x 4.6
mm
• Resolution: 12.1 Mpx (4000 x 3000 pixel)
• Lens: LEICA DC VARIO-ELMAR F3,3 - 6,4 /
Multistage Iris Diaphragma (F3,3 - 8,0 (W),
F6,4 - 8,0 (T))
• Focal length: 4.3 - 129 mm (24 - 720 mm, 35
mm equiv.)
• Optical zoom: 30x
• Weight incl. lens and gimbal: ~ 550 g.
• Approximate max. flight time: 18 min
• Suggested applications: Inspection
Depending on the model of Panasonic camera,
you will find further information here:
TZ71: https://www.panasonicstore.ie/wp-con-
tent/uploads/2015/05/DMCTZ70.pdf
ZS50: ftp://ftp.panasonic.com/camera/om/
dmc-zs50_adv_om.pdf
Please note that the WiFi functionality of these
cameras is disabled for the use with the Intel®
Falcon™ 8+ UAV.
Specifications of the IR camera FLIR Tau 2 640:
• Thermal Imager: Uncooled VOx Microbo-
lometer
• Resolution: 640 × 512 pixel
• Pixel pitch: 17 μm
• Spectral band: 7.5 - 13.5 μm
• Focal length: 19 mm (~ 59 mm, 35 mm eqiv.)
Further details: http://www.flir.com/cores/dis-
play/?id=54717
