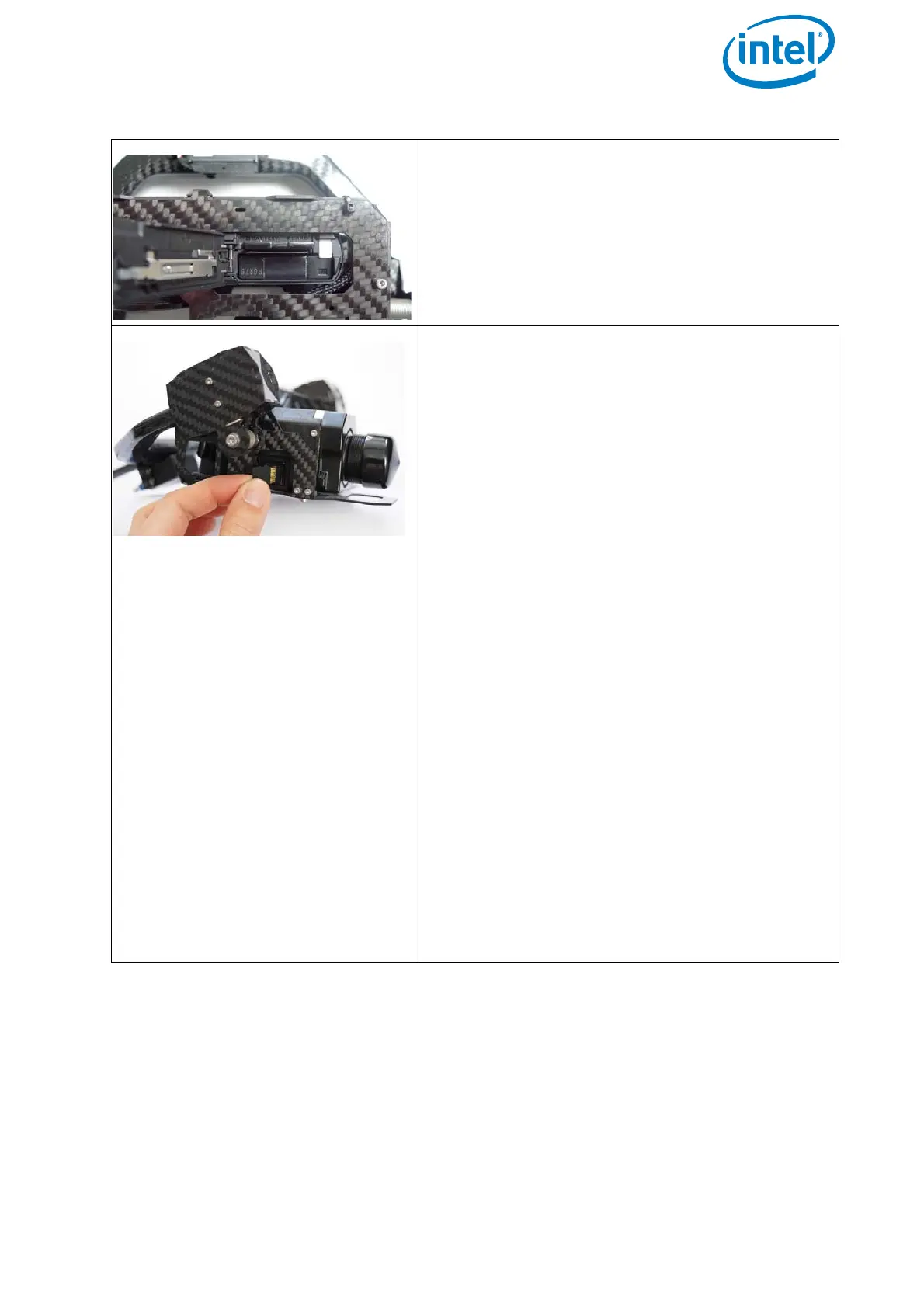

The Panasonic camera needs its own fully
charged battery to work. The battery slot can be
accessed from the bottom of the payload.
The SD card of the camera is inserted next to
the battery.
A separate charger for the Panasonic batteries
is supplied with the payload.
The FLIR Tau 2 640 camera is powered by the
Intel® Falcon™ 8+ UAV battery to save weight,
and does not need to be switched ON or OFF.
The micro SD card of the FLIR Tau is inserted at
the side of the camera, with the contacts of the
micro SD facing towards the camera lens.
Each time the Intel® Falcon™ 8+ UAV is switched
on, a new, subsequently numbered sub-folder
(FLIR0000, FLIR0001, FLIR0002...) is created on
the micro SD card. Up to 128 image files are
stored in one folder. If more than 128 images
are taken during one flight, a new sub-folder
will be created where the additional images are
stored. Before the camera can be used, the
black cap must be removed from the lens.
The images are stored in a proprietary file for-
mat .ARA. The 14-bit RAW output from the
camera is captured, which allows the displayed
temperature range to be set during post pro-
cessing. Using Thermal Editor (part of AscTec
Navigator), the RAW images can be displayed
and converted into a FLIR Tools-compatible
Radiometric JPEG file.
AscTec Navigator Software can be downloaded
from the download area: http://intel.com/Fal-
conDownloads.
A detailed manual of the software is available
here: http://intel.com/FalconManual.
Figure 2.18: Inspection Payload (continued)

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
