USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 23
2.1.3. Actively Stabilized Camera Mount (Gimbal)
The following figure describes the parts (or sub-assemblies) of the gimbal.
2.2. THE INTEL® COCKPIT CONTROLLER (CTR)
The CTR is the main control hub for the Intel® Falcon™ 8+ UAV and the attached
payloads/ cameras. It is designed to be carried and operated by one person and
displays all relevant flight information.
The communication between the CTR and the Intel® Falcon™ 8+ UAV is ensured by two
independent 2.4 GHz digital data links. The preview video is transmitted digitally on 5.8
GHz. The CTR uses the same battery type as the Intel® Falcon™ 8+ UAV. The battery is in

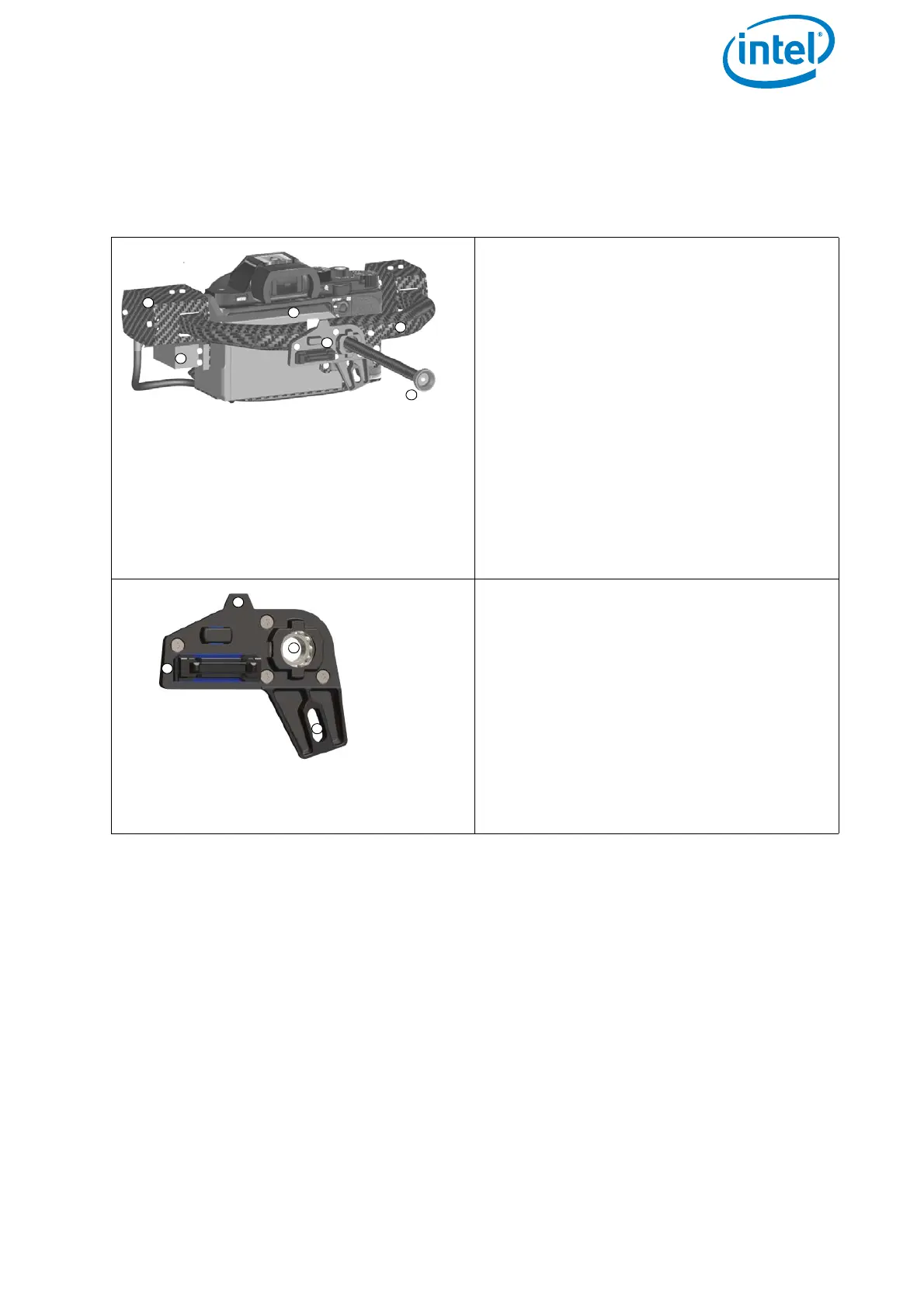

Figure 2.6: Units of the Gimbal
The actively stabilized camera mount
consists of:
(1) Circuitry for controlling the camera
(2) Payload (e. g. Sony Alpha 7R)
(3) Pitch servo
(4) Carbon fiber structure
(5) Knurled securing nut for the actively
stabilized camera mount
(6) Payload adapter (see below for
details). The payload adapter is the
connection between the camera
mount and the central unit of the
UAV. It is movable when mounted on
the rod of the camera mount and
connected by a cable.
The payload adapter (backside)
(1) Connector plug, should be connected
to the equivalent at the front side of
the UAV (see no. (2) in “Central Unit
Front View without Gimbal (Camera
Mount)” on page 21).
(2) Adapter slot for the ball link
connector of the roll servo
(3) Releasing clip
(4) Hole for the camera mount’s carbon
rod
1
2
3
4
5
6
3
1
2
4

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
