Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 18
2. DESCRIPTION OF THE SYSTEM
In this chapter, you find a description of the whole system and its components:
• The Intel® Falcon™ 8+ UAV
• The Intel® Cockpit Controller (CTR)
• Payloads/Cameras
• The Intel® Powerpack Batteries
2.1. THE INTEL® FALCON™ 8+ UAV
The following section describes the single parts of the Intel® Falcon™ 8+ UAV.

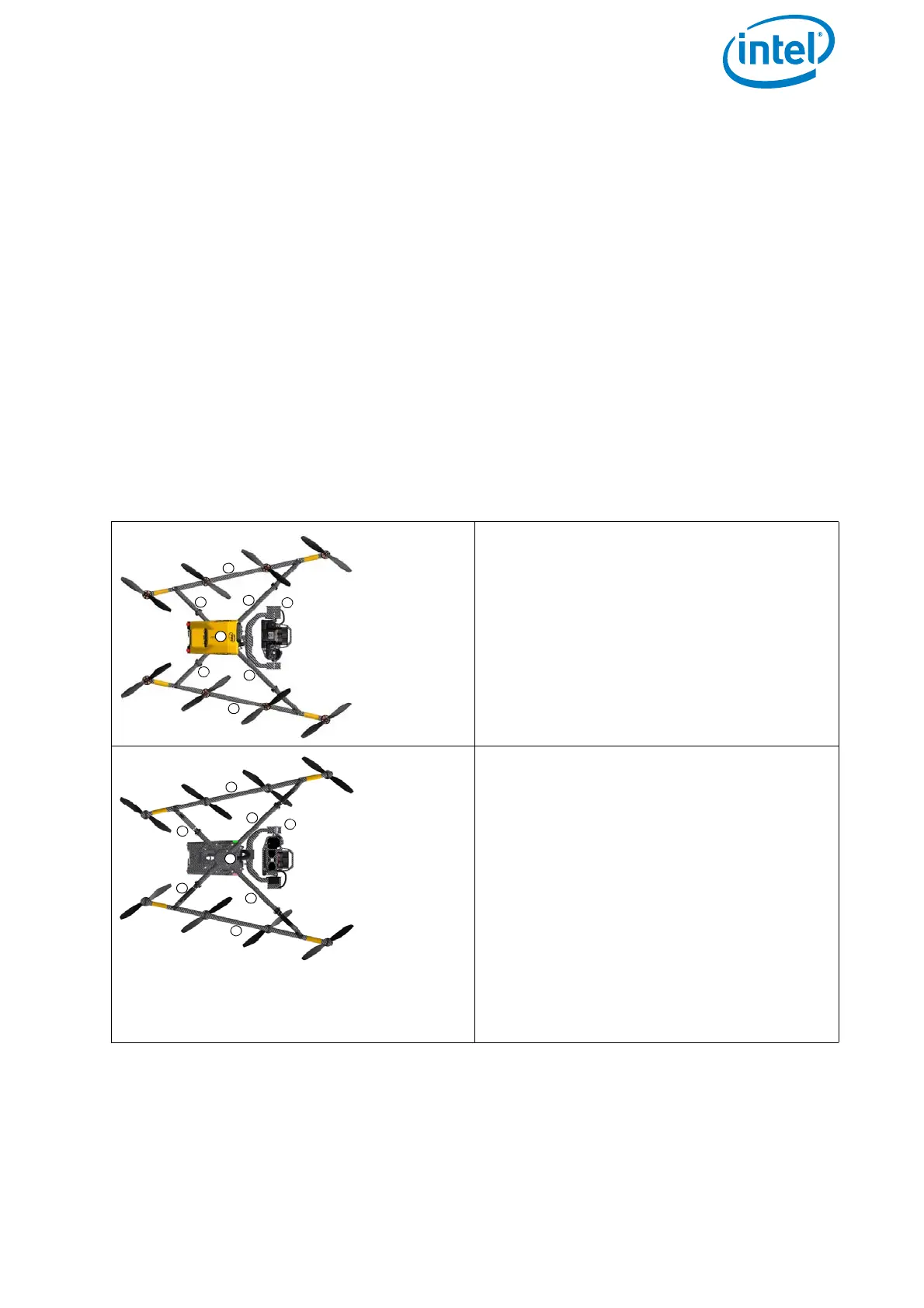

Figure 2.1: The Intel® Falcon™ 8+ UAV Components
The Intel® Falcon™ 8+ UAV consists of
several components:
(1) Actively stabilized camera mount
(gimbal) with camera
(2) Motor rails
(3) Central unit
(4) Carbon cross
The Intel® Falcon™ 8+ UAV bottom view:
(1) Actively stabilized camera mount with
camera
(2) Motor rails
(3) Center cross piece with LEDs
(4) Carbon cross
(5) Landing feet
For orientation reasons, the UAV has
three LED position lights:
• white at the bottom
• green on the right side
• red on the left side
1
2
2
3
4
4
4
4
1
2
2
3
4
4
5
5

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
