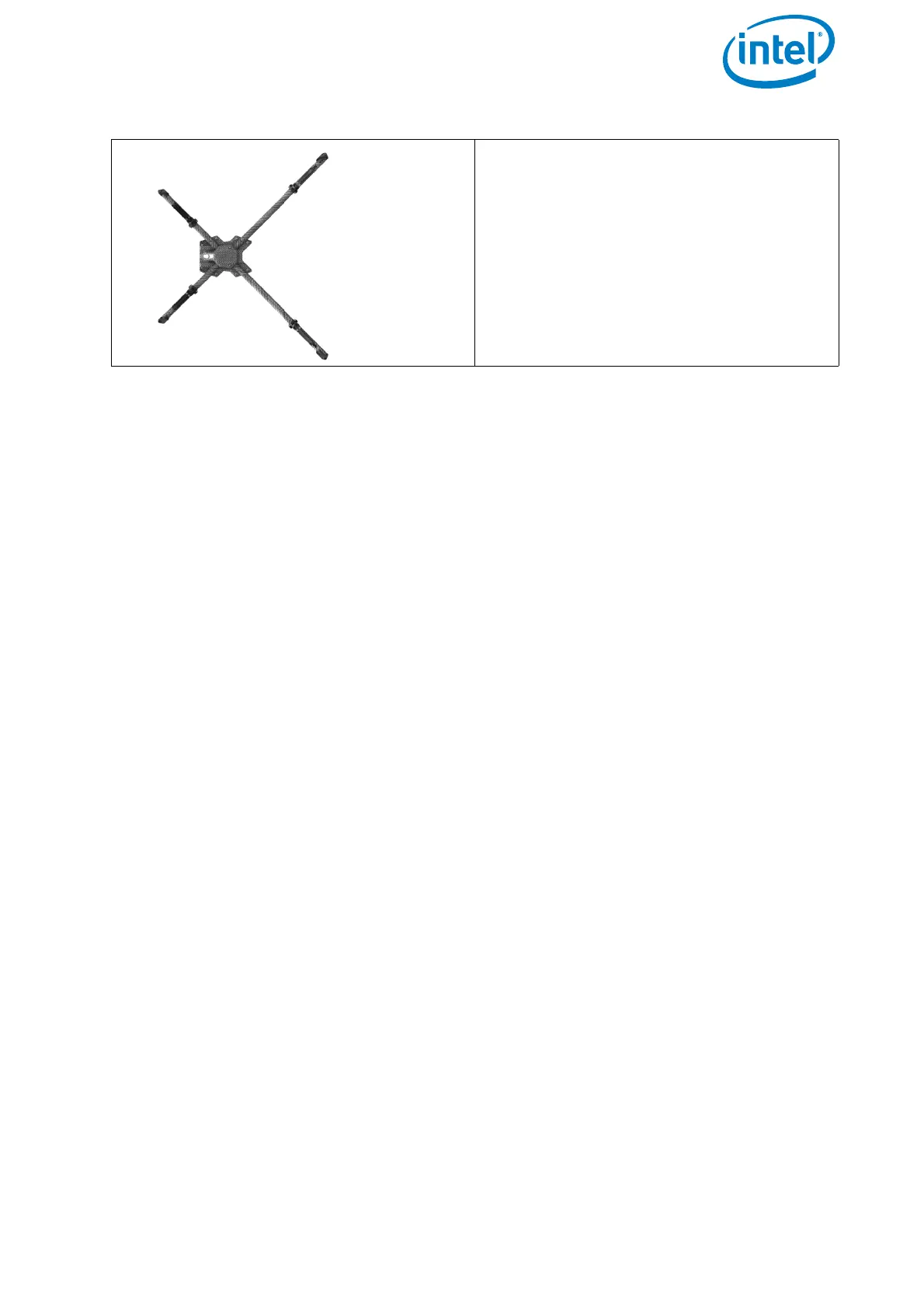

The Intel® Falcon™ 8+ UAV bottom view,
Carbon Cross with center cross piece,
antenna arrangement:
The data link antennas (2.4 GHz) as well
as the video link antennas (5.8 GHz) are
integrated into the landing feet.
They are diagonally arranged as shown
in the image to the left.
Figure 2.1: The Intel® Falcon™ 8+ UAV Components (continued)
