3.9.3. In-Flight
During the flight, all relevant telemetry information is presented on the Main Screen of
the Status Display of the CTR. From top to bottom:
Further details regarding the Status Display and its options can be found in “STATUS
DISPLAY” on page 166.
3.9.4. General Operating Tips
Please keep in mind: The UAV is not equipped with a sense and avoid system. The
operator is responsible for seeing and avoiding all traffic, persons, structures, and
obstacles.
We recommend two-person operations (pilot and observer). All sense and avoid is
done by the pilot and observer.
Try to avoid situations such as:
• Strong wind or turbulences
• Interference or lost data links
• Weak or shadowed GPS signal (“Shadowing” on page 123)

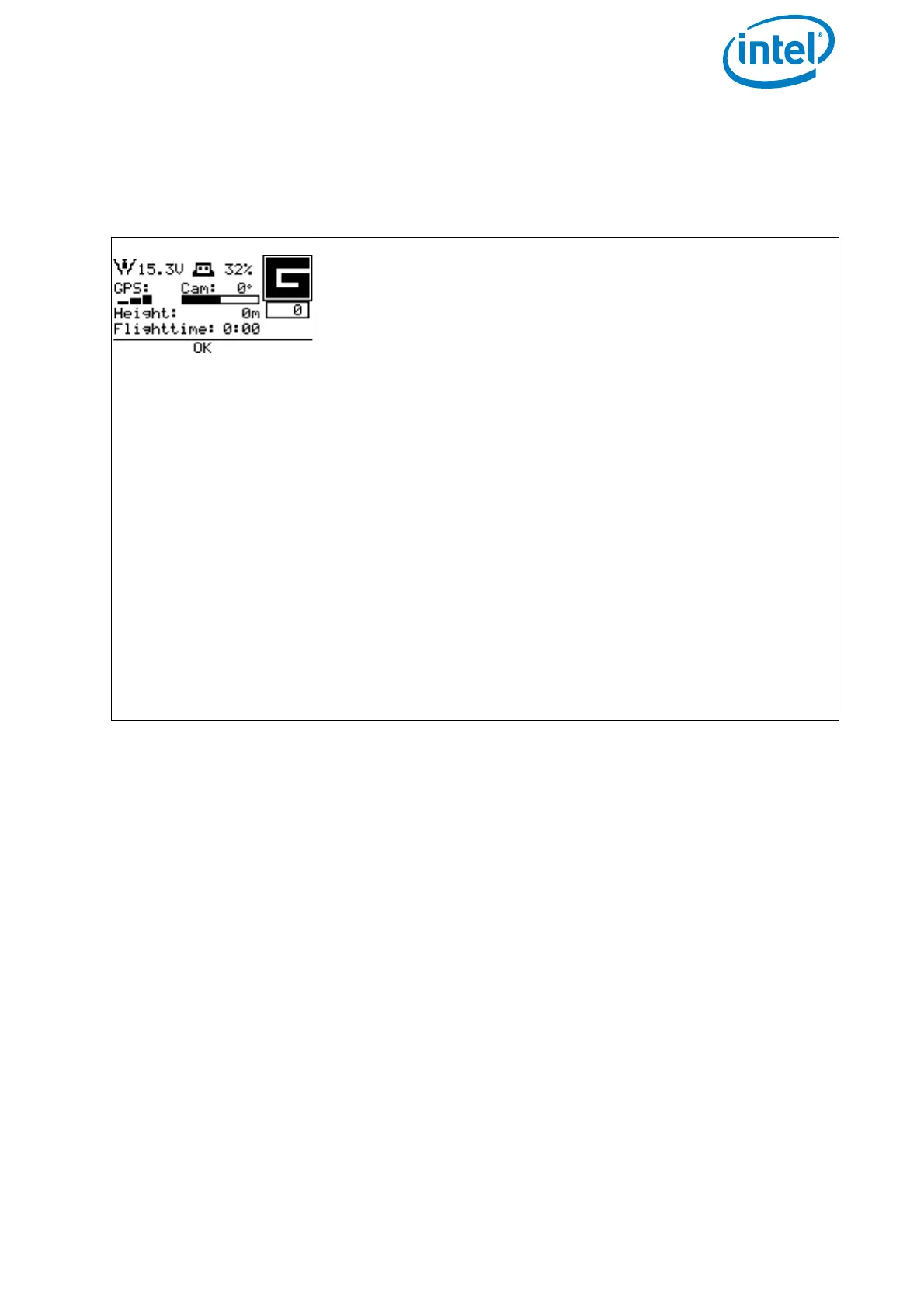

Figure 3.20: Flight information on the Main Screen of the Status Display
From top to bottom:
• Battery voltage of the UAV:
15.3V
• Remaining battery capacity of the CTR in percent: 32%
• Letter G (= GPS-Mode), H (= Height-Mode) or M (= Man-
ual-Mode) indicating the active flight mode
• 0: Counter of triggers sent to the camera. If no trigger
has been sent yet, 0 is displayed. Display can vary
depending on payload. For further details see “Inspec-
tion Payload” on page 43.
• GPS: GPS quality up to 5 bars
• Cam: Camera tilt level: 0°
• Height: Current height: 0m
• Flighttime: starts counting when the motors are
started
• Bottom line OK. If there are any system warnings, the
bottom line will display <- Check Msg. Push the
arrow LEFT button until the warning message is dis-
played. More regarding warning messages in “WARN-
INGS” on page 143.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
