2.6. THE INTEL® POWERPACK BATTERIES
The Intel® Powerpack batteries power the Intel® Falcon™ 8+ UAV and the Intel® Cockpit
Controller (CTR). The battery features a One-Button/Five-LEDs user interface, an
intelligent Battery Management System (BMS), automatic balancing, storage mode and
charging. It provides direct access to general information of the battery; for example,
the remaining battery life, which is shown by the five LEDs (see “Operating The BMS
Menu” on page 74).
The BMS safely monitors the status of each of the four cells of the battery to ensure a
safe charging process. Its cell balancing technology assures the consistency in the
performance of the batteries.
The following sections give you information about the Intel® Powerpack batteries you
need for the Intel® Falcon™ 8+ UAV and the CTR.
For charging an Intel® Powerpack Battery you need one of the deliverable power
supply units.
On the front panel of the battery there is a sticker. An area is marked by a dot
surrounded by a circle (see figure below). This area has the function of a button.
Table 2.8: Technical Specifications of the Battery
BATTERY
TYPE
ELECTRIC
CHARGE
[MAH]
VOLTAGE
STANDARD
[V]
VOLTAGE
FULLY
CHARGED
[V]
VOLTAGE
LOWEST
RECOMMENDED
(UNDER LOAD) [V]
NO. OF
CELLS
Intel®
Powerpack™
Battery
4000 14.8 16.8 14.0 4

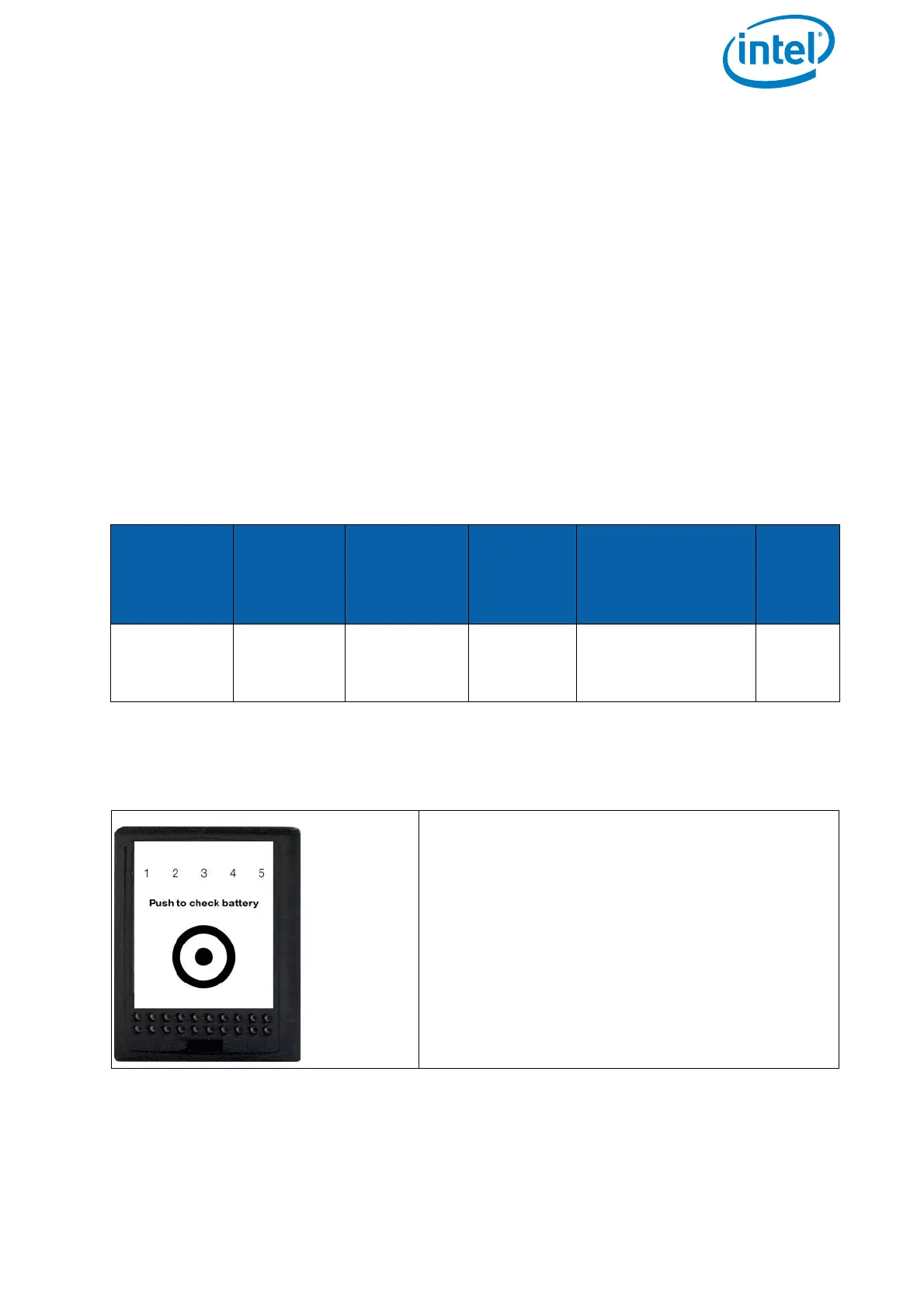

Figure 2.31: LED description
The LEDs are integrated in the front panel of
the battery.
LED number / color from left to right:
•1 / red
•2 / yellow
• 3 / green
• 4 / green
• 5 / green

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
