3.12.6. AscTec Trinity Control Unit System Warnings
Whenever there is a system warning, (shown as SYSTEM ERROR in the notification
area on the touchscreen tablet), the bottom line of the Status Display will show
<- Check Msg.
The table below shows all possible warnings, their meaning, and possibilities for
resolving them. All messages always have one of the prefixes N1U / N1C / N2U / N2C,
meaning:
• N1 = Navigational processor 1
• N2 = Navigational processor 2
• U = message concerning the user - might be application critical but not flight
critical
• C = message concerning the core - flight critical!

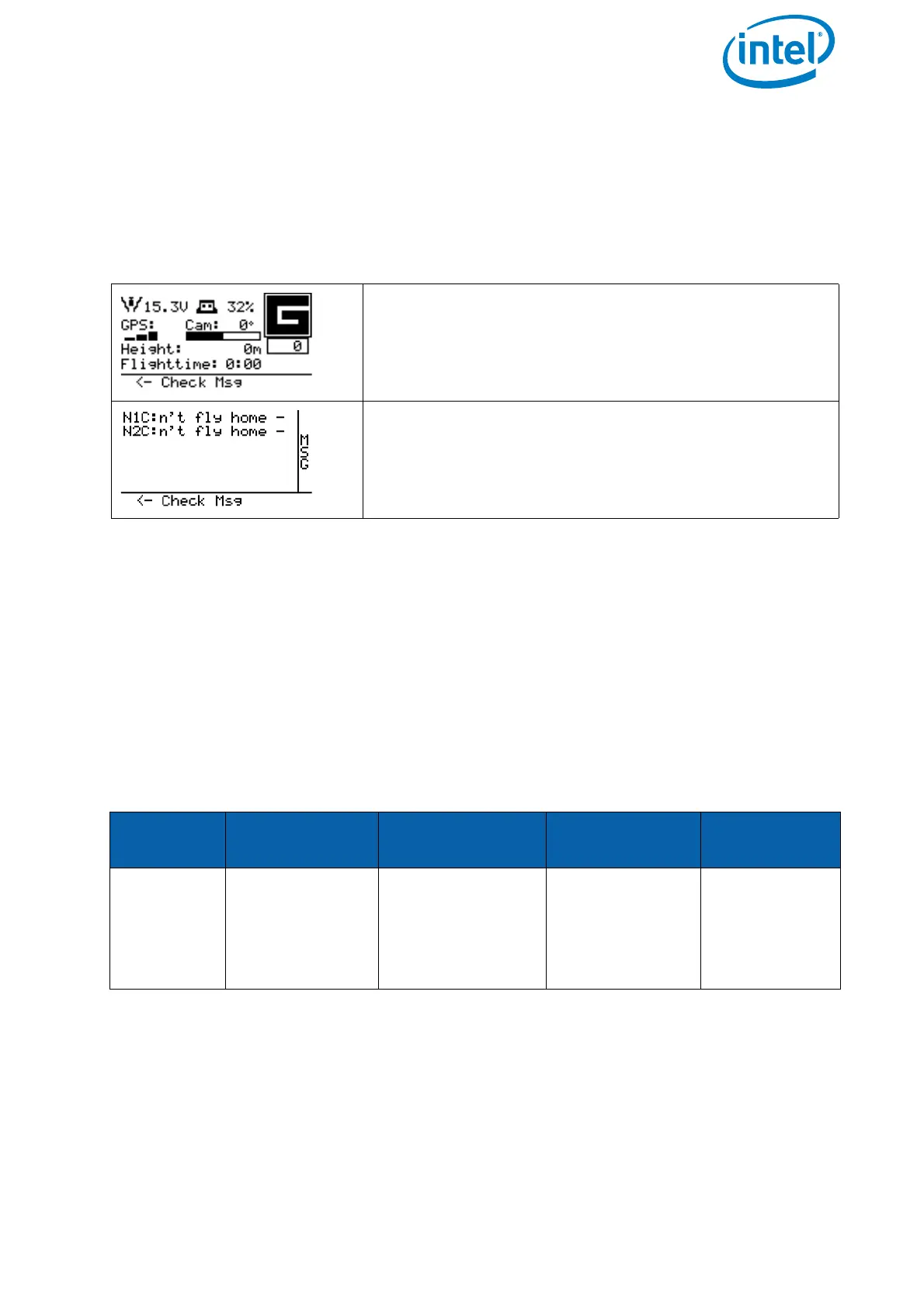

Figure 3.22: System warnings
If <- Check Msg is shown in the status line there is
no acoustic warning. In this case push the arrow LEFT
button five times (when starting on the Main Screen of
the Status Display).
The Error Message Screen (shown on the left) is
opened, and the details are presented.
Table 3.13: AscTec Trinity Control Unit system warnings
CATEGOR
Y
WARNING/
ERROR
MEANING CONSEQUENC
E
POSSIBLE
FIXES
License
chip
UUID chip
mal-
function!
UUID chip not
functional (can-
not be installed /
not programmed
/ defective).
Serial Number
is 31000
(default), no
flags can be
stored.
Contact sup-
port.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
