4.1.2. The Main Information Screens
The following section describes the nine main information screens of the Status
Display in detail.
Figure 4.2: Main Information Screens

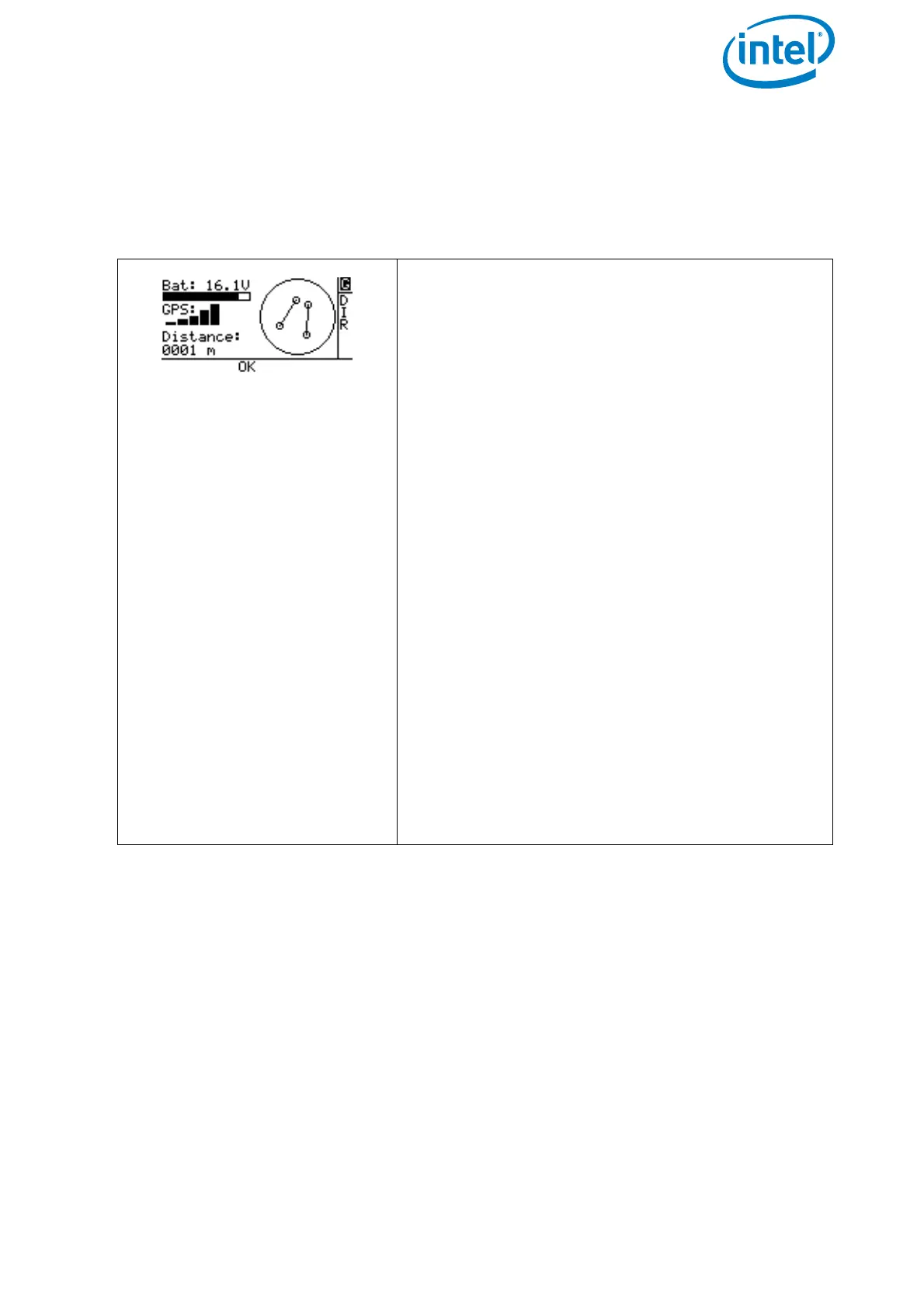

Orientation Screen
Displays the UAV orientation regarding its starting
position. The displayed V-shape of the UAV will
turn respectively when the heading of the Intel®
Falcon™ 8+ UAV is changed. This can be of help
when the orientation of the UAV is difficult to see
in low contrast situations such as when flying in
front of dark trees. The screen shows the follow-
ing information:
Bat: 16.1V = Voltage level of the Intel® Fal-
con™ 8+ UAV battery. This is the same informa-
tion as on the Main Screen.
G = Flight Mode. This is the same information as
on the Main Screen.
GPS = Quality indicator of the GPS signal. This is
the same information as on the Main Screen.
Distance = Direct line of sight distance
between UAV and Home Position, and only visible
when airborne at a distance of at least 10 m.
Graphical display of UAV orientation = Orienta-
tion of the UAV regarding the Home Position, and
only visible when airborne at a distance of at least
10 m.
OK = Status line. Same information as on the Main
Screen.

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
