Intel FALCON 8+ User Manual

USER MANUAL
INTEL® FALCON™ 8+ UAS
© 2018 Intel Corporation. All rights reserved 210
6.1.6. Updating a payload from an AscTec Falcon 8 UAV to an
Intel Falcon 8+ UAV
The following payloads for the AscTec Falcon 8 UAV can be updated to become
compatible with the Intel Falcon 8+ UAV:
• Sony Alpha 7R
• Inspection Payload with the Panasonic Lumix DMC-TZ71
The update requires three steps:
1. Update the hardware with a payload adapter.
Please refer to the section “Exchanging a payload adapter” on page 207 for
instructions.
2. Perform a payload calibration.
When the payload is first connected, there will be two warning messages,
No
calib on payload found
and Payload EEPROM compromised!. Please
do a payload calibration by performing all steps described in chapter “Payload
calibration” on page 36. This will resolve the warning
No calib on payload
found
.
3. Update the eeprom flash of the payload.
Contact the Intel support team and provide the following information:
• Payload type (Sony Alpha 7R or Inspection Payload TZ71)
4. Slide the back plate assembly onto the rod of
the payload.
5. Align the ribbon cable correctly in the gap of
the front plate.
6. Connect the 10 pin wire connector.
7. Attach the back plate assembly to the front
plate assembly.
Make sure not to apply force to the servo
motor.
8. Attach and tighten the 4 screws C2.2x6.5 mm
TX, SK with a T6 torx screw driver.

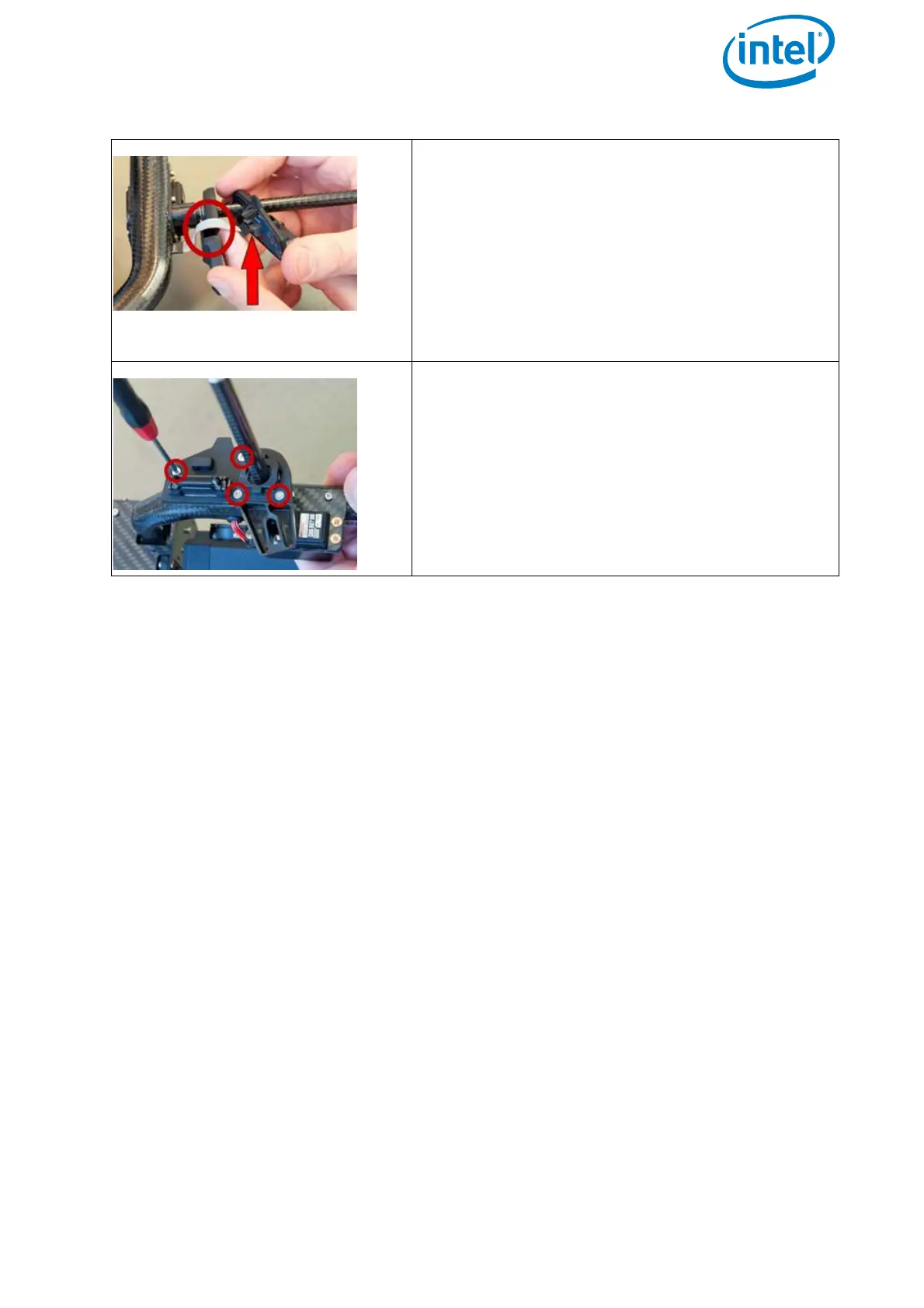

Figure 6.8: Attaching a new payload adapter

Intel FALCON 8+ Specifications

General

Type	Octocopter
Easy to use	Yes
Product color	Black, Yellow
Maximum speed	16 m/s
Frequency band	2.4 GHz
Number of rotors	8 rotors
Maximum flight time	26 min
Maximum weight capacity	2.8 kg
Maximum operating distance	1000 m
Maximum pitch angular velocity	50 °/sec
Operating temperature (T-T)	-5 - 40 °C
Transmitter power consumption	100 mW
Built-in processor	-
Moving control functions	Backward, Forward, Turn left, Turn right, Upward

Weight and Dimensions

Depth	817 mm
Width	768 mm
Height	160 mm
Weight	1200 g
Rotor diameter	203.2 mm
